Home > Instruments & Meters > Test Instrument > Test Machine > Adjustable Drop Weight Impact Machine for PVC-C/PP/PE Pipe Toughness Testing, ISO/BS EN Certified

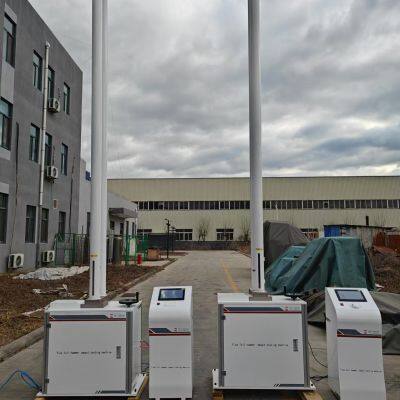

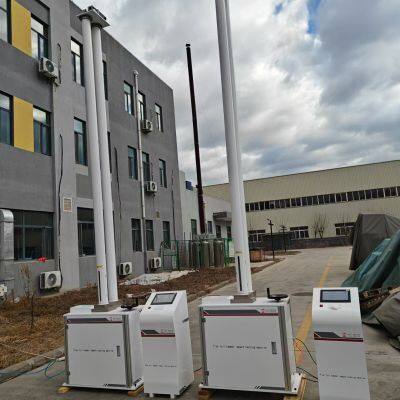

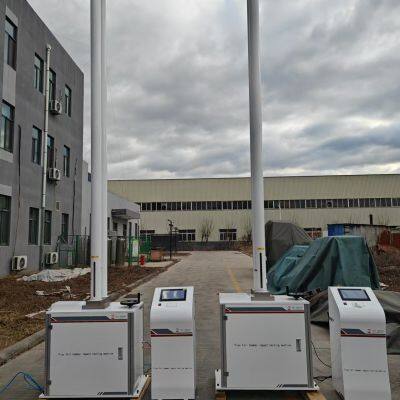

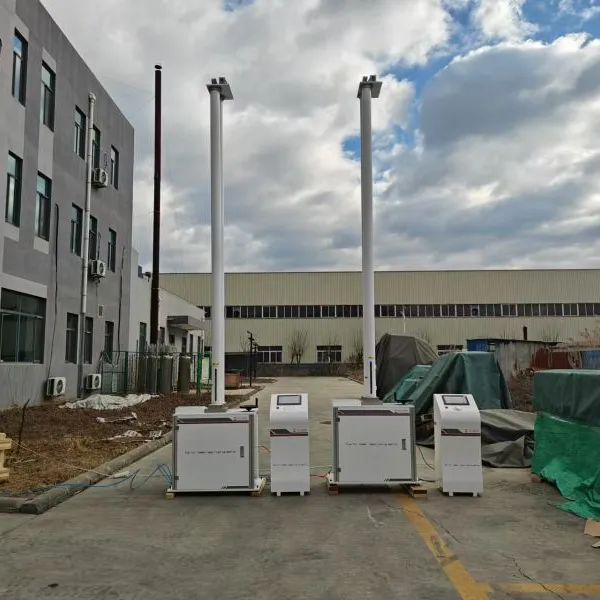

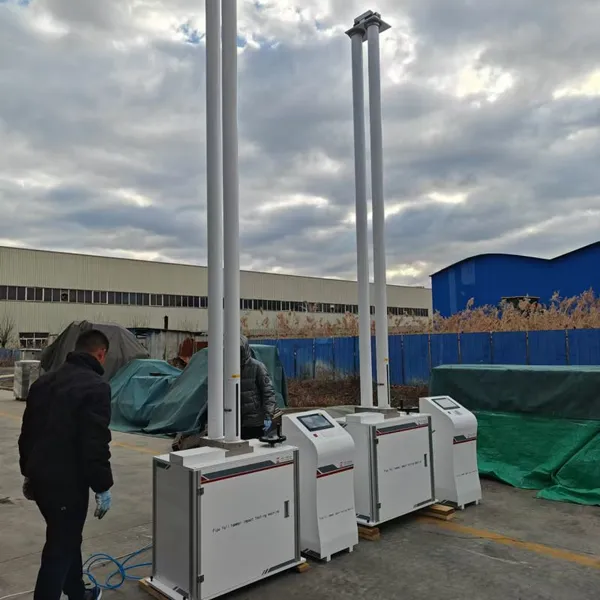

Adjustable Drop Weight Impact Machine for PVC-C/PP/PE Pipe Toughness Testing, ISO/BS EN Certified
US$ 4599 - 8900
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
1
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Drop Hammer Impact Tester for PVC-U/PP/PE Pipe Materials, Meets ISO 4422 & EN 744US$ 4599 - 8900MOQ: 1 Set -
Customizable Pipe Drop Weight Impact Tester for PVC-U/PE/PP Pipes, ISO 4422 & BS EN 1411 ComplianceUS$ 4599 - 8900MOQ: 1 Set
-
JBS-300B Digital Display Pendulum Charpy Impact Tester Machine 150J/300J IP65 Protection 2.5KW Power High Accuracy 1 YearUS$ 34989.50 - 35689.29MOQ: 1 Set
-
250j 500j Metal Material Motorized Pendulum Impact Testing MachineUS$ 35339.40 - 36738.98MOQ: 1 Set
-
JB300B/500B Motorized Charpy Izod Pendulum Metal Impact Tester Impact Testing Machine 300J/500JUS$ 22974.11 - 24373.69MOQ: 1 Set
Accuracy
1
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
1
Protection Class
/
Voltage
380 V
warranty
1 Year
Maximum impact energy(j)
300j
ambient temperature
10℃35℃
Hammer weight
0.250- 15.000kg
Working bench stroke
0-400mm
Specimen diameter
Dia. 16- 400mm(more big is available)
Radius of hammer head
d25, d90 or R5mm, R10mm, R30mm, R50mm
Deviation
≤ 2mm
Pallet type
120 °
Power supply
380VAC ± 10% (three-phase four-wire)
Display type
Digital display
Product Description
Application
It is suitable for the determination of impact toughness of PVC-U, PVC-C pipe, PP pipe, PE pipe, plastic pipe for underground communication pipe, etc. It is an ideal test instrument for testing, production units, building materials industry and scientific research units. The control part of the test machine adopts PLC control, touch screen operation display, high degree of automation, digital preset and display impact height, lift hammer and drop hammer; anti-secondary impact adopts pneumatic transmission secondary device, and the impact capture rate is 100%. With personal safety automatic protection device (sample room door safety protection, anti-shock safety protection, etc.). The instrument is simple, safe, reliable and beautiful in appearance, and is exported to Europe and the United States and other countries.
Standard& features
It meets the technical requirements of the industry standard JB/T9389 ,and meets the test methods of GB/T14152, GB/T10002.1, GB/T5836.1, GB/T13664, GB/T16800, ISO4422, ISO3127, BSEN17141, BSEN .
Technical Parameter
Model | HST-6300 |
Maximum impact energy(j) | 300j |
ambient temperature: | 10℃~35℃ |
Hammer weight | 0.250— 15.000kg |
Working bench stroke | 0— 400mm |
Specimen diameter | φ 16— φ 400mm(more big is available) |
Radius of hammer head | d25, d90 or R5mm, R10mm, R30mm, R50mm |
Impact height | 50-2000mm indicate that the error does not exceed ± 2mm |
Deviation between impact center and fixture center | ≤ 2mm |
Pallet type: | 120 ° |
Power supply | 380VAC ± 10% (three-phase four-wire) |
Display type | Digital display |
