Home > Instruments & Meters > Test Instrument > Test Machine > VU-2Y Metal Impact Charpy V Notch Broaching Machine
US$ 1900 - 2200
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12 Months
Accuracy:
class1
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DWC-100T for Test Equipment With -100c Metal Impact for Specimen 1-Year Warranty 220V Compressor Cooling ChamberUS$ 1200 - 1599MOQ: 1 Set -
DWTT 30000J Pipeline Steel Drop Ball Impact Testing Machine Pipeline Steel Drop Ball Impact TesterUS$ 45000 - 50000MOQ: 1 Set
-
DWTT 20000J Pipeline Steel Drop Ball Impact Testing Machine Pipeline Steel Drop Ball Impact TesterUS$ 45000 - 50000MOQ: 1 Set
-
HST JBW-500XJ 250J 500J Computer Automatic Metal Pendulum Izod Charpy Impact Testing MachineUS$ 7200 - 8000MOQ: 1 Set
-
6000J Drop Weight Machine for Brittle Fracture Testing in Ferritic Cast/Forged SteelsUS$ 202939.10 - 272918.10MOQ: 1 Set
Warranty
12 Months
Accuracy
class1
brand name
HST
place of origin
Shandong, China
Application
Impact Testing, broach impact sample
customized support
OEM, ODM, OBM
power
380v
Protection Class
IP55
Voltage
220 V, 380 V
warranty
3 years
Product name

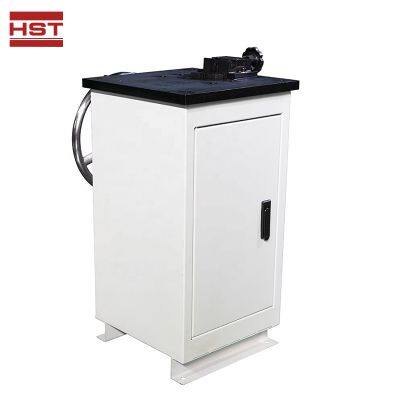

VU-2Y Metal Impact Charpy V Notch Broaching Machine
Shape of sample gap
v, u
sample size
10*10*55mm
Broach moving distance
350MM
Broaching speed
2.5m/min
Motor power
400w
power supply
380, 220V
Power
Hydraulic
Product Description
1. Application
The machine is special processing equipment "metal Charpy notched impact test method" in the impact of the sample produced V-and U-requirements and developed according to GB / T229-2007, fully meet GB229-2007, ASTM, E23-02a, indicators specified in the standard EN10045, ISO148, ISO083 and so on.
2.Test standard
GB / T229-2007, GB229-2007, ASTM, E23-02a, EN10045, ISO148, ISO083
3.Descriptions:

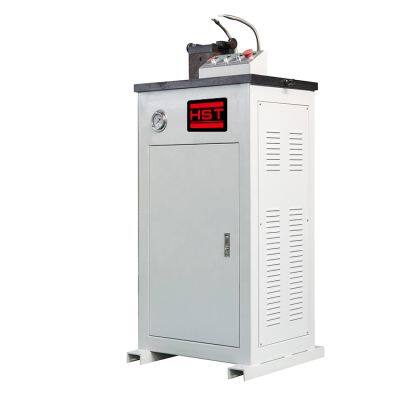

The machine consists of working parts, hydraulic drive parts, electrical control, lubrication and cooling section, and other auxiliary section. Random configuration 2mm V type and 2mm U type broaches, a notch forming, one time can successfully draw two standard notch, broaches the use of special materials, special technology precision manufacturing, high hardness, wear resistance, long service life.
Shape of sample notch | 2 mm V type,2 mm U type， (U 3 mm, U 5 mm is optional ) |
Sample size | (10, 7.5, 5 mm) x 10 mm x 55 mm |
Cutting mode | Hydraulic |
Journey of broach | V2, U2, U3 350mm; U5 380mm |
Broaching Speed | 2.5 m/min |
Broach material | W18 Cr4V |
Power supply | 220V 60Hz 400W |
Max. Dimension | 660x500x1240mm |
Weight | 200kg |
