Home > Instruments & Meters > Test Instrument > Test Machine > PWS-500 10 Ton 20ton 50ton 100ton CTOD Dynamic Static Fatigue Tester Testing Machine

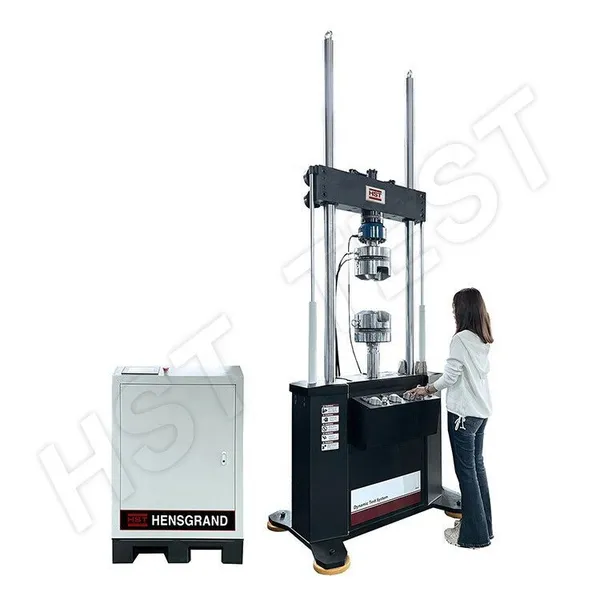

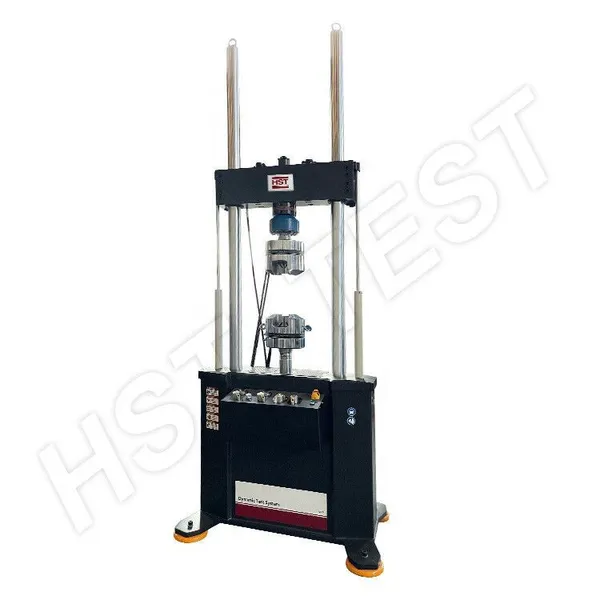

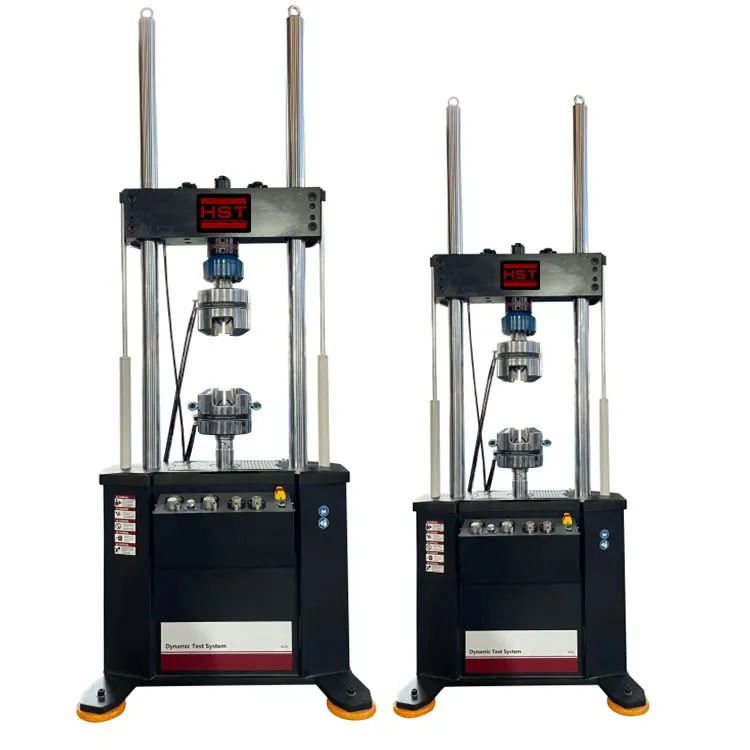

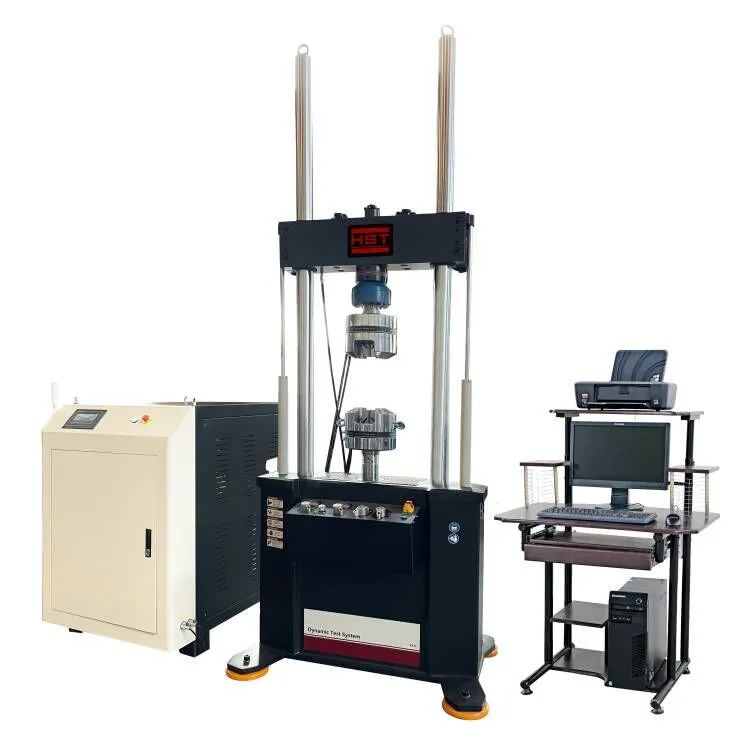

PWS-500 10 Ton 20ton 50ton 100ton CTOD Dynamic Static Fatigue Tester Testing Machine
US$ 125962.20
1 - 2 Set
US$ 104968.50
≥3 Set
Key Specifications
Get Latest Price
Warranty:
1 Year
brand name:
HST
place of origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M6 M20 Computer Controlled High Strength Bolt Torque Strength Testing MachineUS$ 7000 - 10000MOQ: 1 Set -
HST DPL1000 Electronic Static Testing and Dynamic Testing Machine Fatigue Testing MachineUS$ 979706.00 - 1049685.00MOQ: 1 Set
-
HST-P250 Double Columns 25t Hydraulic Fatigue Dynamic Testing MachineUS$ 69979.00MOQ: 1 Set
-
High Temperature and High Pressure Corrosion Tester High Temperature Gas Corrosion Testing MachineUS$ 69979.00MOQ: 1 Set
-
PWS-500 10 Ton 20ton 50ton 100ton 10hz, 15hZ Dynamic Static Universal Fatigue Tester Testing MachineUS$ 55983.20 - 104968.50MOQ: 1 Set
Warranty
1 Year
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
Hydraulic
warranty
1 Year
model number
PWS-500
Load Capacity(kN)
500,100,250,200
Certificate
CE
Range Of Frequency
0.1~15Hz / 20Hz / 50Hz
Stroke of Piston(mm)
±50
Power
380V three phase
Material
Metal
Measuring range
40-1000KN
Name
Fatigue testing machine
Standard
ISO ASTM
HST HENSGRAND PWS-1000 1000KN utm machine price dynamic fatigue testing machine
|
Model |
HWS-50 |
HWS-100 |
HWS-200 |
HWS-250 |
|
|
Load Capacity(kN)
|
Static
|
50 |
100 |
200 |
250 |
|
1.1 |
Dynamic |
±40 |
±80 |
±160 |
±160 |
|
Measurement
Accuracy
|
Load
|
±1.0% of Reading |
|||
|
1.2 |
Displacement |
±1.0% FS of Each File |
|||
|
1.3 |
Deformation |
±1.0% of Reading |
|||
|
Range Of Frequency
|
0.1~15Hz / 20Hz / 50Hz |
||||
|
Stroke of Piston(mm) |
±50 |
±50 |
±75 |
±75 |
|
|
Distance Between Columns(mm)
|
500 |
565 |
700 |
700 |
|
|
Distance Between Grips(mm)
|
50~600 |
||||
|
Specification of constant voltage servo pump station |
flow≥37L/min, 21Mpa, 380V three phase |
||||
|
|
|
|
|
Send Inquiry to This Supplier
1Yr
Business Type
Manufacturer
Year Established
2009
Factory Size
1,000-3,000 square meters
Annual Export Value
US$10 Million - US$50 Million
