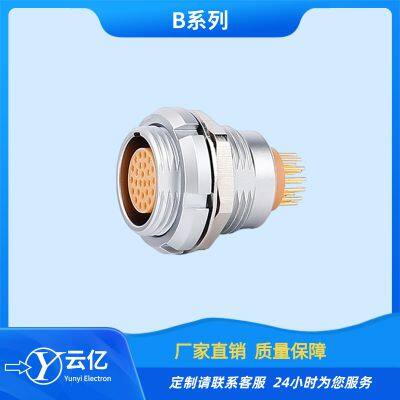

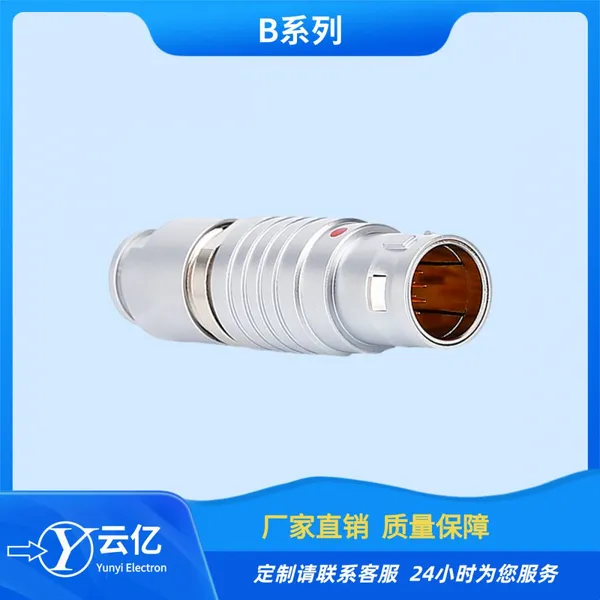

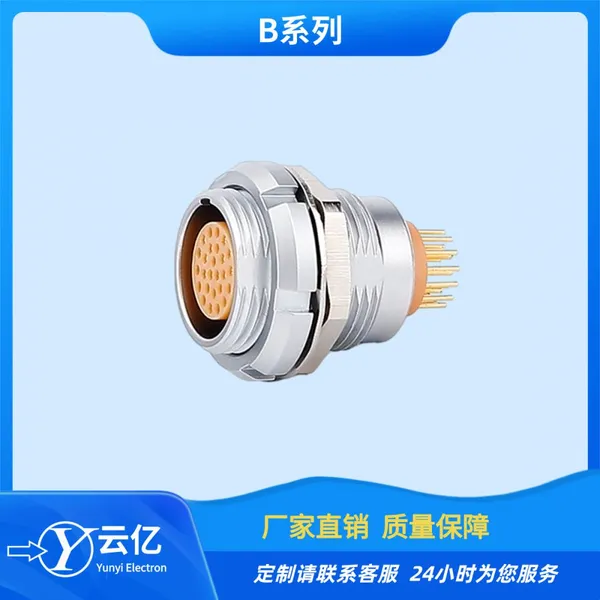

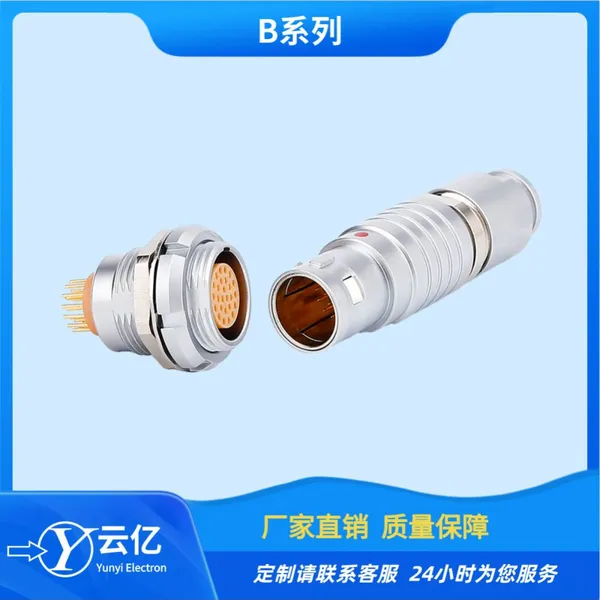

Introduction to B-series connectors
The B series is a circular push-pull self-locking connector that meets ergonomic requirements, is modular, sturdy, durable, and reliable. It uses an elastic self-locking device and can be used for applications that require quick and safe insertion and removal of self-locking. This series of products is an ideal choice for testing, measuring, inspection instruments, medical equipment, scientific research, and audio/video applications. Modular configuration mainly includes various high-density multi-core or mixed needle core configurations. The types of needle cores can be welding needle cores, crimping needle cores, PCB straight needle cores, or angled needle cores. The types of needle cores also include fiber optic, coaxial, thermocouple, air path, jet, and high-voltage signal. The multi positioning pin system can achieve high contact density and prevent mixed insertion.
Product Features
Quick push-pull self-locking system;
Welding, crimping, and printed board type;
Straight, 90 ° angled;
Multiple positioning pin options can avoid mixed insertion between similar connectors;
Comprehensive shielding effect, anti electromagnetic interference;
Multi core type 2-32 cores, high-density installation saves space;
Positioning pin system, G is the standard positioning pin used for connector alignment
Technical performance of B-series metal connectors
Mechanical performance and environmental factors:
Insertion and unplugging times:>5000 times
Humidity: At a temperature of 60 ° C, the highest humidity reaches 95%
Temperature range: -45 ° C to+125 ° C
Vibration: 10-2000Hz, 15g
Mechanical impact: 100g. 6ms
Salt corrosion test:>72h
Protection level: IP50
