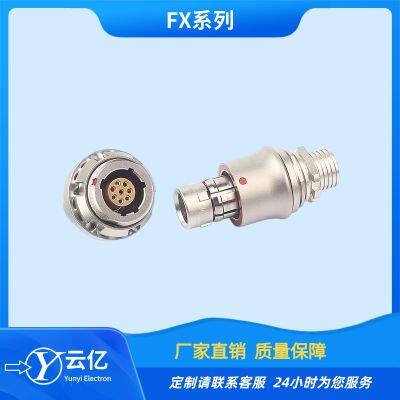

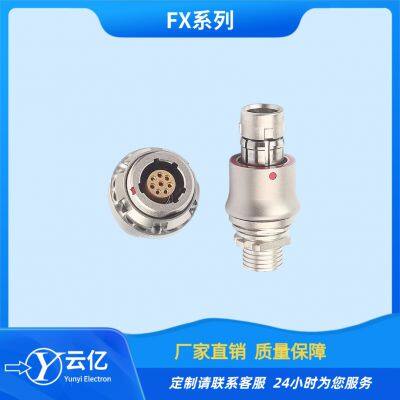

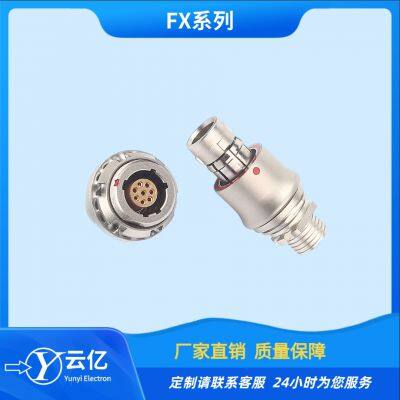

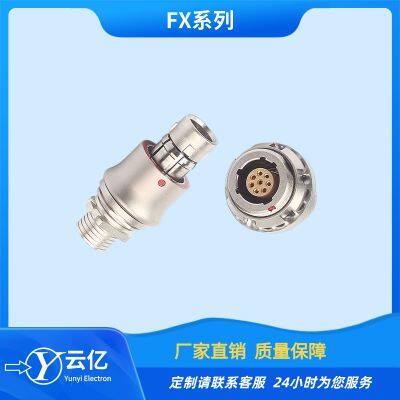

FX series waterproof aviation plug push-pull self-locking connector 8-core new energy customized wire harness connector

Introduction to FX series connectors

FX series straight plug-in connectors are used in high-density installation, relatively small space and difficult for rotary insertion and separation. It is widely used in the signal connection transmission of AC and DC, high-speed, radio frequency, optical fiber, etc. in radio equipment, infantry equipment, reinforced computers, medical equipment, test and detection equipment, audio and video equipment, data acquisition, industrial control and other occasions in the military and civilian fields.

Features of FX series connectors_--

1. High speed: It can meet the direct transmission of high-speed signals (USB2.0, USB3.0, HDMI, SATA, DP, Gigabit network, optical network, etc.) of various standard protocols.

2. The minimum shell number FX101 has a maximum outer diameter of only 12.4mm.

3. A single connector can realize the integrated transmission of low frequency, power supply, high speed, radio frequency, optical fiber and other signals.

4. Straight plug-in and unplug, blind plug-in, can achieve fast connection and separation.

5. It has the characteristics of shielding, sealing, environmental resistance and long life.

6. A variety of key recognition, with anti-misinterpolation function.

7. Plug and socket straight push-pull locking structure.

8. The socket is in the form of nut fastening installation, equipped with conductive O-type country, with shielding and sealing function.

9. Socket leakage rate: air pressure difference 1×105Pa, leakage rate should be <1.0 Pa-cm3/s (except for optical fiber and radio frequency products)

10. After the plug and socket is plugged in, it can achieve water pressure resistance: 2m water depth, 24h. ( Except for optical fiber and radio frequency products)

11. Plugs and sockets can be equipped with both pins and jacks. ( Except for optical fiber and radio frequency products)

12. High-speed and low-frequency electrical contact terminal forms: the plug is wire welding type, the socket is wire welding type and straight printing plate welding type.

13. Multi-key positioning, using double anti-error insertion methods such as key structure error

prevention and color visualization.

Mechanical Properties

Mechanical life: 5000 times

Vibration: 101, 102 shells

Sine vibration: frequency 10 ~ 2000Hz, acceleration 147m/s2, ≤1u5 instantaneous 103, 1031, 104, 105, 106 shells

Random vibration: power spectral density 1.0g2/Hz, mean square root value 36.6g, ≤1uS instantaneous

Impact: acceleration 2940m/s2, ≤1us instantaneous

Environmental Performance

1: Working temperature: -55°C~ +125°C

2: Relative humidity: up to 95% at 40°C

3: Socket leakage rate: the air pressure difference is 1×105Pa, and the leakage rate should not be greater than 1.0Pa-cm3/s (optical fiber and radio frequency do not have airtightness)

4: Salt spray: aluminum alloy/copper alloy ≥96h

5: Plug and socket, water pressure resistance: 2m water depth, 24h (except for optical fiber and radio frequency products)
