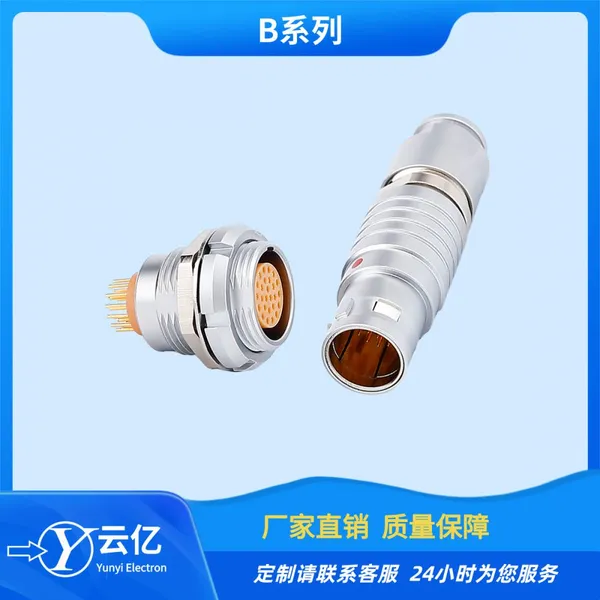

Help CenterPlug and Pull Self-locking Connector B Series, 2-core, 3-core, 4-core, 5-core, 6-core, 7-core, 9-core Aviation Plug Socket
Related Products
-
Compatible With Lemo FGG.2B.326.CLAD92 Push-pull Self-locking ConnectorUS$ 12MOQ: 1 Combo -
Aviation Plug Medical Electronic Push-pull Self-locking Connector B Series Detection Military Power Equipment ConnectorUS$ 7 - 10MOQ: 1 Pair
-
Compatible With Various Manufacturers, B-series Plug-in Self-locking Aviation Plugs 0B 1B 2B 3B 4B Multi-core, 2-core to 30-core OptionalUS$ 20 - 25MOQ: 1 Pair
-
Push-pull Self-locking Connector FX1031T02C058JN-HS/FX1031Z02C058KN-H Aviation PlugUS$ 20 - 25MOQ: 1 Pair
-
Aviation Plug FX1031T02C058JN-HS/FX1031Z02C058KN-H ConnectorUS$ 20 - 25MOQ: 1 Pair
Introduction to B-series connectors
The B series is a circular push-pull self-locking connector that meets ergonomic requirements, is modular, sturdy, and reliable. It uses an elastic self-locking device and can be used for applications that require quick and safe insertion and removal of self-locking. This series of products is an ideal choice for testing, measuring, testing instruments, medical equipment, scientific research, and audio/video applications. Modular configuration mainly includes various high-density multi-core or mixed needle core configurations. The types of needle cores can be welding needle cores, crimping needle cores, PCB straight needle cores or bent angle needle cores. The types of needle cores also include fiber optic, coaxial, thermocouple, gas path, jet, and high-voltage signal. The multi positioning pin system can achieve high contact density, thereby preventing mixed insertion.
Product features
Fast push-pull self-locking system;
Welding, crimping, and printed circuit board types;

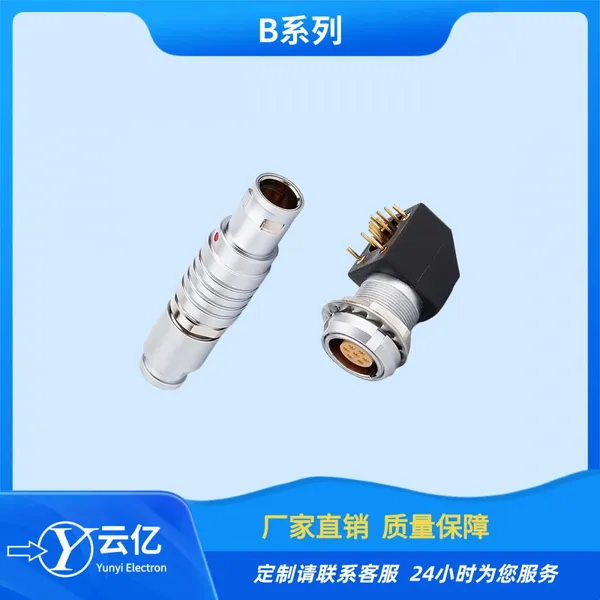

Straight type, 90 ° curved angle type;
Multiple positioning pin options can avoid mixed insertion between similar connectors;
Comprehensive shielding effect, anti electromagnetic interference;
Multi core type 2-32 cores, high-density installation saves space;
Positioning pin system, G is a standard positioning pin used for connector alignment
Technical performance of B-series metal connectors
Mechanical performance and environmental factors:
Insertion and removal times:>5000 times
Humidity: At a temperature of 60 ° C, the maximum humidity reaches 95%
Temperature range: -45 °~+125 °
Vibration: 10-2000Hz, 15g
Mechanical impact: 100g 6ms
Salt corrosion test:>72 hours
Protection level: IP50
