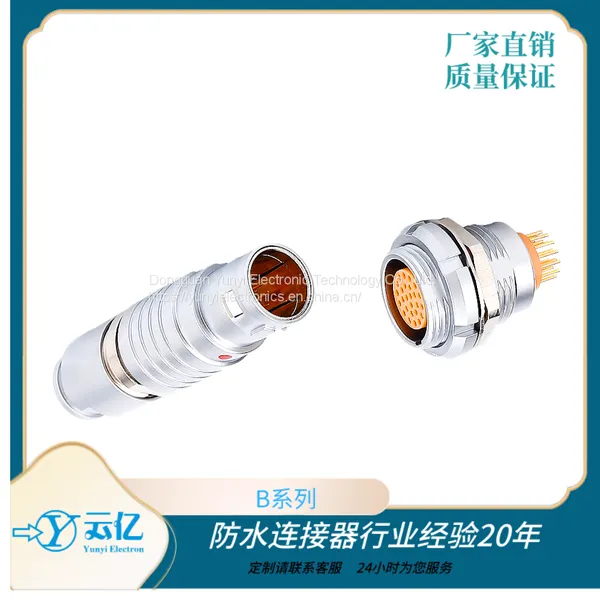

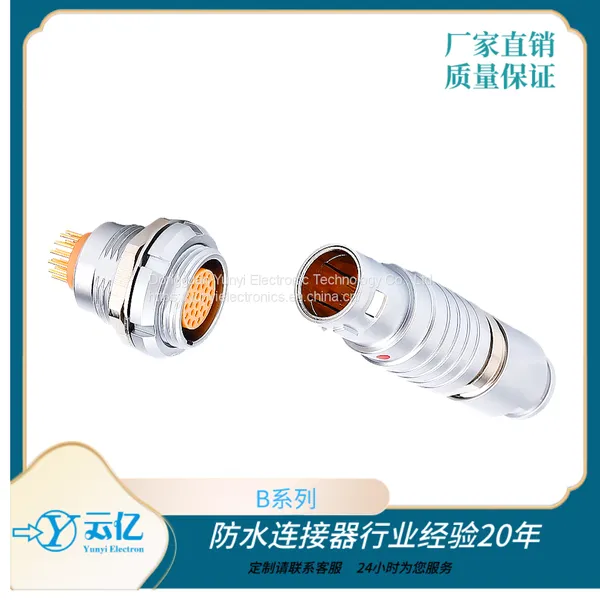

Introduction to B series connectors

The B series is an ergonomic, modular, durable and reliable circular push-pull self-locking

connector. It adopts an elastic self-locking device, which can be used in applications that

 require fast and safe plug-in and unplugging self-locking. This series of products is ideal for testing,

 measurement, testing instruments, medical equipment, scientific research and audio/video applications.

 The modular configuration mainly includes all kinds of high-density multi-core or mixed needle core configurations.

The types of needle cores can be welded needle cores, crimping needle cores, PCB straight needle cores or corner needle cores.

The types of needle cores also include optical fibers, coaxial, thermocouples, gas circuit, jets and high-voltage signals.

The multi-positioning pin system can achieve high contact density to prevent mixing.

Product features

Fast push-pull self-locking system;

Welding, crimping and printing plate types;

Straight type, 90° angle type;

A variety of positioning pin options can avoid mixing between similar connectors;

All-round shielding effect, anti-electromagnetic interference;

Multi-core 2-32 core, high-density installation saves space;

Positioning pin system, G is the standard positioning pin for connector positioning

Technical performance of B series metal connectors

Mechanical properties and environmental factors:

Number of insertions: >5000

Humidity: at a temperature of 60°, the maximum humidity reaches 95%

Temperature range: -45°~+125°

Vibration: 10-2000Hz, 15g

Mechanical impact: 100g. 6ms

Salt corrosion test: >72h

Protection level: IP50
