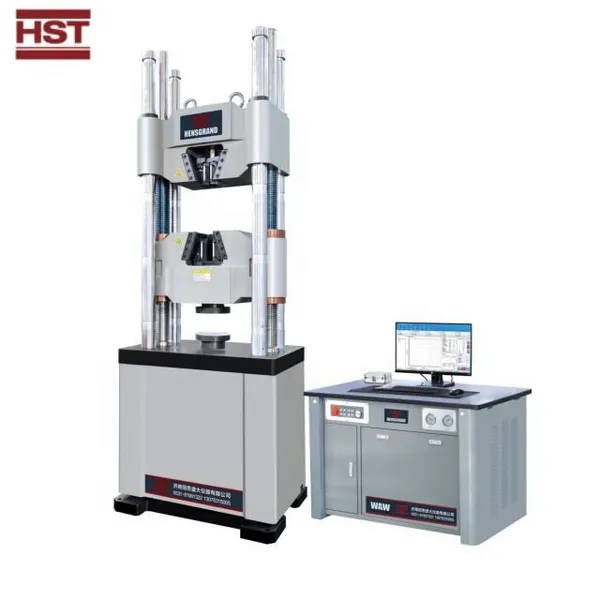

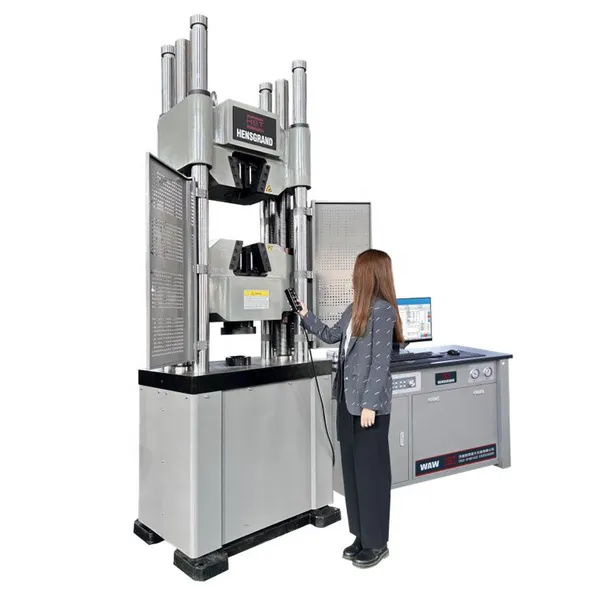

HST 1500kN 150Ton Hydraulic Universal Concrete Compression Testing Machine/Load Cell Based Machine
US$ 244926.50
1 - 4 Set
US$ 230930.70
≥5 Set
Key Specifications
Get Latest Price
Type:
Universal Testing Machine
Warranty:
12months
Platens Size:
Ø160 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Jinan Universal Testing Machine China Hydraulic Utm Strength Test EquipmentUS$ 45486.35 - 55983.20MOQ: 1 Set -
HST WAW-2000E 2000kn Utm 1000 Kn Tensile Universal Testing MachineUS$ 209937.00 - 223932.80MOQ: 1 Set
-
HST ASTM A370 Mechanical Testing Equipment +Hydraulic Universal Testing Machine+Steel Tensile TestUS$ 83974.80 - 90972.70MOQ: 1 Set
-
HST 100kN 300kN 500kN 600kN 1000kN 2000kN Load Cell Servo Hydraulic Utm Universal Testing Machine Tester Price WAW-B WAW-EUS$ 83974.80 - 97970.60MOQ: 1 Set
-
2023 60 Ton 100 Ton 200 Ton Single Space Hydraulic Tensile Strength Testing Machine for Reinforcement Steel BarsUS$ 1000 - 3999MOQ: 1 Set
Type
Universal Testing Machine
Warranty
12months
Platens Size
Ø160 mm
Resolution
0.01 N
Brand Name
HST
Place of Origin
Shandong, China
Input Voltage
380 V
Product name
Hydraulic universal test machine
Application
Tensile, comprssion, bending test
Power supply
380V, 50HZ, 3P or customized
Sturcture
4 columns and 2 screws
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Protection way
Overload, overcurrent, protection net, etc
Max.piston stroke
250mm
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Model |
WAW-100D |
WAW-200D WAW-300D |
WAW-500D WAW-600D |
WAW-1000D/E |
WAW-1200D |
WAW-2000E |
|||||
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing
|
||||||||||
Number of Screw drivers |
4 |
||||||||||
Max. Load(KN) |
100 |
200 /300 |
500/600 |
1000 |
1200 |
2000 |
|||||
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||||
Load Range |
2%~100%FS |
||||||||||
Load Resolution |
1/300000 |
||||||||||
Deformation Measurement Range |
2%~100%FS |
||||||||||
Deformation Accuracy |
≤± 1% |
||||||||||
Displacement Resolution |
0.01mm |
||||||||||
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|||||
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|||||
Displacement Error |
≤±0.5% |
||||||||||
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|||||
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|||||
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|||||
Column Effective Spacing(mm) |
490 |
490 |
500 |
560/580 |
610 |
800 |
|||||
Clamping Method |
Hydraulic Automatic Clamp |
||||||||||
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|||||
Compression Plate Size |
Φ 160mm |
||||||||||
Bending Roller Distance |
450mm |
||||||||||
Width Of Bending Rollers |
120mm |
||||||||||
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||||
