HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine

HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine thumbnail-1
HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine thumbnail-2
HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine thumbnail-3
HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine thumbnail-4
HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine thumbnail-5
HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine thumbnail-6

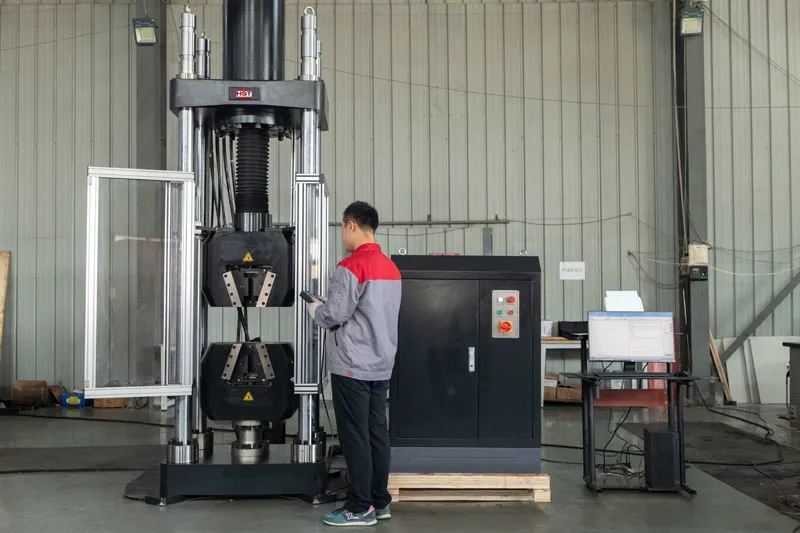

HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine photo-1

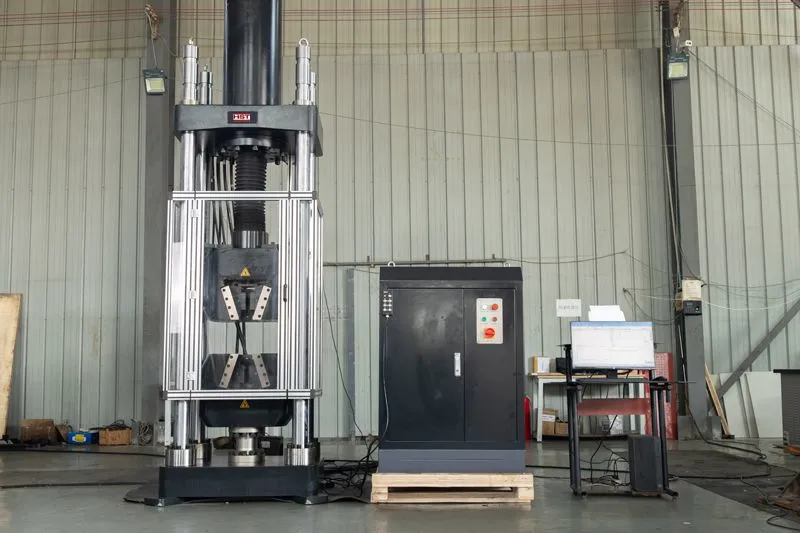

HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine photo-2
HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine photo-3
HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine photo-4

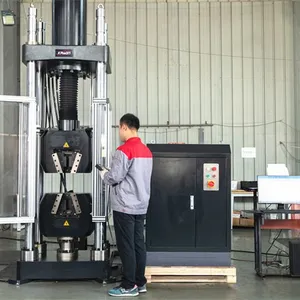

HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine photo-5

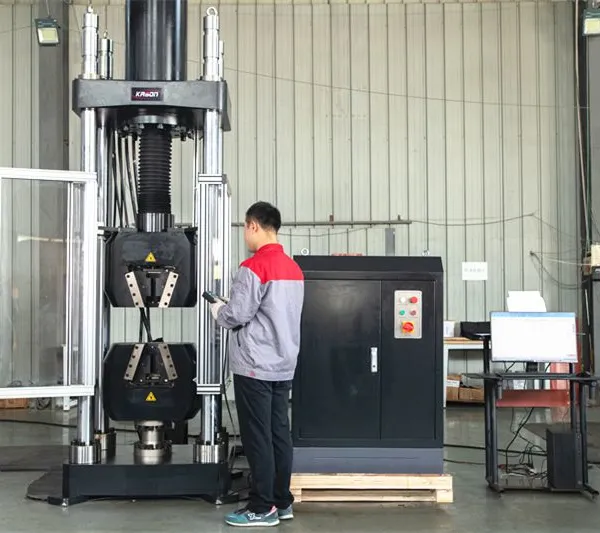

HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine photo-6
US$ 1000 - 3999 MOQ: 1 Set
Key Specifications
Get Latest Price
brand name:
HST OR OEM
place of origin:
Shandong, China
customized support:
OEM, ODM
Contact Supplier Request Quote Chat Now
Hst Group Co.,ltd.
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
brand name HST OR OEM
place of origin Shandong, China
customized support OEM, ODM
power Hydraulic
warranty 1 year
model number WAW-300/600/1000/2000/3000F
Max test force 300/600/1000/2000/3000KN
structure 4 column
Load range 1%~100%FS
Load accuracy ≤±1%
Test force resolution value 0.01kN
Deformation Measurement Range 1%-100% of extensometer measurement range
Deformation indication error ± 1%of indicating value
Max.piston stroke 680mm
Displacement Indication Error 1% of indicating value
Displacement Resolution 0.01mm

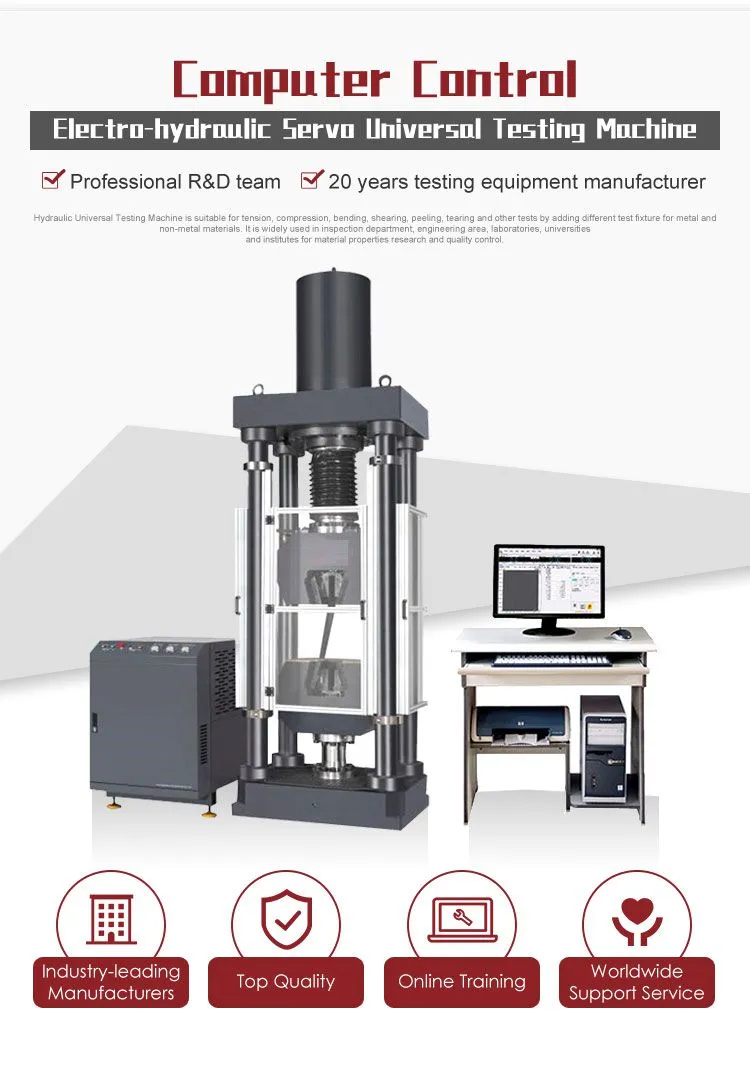

HST 300 600 1000 2000 3000 kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine

HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine

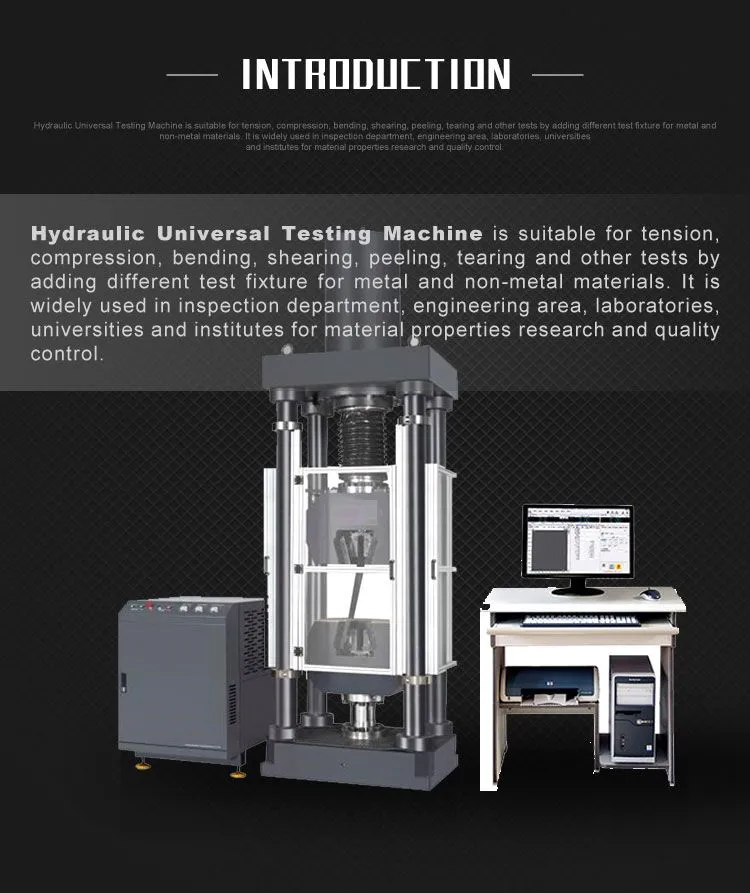

Application

 HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine

Test standards

 1 Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.
2 Strain measurement meets or exceeds the following standard: ASTM E83, ISO 9513, BS3846, EN10002-4
3 Also conform to some other standards: ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.

Specifications



Model

WAW-300F

WAW-600F

WAW-1000F

WAW-2000F

WAW-3000F

Max. Load capacity(kN)

300

600

1000

2000

3000

Structure

Four column

Accuracy of testing load(%)

±0.5

Accuracy of deformation(%)

±0.5

Test Range

1%-100%

Deformation measurement range

1%-100%

Posion rising speed(mm/min)

0-250

0-250

0-150

0-100

0-100



Piston descending speed(mm/min)

0-250

0-250

0-180

0-100

0-100

Test Force Loading Rate Range

0.02%-2%FS/s

Host structure

2

4

4

4

4

Max. Tensile space(mm)

400

580

680

800

800

Max. Compression space(mm)

300

460

520

520

520

Actuator stroke(mm)

370

580

680

800

800

Max. Loading speed(mm/min)

100

100

75

50

100

Distance between columns(mm)

500

490x330

660x400

800x400

900x540

Clamping method

Hydraulic Automatic Clamp With Wedge

Round insert(mm)

10-32

10-40

15-60

15-70

1570

Flat insert(mm)

2-25

2-30

2-40

10-70

10-70

Compression platens(mm)

120

150

200

240

240

 HST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing MachineHST 300 600 1000 2000 3000 Kn Electro-hydraulic Single Space Hydraulic Servo Tensile Force Strength Universal Testing Machine
