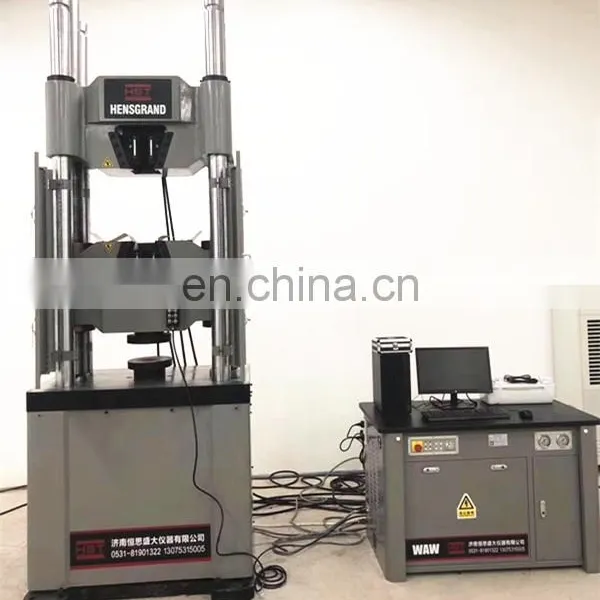

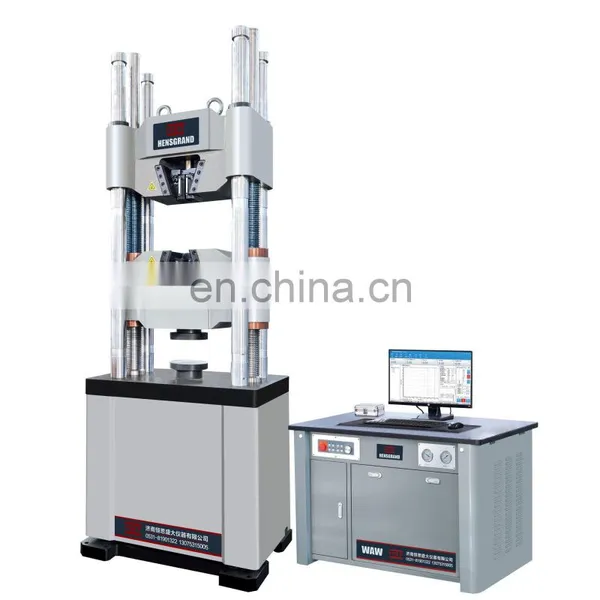

HST WAW-2000E 200TON steel tensile compression universal testing machine

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Description

1. Application

2. Standards of universal testing machine price

ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards

3. Main specifications universal testing machine price

Model	WAW-100D	WAW-200D WAW-300D	WAW-600D	WAW-1000D/E	WAW-1200E	WAW-2000E
Control Way	Constant stress uniform deformation constant displacement three closed loop control and program control dealing
Number of Screw drivers	4
Max. Load(KN)	100	200 /300	600	1000	1200	2000
Load Accuracy	≤± 1%/ ≤± 0.5%
Load Range	2%~100%FS
Load Resolution	1/300000
Deformation Measurement Range	2%~100%FS
Deformation Accuracy	≤± 1%
Displacement Resolution	0.01mm
Testing speeds (mm/min)	0.1~118	0.1~123	0.1~123	0.1~70	0.1~70	0.1~70
Adjustable crosshead speed(mm/min)	450	450	350	350	320
Displacement Error	≤±0.5%
Max. Piston Stroke(mm)	200	200	200	200/250	250	250
Max. Tension Test Space (mm)	780	780	900	950/980	930	1260
Max. Compression Test Space	550	550	650	700	640	850
Column Effective Spacing(mm)	485	485	500	560/580	610	800
Clamping Method	Hydraulic Automatic Clamp
Flat Specimen Clamping Width(mm)	80*80	80*80	90*90	100*100	120*110	150*120
Compression Plate Size	Φ 160mm
Bending Roller Distance	450mm
Width Of Bending Rollers	120mm
Power Supply	3-phase, AC380V, 50Hz (Can Be Customized)
