1000Kn Rebar Tensile Testing Equipment,Material Testing Machine,Hydraulic Used Universal Testing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2009
Factory Size:
1,000-3,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1000kn Steel Strand Casting Method Universal Tensile Testing MachineNegotiableMOQ: 1 -
Hydraulic Universal Machine For Tensile Hydro Testing EquipmentNegotiableMOQ: 1
-
Microcomputer Controlled Relaxation For Copper Rod Twist Computer Control Steel Strand Universal Testing MachineNegotiableMOQ: 1
-
Hydro Equipment Extensometer Steel Wire Tensile Testing MachineNegotiableMOQ: 1
-
Controlled Stress Relaxation Test Of Steel StrandNegotiableMOQ: 1
1000Kn Rebar Tensile Testing Equipment,Material Testing Machine,Hydraulic Used Universal Testing Machine e
Product Description

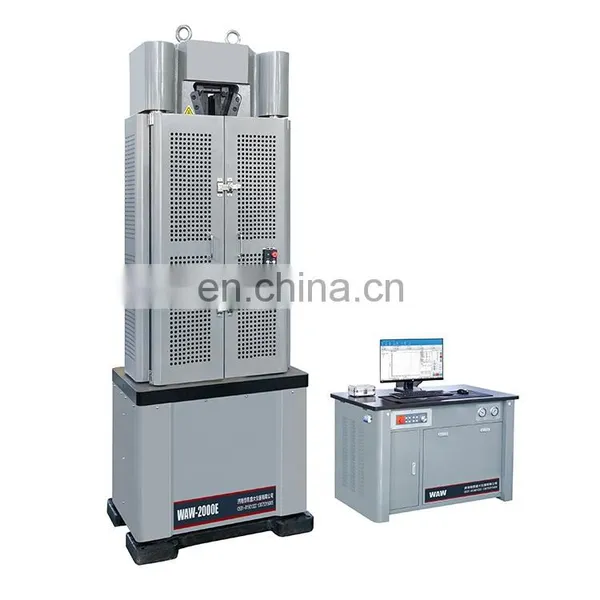

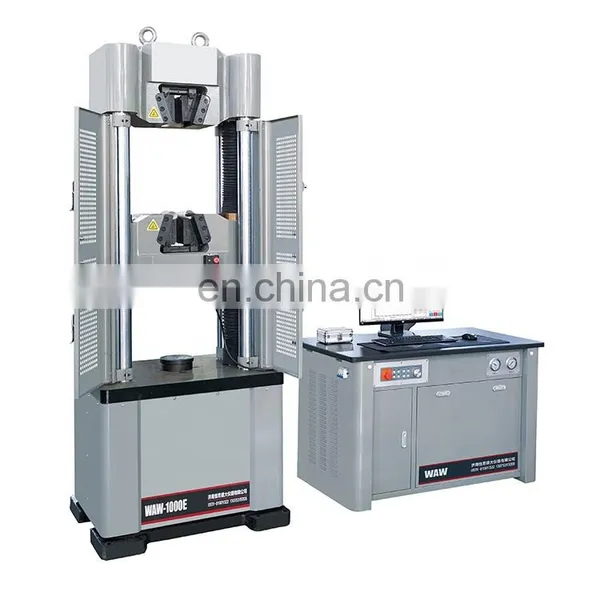

Hydraulic Universal Testing Machine is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
| Model | WEW-300D | WEW-600D | WEW-1000D | WEW-2000D |
| Structure | 4 columns and 2 screws | |||
| Control way | loading process manual control,computer automatic data dealing | |||
| Max.load (kN) | 300kN | 600kN | 1000kN | 2000kN |
| Load accuracy | ≤±1% | |||
| Load range | 2%-100%FS | |||
| Load resolution | 1/300000 | |||
|
Deformation Measurement Range |
2%~100%FS | |||
| Deformation accuracy | ≤±1% | |||
|
Displacement resolution (mm) |
0.01 | |||
| Displacement error | ≤±0.5% | |||
| Max.piston stroke(mm) | 250 | |||
| Max piston moving speed | 0-90mm/min Manual adjustment | |||
| Crosshead lifting speed | 200mm/min | |||
| Max. tension test space |
750mm (can customize) |
650mm (can customize) |
650mm (can customize) |
850mm (can customize) |
| Max.Compression Test Space |
600mm (can customize) |
500mm (can customize) |
500mm (can customize) |
650mm (can customize) |
| Column clearance(mm) | 420 | 475 | 525 | |
| Clamping method | Hydraulic clamp | |||
|
Round specimen clamping range (mm) |
Φ10-Φ20,Φ20-Φ32, (Φ4-Φ10 Optional ) | Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) | Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) | Φ12-Φ30mm, Φ30-Φ50mm, Φ50-Φ70mm |
|
Flat specimen clamping range (mm) |
0-15 (15-30 Optional) | 0-15 (15-30 Optional) | 0-15 (15-30 Optional) | 0-35 mm |
|
Flat specimen clamping width(mm) |
80 | |||
| Compression plate size (mm) | φ160 | |||
| Bending roller distance(mm) | 450 | |||
| Width of bending rollers (mm) | 120 | |||
| Power supply | 3-phase,AC380V, 50Hz(can be customized) | |||
