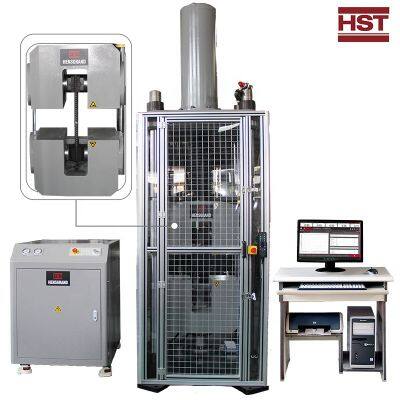

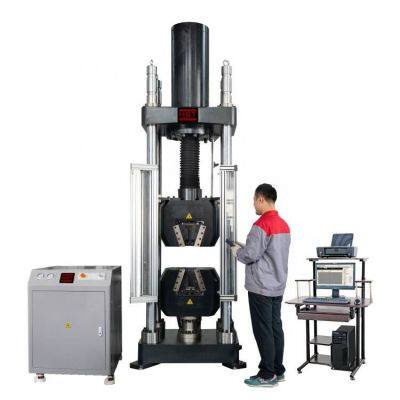

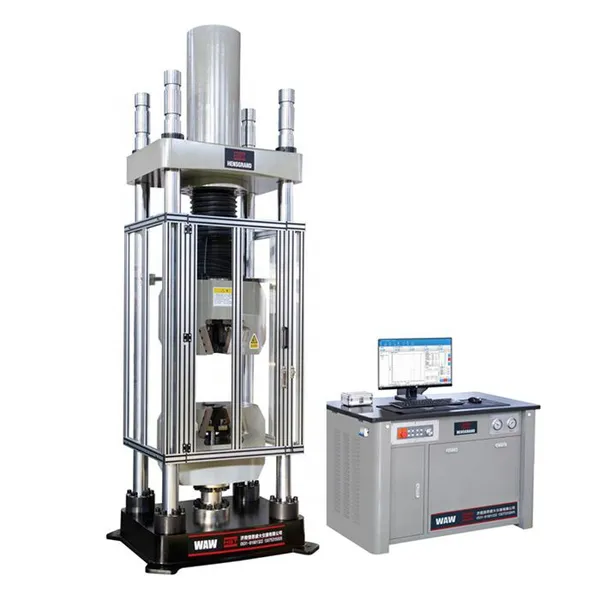

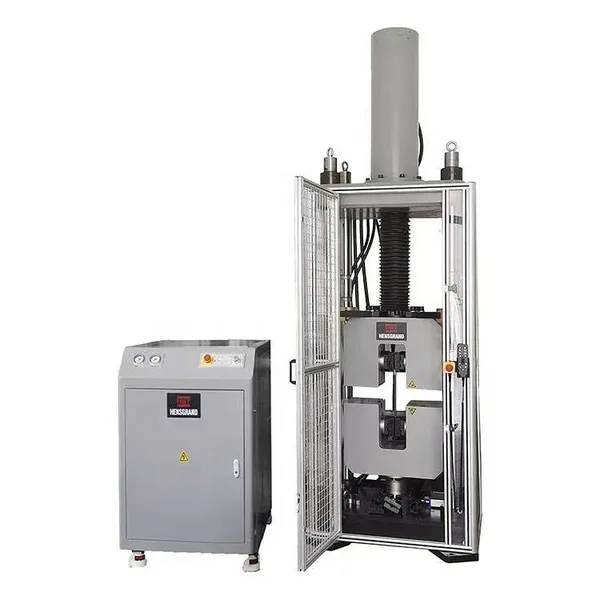

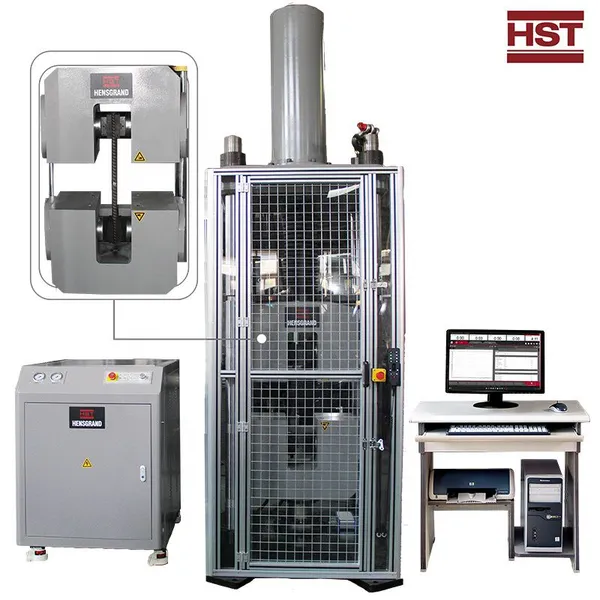

New Model WAW-3000A/4000A/5000A 300ton 400ton 500ton Computer Control Hydraulic Universal Testing Machine
Hydraulic Universal Testing Machine is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
|
Model |
LEW-600H |
LEW-1000H |
||
|
Max.test force(kN) |
600 |
1000 |
||
|
Structure |
4 columns two ball screws, chain transmission, oil cylinder down-setting type |
|||
|
Test machine class |
1 Class |
|||
|
Test force range(FS) |
2%-100% |
|||
|
Relative error of force reading(%) |
≥±1 |
|||
|
Test force resolution |
1/20000 |
|||
|
Deformation measurement range (FS) |
2%~100% |
|||
|
Deformation resolution |
1/20000 |
|||
|
Relative error of deformation reading (%) |
≥±0.5 |
|||
|
Displacement resolution (mm) |
0.01 |
|||
|
Relative error of displacement reading (%) |
≥±0.5% |
|||
|
Max. piston speed (mm/min) |
0-70 Manual adjust |
|||
|
Beam adjust speed (mm/min) |
250 |
|||
|
Piston stroke(mm) |
150 |
|||
|
Max. Tensile space (mm) |
1000 |
|||
|
Effective column space (mm) |
600 |
730 |
||
|
Tension fixtures configuration |
Hydraulic automatic clamping type |
|||
|
Stranded wire clamping range(mm) |
12.7 or 15.2 mm |
|||
|
Power supply |
380V/50Hz/Three-phase four-wire system |
|||
|
Compression grip |
160 sphere automatically leveling compression grip |
|||
|
Optional parts |
||||
|
Tensile grip clamp round specimen diameter(mm) |
Φ13-Φ40 |
Φ13-Φ50 |
||
|
Tensile grip clamp flat specimen thickness |
0-15mm |
0-30mm |
||
|
Bending grip |
Three points bending grip |
|||
|
Bending roller upper and lower diameter |
3×Φ30mm |
|||
|
Power supply |
3-phase,AC380V, 50Hz(can be customized) |
|||
