Home > Instruments & Meters > Test Instrument > Test Machine > HST 300kn 30ton Horizontal Type Computer Control Steel Strand Tensile Stress Relaxation Testing Machine

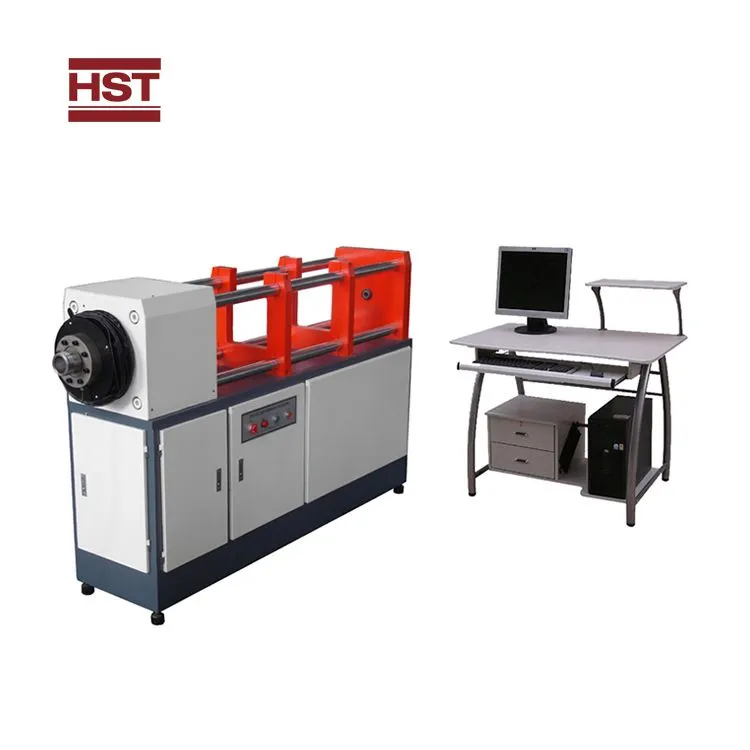

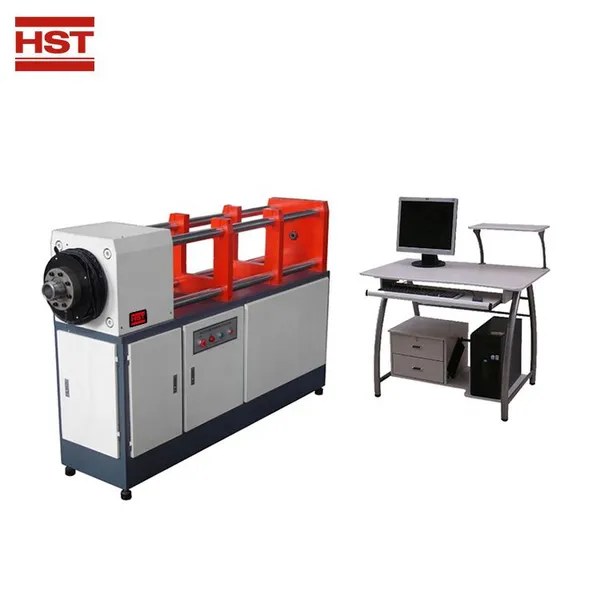

HST 300kn 30ton Horizontal Type Computer Control Steel Strand Tensile Stress Relaxation Testing Machine
US$ 125962.20
1 - 4 Set
US$ 118964.30
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
brand name:
HST
place of origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST 1000kn High Quality Hydraulic Bolts Compression Spring Testing MachineUS$ 125962.20 - 139958.00MOQ: 1 Set -
HST Factory Price Bolts Tensile Hydraulic Tensile Universal Testing MachineUS$ 132960.10 - 139958.00MOQ: 1 Set
-
HST WAW-600G 60Ton 600KN Computer Display Steel Strand Wire Tensile Strength Hydraulic Testing MachineUS$ 111966.40 - 118964.30MOQ: 1 Set
-
HST Videos Show PC Control Steel Bar 1000KN UTM Universal Tensile Testing MachinesUS$ 83974.80 - 97970.60MOQ: 1 Set
-
HST 2000kn Utm Universal Testing Machine 200ton China Factory Customized Material Tensile Strength Testing Laboratory EquipmentUS$ 209937.00 - 230930.70MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
2KW
Voltage
380 V
warranty
1 year
Model SXW-300
SXW-300
Host Structure
Horizontal Type
Max. Test Force
300 KN
Test Force Range
2%~100% (6 KN~300 KN)
Accuracy Of Testing Force
Better Than ±0.5% Of Indicated Value
Test Force Resolution
10 N
Max. Relaxation Test Space
2000 mm (Do Not Including Stretching Stroke)
Chucks Displacement Resolution
0.001 mm
Stretching Stroke
200 mm
Test Force Indication Relative Error
±1%
300kn 30ton Horizontal Type Computer Control Steel Strand Tensile Stress Relaxation Testing Machine
Product Description
1.Application:
SXW 300 Computer Control Steel Strand Tensile Stress Relaxation Testing Machine used to test the relaxation properties of the Steel Strand, Steel Bars and Stress Wires. using advanced Gear Of Tooth Modification technology, to ensure that testing machine structure compact, achieve precise measurement
results, at the same time with high-quality accessories, to achieve efficient measurement.
This machine meet these <<GB / T 10120-1996 Metallic Materials--Stress Relaxation Tests Methods>> and
<<ASTM E328-2008 Standard Test Methods for Stress Relaxation Tests for Materials and Structures>> standards of steel at room temperature tensile stress relaxation test requirements.
This machine widely used in Quality Inspection Departments, Construction Building Entities, Steel Strand and Reinforced Manufacturing Companies and so on.
It is a new model testing machine for Modern Building Mechanical Tests.
2.Main Specifications:
.
|
Model |
SXW-300 |
|
|
Host Structure |
Horizontal Type |
|
|
Max. Test Force |
300 KN |
|
|
2%~100% (6 KN~300 KN) |
||
|
Accuracy Of Testing Force |
Better Than ±0.5% Of Indicated Value |
|
|
Test Force Resolution |
10 N |
|
|
Max. Relaxation Test Space |
2000 mm (Do Not Including Stretching Stroke) |
|
|
Chucks Displacement Resolution |
0.001 mm |
|
|
Stretching Stroke |
200 mm |
|
|
Digital Micrometer |
Range: 10 mm, Resolution: 0.001 mm |
|
|
Test Force Indication Relative Error |
±1% |
|
|
Temperature Resolution |
0.1 °C |
|
|
Displacement Measurement Accuracy |
≤±0.5%FS |
