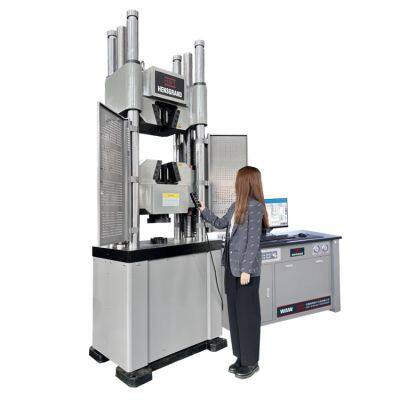

Home > Instruments & Meters > Test Instrument > Test Machine > HST Factory Price Bolts Tensile Hydraulic Tensile Universal Testing Machine
US$ 139958.00
1 - 4 Set
US$ 132960.10
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
brand name:
HST
place of origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST WAW-600G 60Ton 600KN Computer Display Steel Strand Wire Tensile Strength Hydraulic Testing MachineUS$ 111966.40 - 118964.30MOQ: 1 Set -
HST Videos Show PC Control Steel Bar 1000KN UTM Universal Tensile Testing MachinesUS$ 83974.80 - 97970.60MOQ: 1 Set
-
HST 2000kn Utm Universal Testing Machine 200ton China Factory Customized Material Tensile Strength Testing Laboratory EquipmentUS$ 209937.00 - 230930.70MOQ: 1 Set
-
HST WAW-F Series AC133 ISO15832-2 Hydraulic Servo Universal Rebar Testing MachineUS$ 1000 - 3999MOQ: 1 Set
-
HST M6 M8 M10 M12 M24 M32 Hydraulic Universal Testing Machine Fastener Grips Bolt Nut FixtureUS$ 87473.75 - 90972.70MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
2KW
Voltage
380 V
warranty
1year
Product name
Hydraulic universal test machine
Application
Tensile, comprssion, bending test
Power supply
380V, 50HZ, 3P or customized
Sturcture
6 columns
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Protection way
Overload, overcurrent, protection net, etc
Max.piston stroke
250mm
Certification
CE,ISO
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Model | WAW-100D | WAW-200D WAW-300D | WAW-500D WAW-600D | WAW-1000D/E | WAW-1200D | WAW-2000E | |||||
Control Way | Constant stress uniform deformation constant displacement three closed loop control and program control dealing | ||||||||||
Number of Screw drivers | 4 | ||||||||||
Max. Load(KN) | 100 | 200 /300 | 500/600 | 1000 | 1200 | 2000 | |||||
Load Accuracy | ≤± 1%/ ≤± 0.5% | ||||||||||
Load Range | 2%~100%FS | ||||||||||
Load Resolution | 1/300000 | ||||||||||
Deformation Measurement Range | 2%~100%FS | ||||||||||
Deformation Accuracy | ≤± 1% | ||||||||||
Displacement Resolution | 0.01mm | ||||||||||
Testing speeds (mm/min) | 0.1~118 | 0.1~123 | 0.1~123 | 0.1~70 | 0.1~70 | 0.1~70 | |||||
Adjustable crosshead speed(mm/min) | 450 | 450 | 350 | 350 | 320 | 320 | |||||
Displacement Error | ≤±0.5% | ||||||||||
Max. Piston Stroke(mm) | 200 | 200 | 200 | 200/250 | 250 | 250 | |||||
Max. Tension Test Space (mm) | 780 | 780 | 900 | 950/980 | 930 | 1250 | |||||
Max. Compression Test Space | 550 | 550 | 650 | 700 | 640 | 850 | |||||
Column Effective Spacing(mm) | 490 | 490 | 500 | 560/580 | 610 | 800 | |||||
Clamping Method | Hydraulic Automatic Clamp | ||||||||||
Flat Specimen Clamping Width(mm) | 80*80 | 80*80 | 90*90 | 100*100 | 120*110 | 150*120 | |||||
Compression Plate Size | Φ 160mm | ||||||||||
Bending Roller Distance | 450mm | ||||||||||
Width Of Bending Rollers | 120mm | ||||||||||
Power Supply | 3-phase, AC380V, 50Hz (Can Be Customized) | ||||||||||
