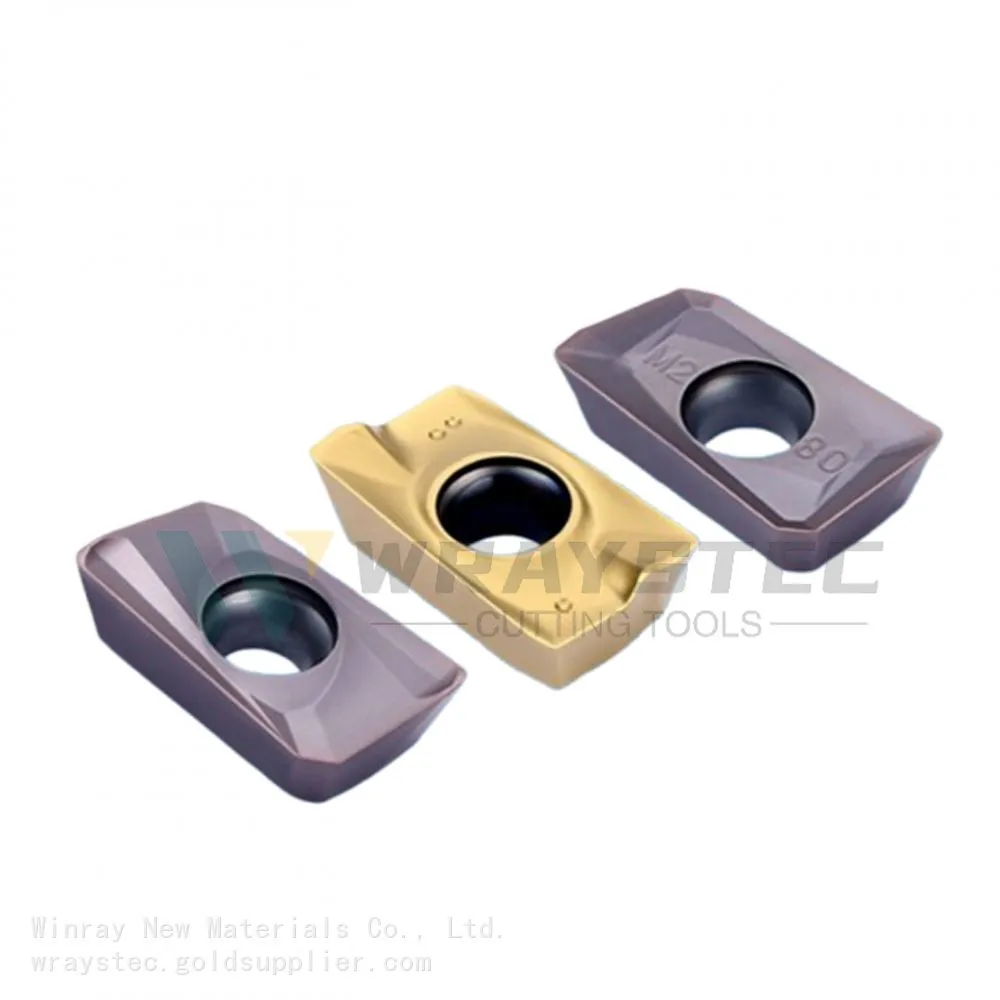

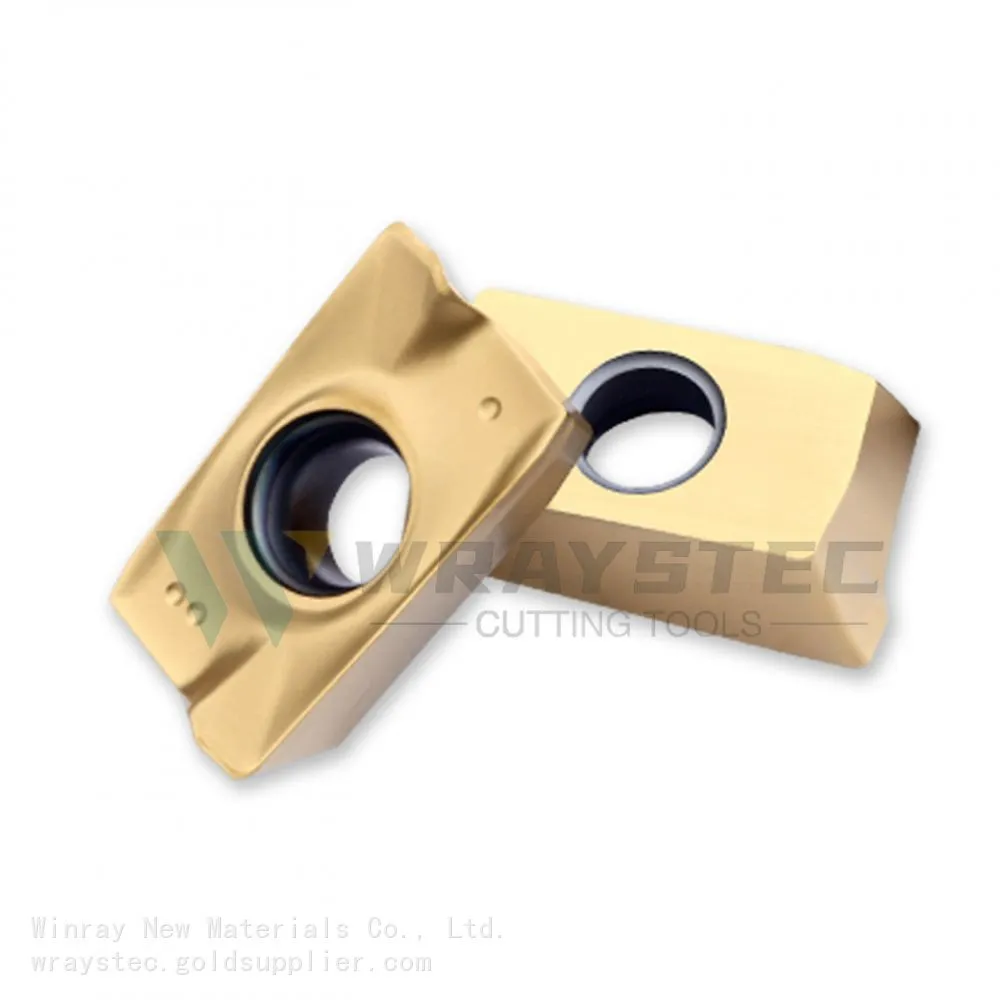

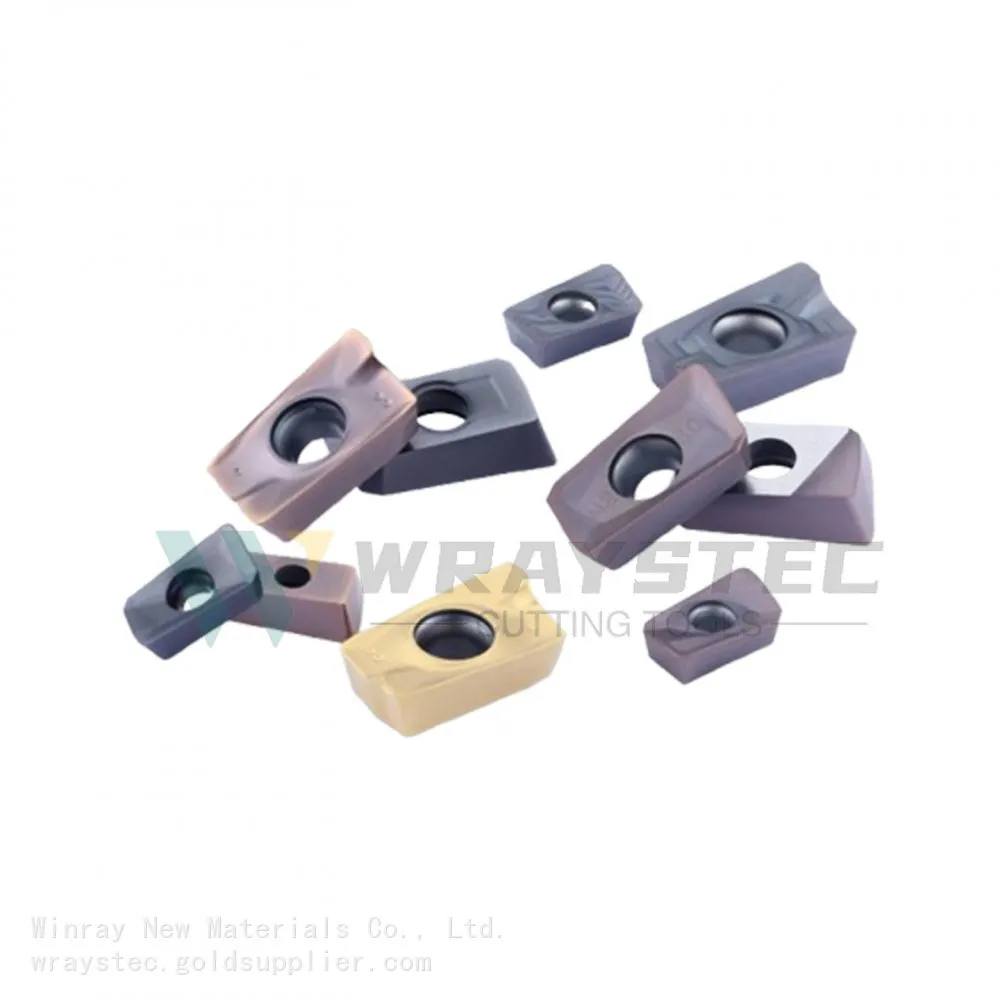

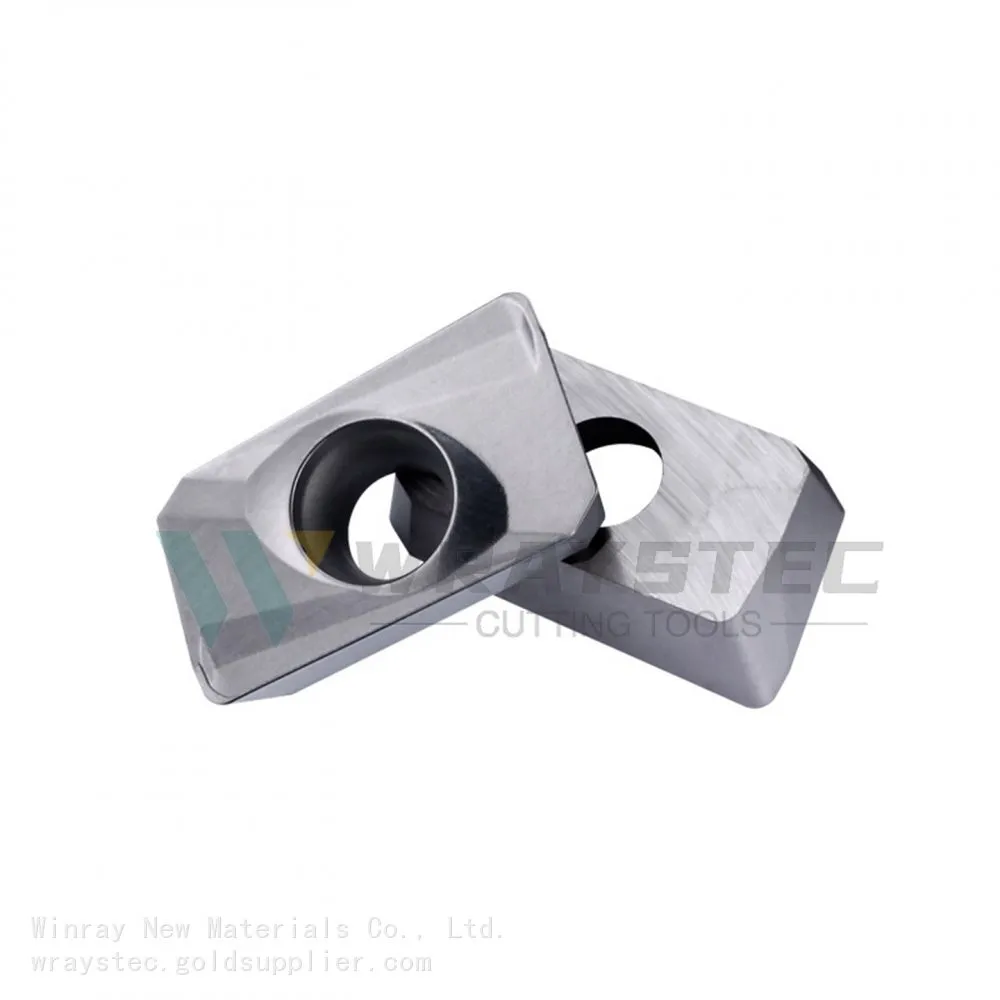

The APMT1135 is a very common indexable milling insert used in CNC machining. Its name is not just a code; it actually contains a wealth of geometric parameter information.
To help you understand this insert more thoroughly, I will explain its meaning, parameters, materials, and application scenarios in detail.
1. Model Analysis: What does APMT1135 represent?
According to international standards (ISO), this model code can be broken down into the following parts:
A: Indicates the clamping method of the insert (top clamping).
P: Indicates the shape of the insert (regular polygon, usually a rhombus, with two effective cutting edges).
M: Indicates the thickness tolerance of the insert.
T: Indicates the cutting edge angle of the insert (60° angle).
1135: This is the most crucial size code.
11: Represents the effective cutting edge length of the insert, approximately 11.3mm.
35: Represents the thickness of the insert, approximately 3.5mm.
2. Core Parameters and Geometric Shape
The APMT1135 is a rhombic insert, usually with two effective cutting edges (due to its symmetrical rhombic design).
Cutting edge length: Approximately 11.3mm
Thickness: Approximately 3.5mm
Nose radius (R): The most common specification is R0.8mm (i.e., "R08" in APMT1135PDER). This means the nose has a radius of 0.8mm, suitable for machining curved surfaces and chamfers.
Angle: Usually a 60° or 80° rhombic design, suitable for light and medium cutting.
3. Common Complete Models and Materials
In actual procurement and use, you won't just see "APMT1135"; it's usually followed by a string of codes indicating its groove type and material.
Examples of common complete models:
APMT1135PDER: This is the most common general-purpose type; PDER represents its groove type (chip breaker) and accuracy level.
APMT1135PDER-G08: G08 usually represents a nose radius of R0.8mm. APMT1135PDER-H2: H2 usually indicates that this insert is suitable for machining high-hardness materials.
Material Classification:
Carbide (Tungsten Steel): The most common material, wear-resistant and heat-resistant.
Coated Materials: The surface has nano-coatings such as TiAlN (titanium aluminum nitride) and AlCrN, appearing blue-black or purple-black, increasing hardness and lifespan.
Ceramic/Cermet: Used for high-speed precision machining.
CBN/PCD: Used for special machining of ultra-hard materials or non-ferrous metals.
4. Main Application Scenarios
Due to its moderate size and thickness, the APMT1135 insert is very suitable for the following machining scenarios:
Face milling and side milling: Its rhombic geometry allows for planar machining and side profile machining.
Mold machining: Because its cutting edge usually has an R0.8 radius, it is very suitable for machining curved surfaces of molds, impeller blades, etc. (this is also one of its important selling points).
Stainless steel and high-temperature alloy machining: The H2 series inserts, in particular, are specifically optimized for stainless steel such as 304 and 201, as well as high-temperature alloys (such as materials used for turbine blades), solving the problems of "sticking" and "poor wear resistance" in stainless steel machining.
General parts machining: It is also very common in the mass production of automotive parts and hardware accessories.
Factory Showcase

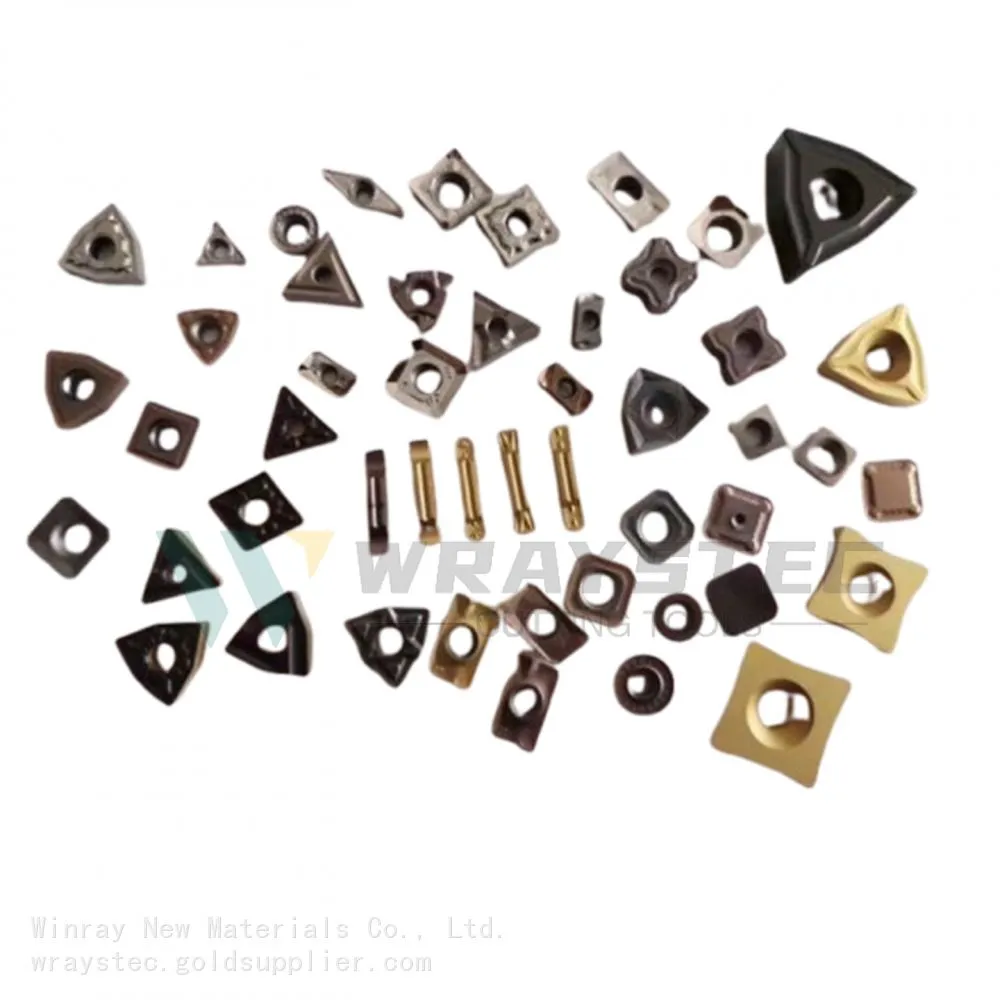

Mainly Inserts Shapes :
Milling Inserts: APMT APKT RDMT RPMT LNMU BLMP SEKT SDMT SOMT SEKN SEEN SPKN TPKN TPKR TPMR 3PKT WNMU SNMU ONMU AOMT JDMT R390 BDMT,etc.
Turning Inserts: CNMG CCMT SNMG SCMT WNMG TNMG TCMT DCMT DNMG VNMG VBMT KNUX,etc.
Grooving Inserts: MGMN MRMN N151 N123 ZTFD TDC2 TDC3 TDC4,etc.
Inserts for aluminium: APGT APKT CCGT DCGT VCGT RCGT SCGT SEHT TCGT ZTED,etc.
Threading Inserts: 11IR 11ER 16ER 16IR 22ER 22IR,etc.
U drill Inserts: SPMT WCMX WCMT,etc.

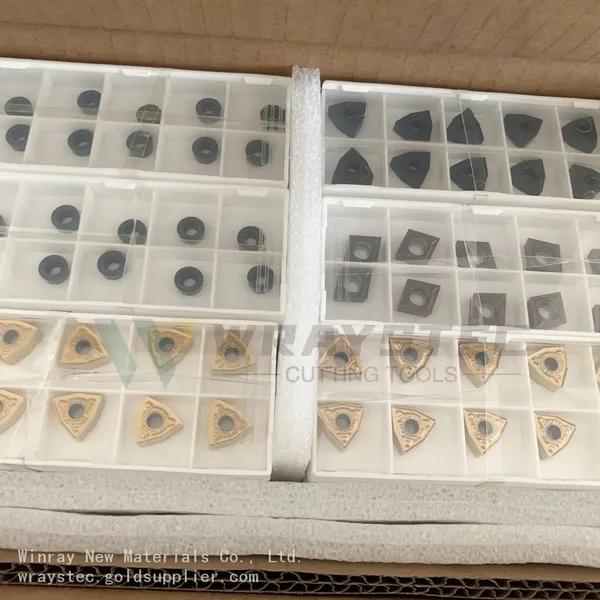

Delivery and Shipment :
Q&A:
1.Are you trading company or manufacturer?
We are professional manufacturer of cutting tools for more than 20 years.
2.Which shipping method do you usually use?
We usually send goods by express, for big quantity, we can send by sea or by air.
3.Which payment methods do you accept?
4.Can I get a sample to check your quality?
Yes, after confirm the price, you can require sample to check the quality.
We will send you free sample and you charge the shipping cost.
5.How about the delivery time?
For stock items, the delivery time is about 3-5 days.
If run out of stock, the delivery time is about 15-20 days.
If custom items , the delivery time usually is about 30-35 days.
6.What is the minimum order quantity (MOQ)?
The regular MOQ is 10 pieces.
7.Does the packaging support customized LOGO?
Support customized LOGO on the outer box (need to reach a certain quantity)
