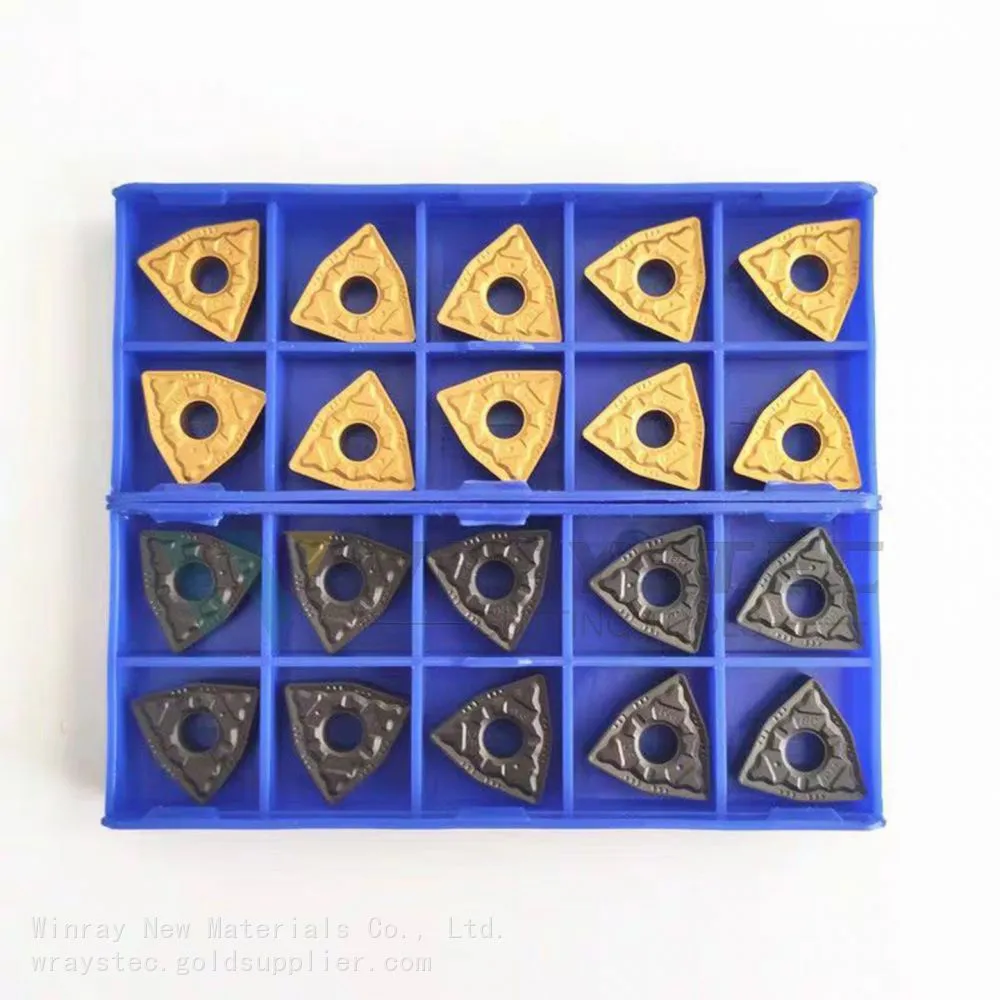

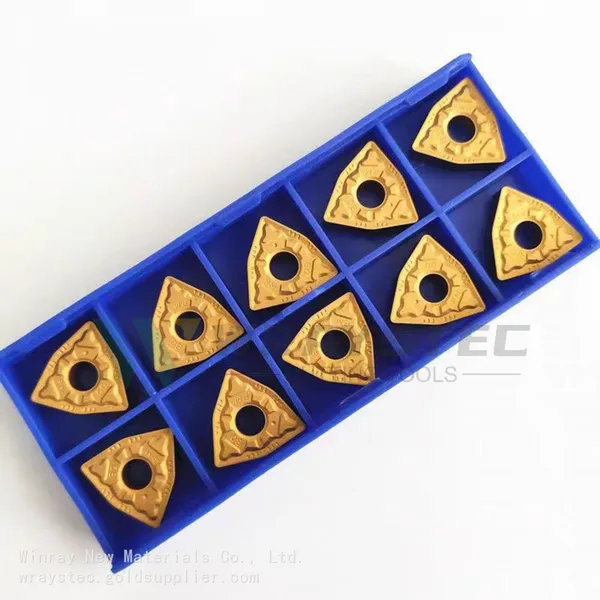

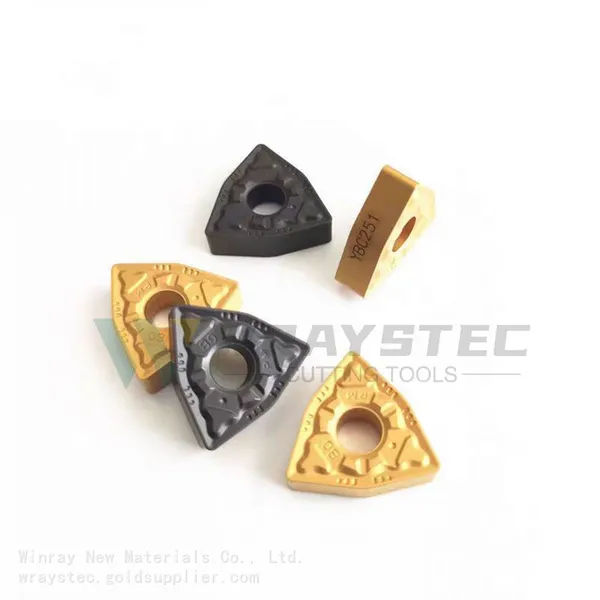

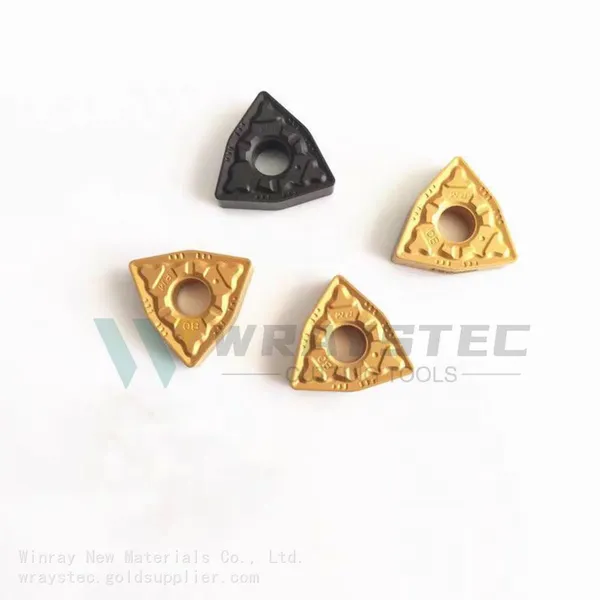

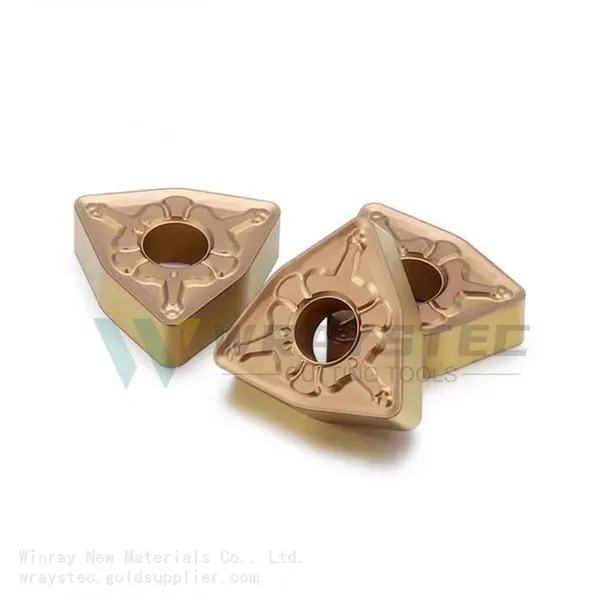

Help CenterCarbide CNC Turning Inserts Wnmg-Dr Wnmg-TM Wnmg-43 Wnml-GM Wnmg-Dm for Steel Machining Cutting, Tungsten Carbide Inserts
Related Products
-
TNMG160404/08/12 CNC Cutting Inserts Triangular Shape for Precision Turning of Steel and Stainless Steel Workpieces (external and Internal Diameters)NegotiableMOQ: 10 Blades -
CCMT09T304/08 Rhombus-shaped 80° Internal Turning InsertNegotiableMOQ: 10 Blades
-
Double-Sided Ammco CB6914-10 Brake Disc Repair Carbide Inserts for Cast IronNegotiableMOQ: 10 Blades
-
Customized PCD/CBN Diamond Cutting Tool Inserts With 35°/45° Tungsten Carbide SubstratesNegotiableMOQ: 10 Blades
-
Carbide CNC Turning Inserts WNMG Series WNMG080408/04/12 Working for EN8 SteelNegotiableMOQ: 10 Blades
The rhombic WNMG insert (especially models WNMG080404, 080408, etc.) is primarily used in the following applications:
External and internal turning:
It is the main tool for machining the outer diameter and inner bore of shaft and sleeve parts.
Due to its rounded cutting edge (R0.8) design, it is particularly suitable for profile turning (following curves), and can closely conform to the curved surface of the workpiece.
1) Intermittent cutting and unstable working conditions:
This is a strong point of the rhombic insert. Its "rhombic" structure provides a larger support area and cutting edge strength than ordinary triangular or rhombic inserts.
If your machine tool has average rigidity, or the workpiece clamping is prone to vibration, using this insert can effectively reduce chipping and improve machining safety.
The "nemesis" of difficult-to-machine materials:
2) Stainless steel machining: Rhombic inserts, usually combined with specialized chip breakers (such as TP3501 grade), are a powerful tool for machining stainless steel (especially austenitic stainless steel), as they can solve the problems of "tool sticking" and "work hardening" in stainless steel machining.
3) Steel and alloy steel: Whether it's ordinary carbon steel (such as 45# steel) or high-strength alloy steel (such as 42CrMo), it can handle the job.
4) High-temperature alloys and hardened steel: Rhombic inserts made of CBN (cubic boron nitride) or ceramic materials can be used for high-speed cutting of extremely hard hardened steel parts.
Factory Showcase
Mainly Inserts Shapes :
Milling Inserts: APMT APKT RDMT RPMT LNMU BLMP SEKT SDMT SOMT SEKN SEEN SPKN TPKN TPKR TPMR 3PKT WNMU SNMU ONMU AOMT JDMT R390 BDMT,etc.
Turning Inserts: CNMG CCMT SNMG SCMT WNMG TNMG TCMT DCMT DNMG VNMG VBMT KNUX,etc.
Grooving Inserts: MGMN MRMN N151 N123 ZTFD TDC2 TDC3 TDC4,etc.
Inserts for aluminium: APGT APKT CCGT DCGT VCGT RCGT SCGT SEHT TCGT ZTED,etc.
Threading Inserts: 11IR 11ER 16ER 16IR 22ER 22IR,etc.

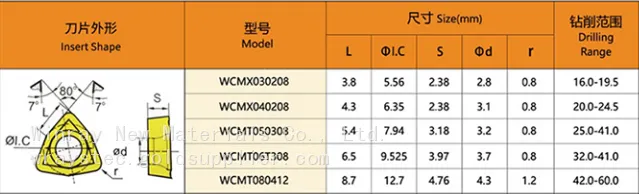

U drill Inserts: SPMT WCMX WCMT,etc.
Delivery and Shipment :
Q&A:
1.Are you trading company or manufacturer?
We are professional manufacturer of cutting tools for more than 20 years.
2.Which shipping method do you usually use?
We usually send goods by express, for big quantity, we can send by sea or by air.
3.Which payment methods do you accept?
4.Can I get a sample to check your quality?
Yes, after confirm the price, you can require sample to check the quality.
We will send you free sample and you charge the shipping cost.
5.How about the delivery time?
For stock items, the delivery time is about 3-5 days.
If run out of stock, the delivery time is about 15-20 days.
If custom items , the delivery time usually is about 30-35 days.
6.What is the minimum order quantity (MOQ)?
The regular MOQ is 10 pieces.
7.Does the packaging support customized LOGO?
Support customized LOGO on the outer box (need to reach a certain quantity)
