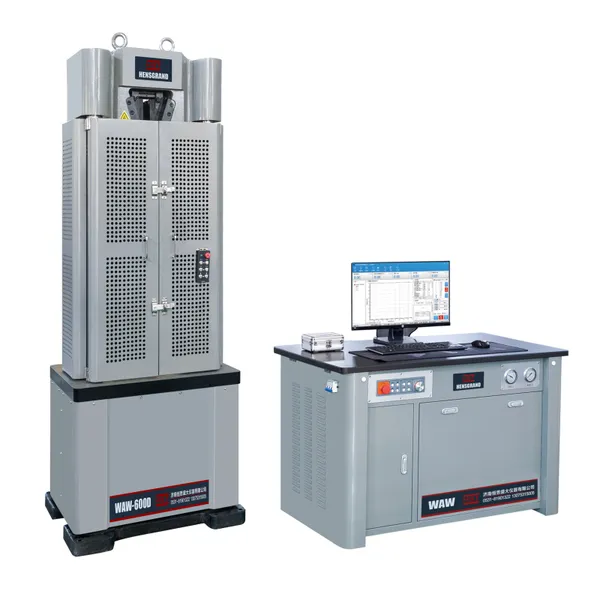

Help CenterNew Design Equipment 1000kn Tensile Compressive Bending Strength 50ton Universal Testing Machine With Ce Certificate
Related Products
-
HST 60T 600kN Computer Control Hydraulic Universal Testing Machine With Spoke Sensor Testing Machine WAW-600EUS$ 11000 - 13200MOQ: 1 Set -
HST 300kN Computer Control Hydraulic Universal Testing Machine Class 0.5 Spoke Sensor 6 Columns Frame Universal Testing WAW-300EUS$ 9400 - 11000MOQ: 1 Set
-
HST 10T 100kN Computer Control Hydraulic Universal Testing Machine Six Column Frame Hydraulic Auto Clamping Fixture WAW-100EUS$ 10000 - 12800MOQ: 1 Set
-
HST CE ISO Certificate 1000kn Tensile Compressive Bending Strength 60ton Universal Testing EquipmentUS$ 8000 - 9500MOQ: 1 Set
-
HST Hydraulic Universal Testing Machine 2000 Kn Computer Hydraulic Universal Testing Machine HST WEW-2000EUS$ 25000 - 30000MOQ: 1 Set
100kn Hydraulic Universal Testing Equipment, Testing Bench
1. Application
Factory Steel Rebar Steel Strip Steel Sheet Tensile Test Equipment for sale is suitable for tension,
compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and nonmetal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
2. Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
|
Model |
WAW-100D |
WAW-200D WAW-300D |
WAW-600D |
WAW-1000D/E |
WAW-1200E |
WAW-2000E |
|||
|
Control Way |
Constant stress uniform deformation constant displacement three closed loop control and program control dealing |
||||||||
|
Number of Screw drivers |
4 |
||||||||
|
Max. Load(KN) |
100 |
200 /300 |
600 |
1000 |
1200 |
2000 |
|||
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
||||||||
|
Load Range |
2%~100%FS |
||||||||
|
Load Resolution |
1/300000 |
||||||||
|
Deformation Measurement Range |
2%~100%FS |
||||||||
|
Deformation Accuracy |
≤± 1% |
||||||||
|
Displacement Resolution |
0.01mm |
||||||||
|
Testing speeds (mm/min) |
0.1~118 |
0.1~123 |
0.1~123 |
0.1~70 |
0.1~70 |
0.1~70 |
|||
|
Adjustable crosshead speed(mm/min) |
450 |
450 |
350 |
350 |
320 |
320 |
|||
|
Displacement Error |
≤±0.5% |
||||||||
|
Max. Piston Stroke(mm) |
200 |
200 |
200 |
200/250 |
250 |
250 |
|||
|
Max. Tension Test Space (mm) |
780 |
780 |
900 |
950/980 |
930 |
1250 |
|||
|
Max. Compression Test Space |
550 |
550 |
650 |
700 |
640 |
850 |
|||
|
Column Effective Spacing(mm) |
485 |
485 |
500 |
560/580 |
610 |
800 |
|||
|
Clamping Method |
Hydraulic Automatic Clamp |
||||||||
|
Flat Specimen Clamping Width(mm) |
80*80 |
80*80 |
90*90 |
100*100 |
120*110 |
150*120 |
|||
|
Compression Plate Size |
Φ 160mm |
||||||||
|
Bending Roller Distance |
450mm |
||||||||
|
Width Of Bending Rollers |
120mm |
||||||||
|
Power Supply |
3-phase, AC380V, 50Hz (Can Be Customized) |
||||||||
