Home > Instruments & Meters > Test Instrument > Test Machine > HST Self Adhesive 90 Degree Peel Strength Testing Machine Laboratory Equipment for Plastic Tensile Test

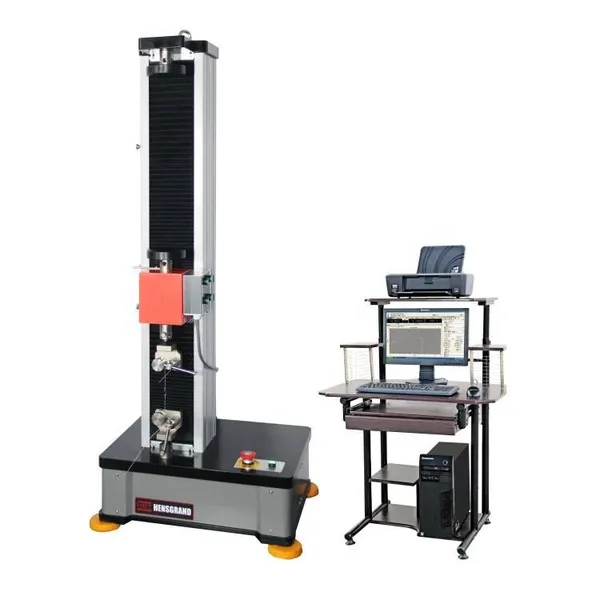

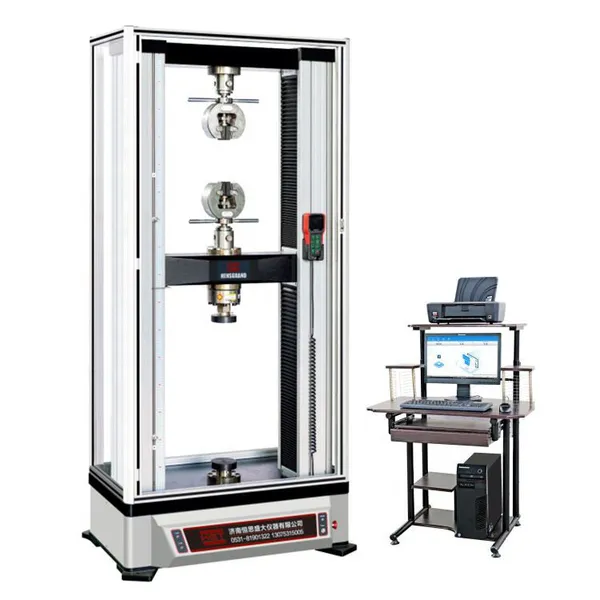

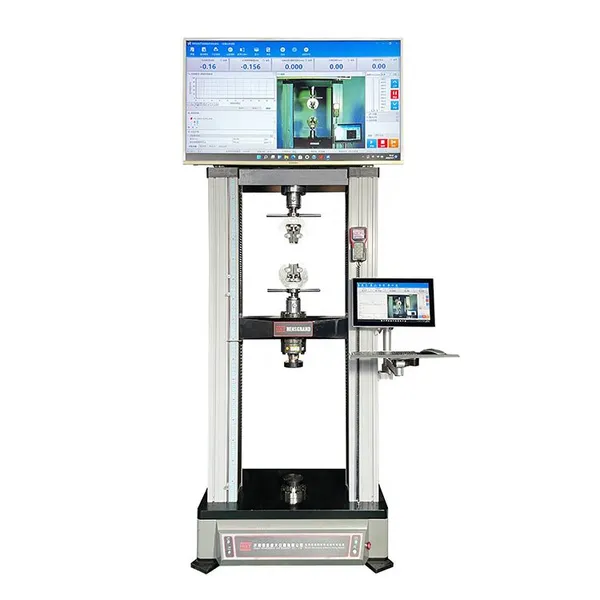

HST Self Adhesive 90 Degree Peel Strength Testing Machine Laboratory Equipment for Plastic Tensile Test
US$ 13995.80
1 - 4 Set
US$ 11896.43
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine, high quality universal tensile test equipment
brand name:
HST
place of origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WDW-1E 500N/1000N/5000N Textile Yarn Tensile Strength TesterUS$ 11196.64MOQ: 1 Set -
HST WDW-S2 2KN LCD Touch Screen Spring Tension Compression TesterUS$ 45486.35 - 48985.30MOQ: 1 Set
-
HST Vertical Manual Tensile Testing Machine Manual Digital Universal Tensile Strength Testing MachineUS$ 41987.40 - 48985.30MOQ: 1 Set
-
HST 100KN Ring Force for Testing Machine Load Cell Calibration, Digital Display Standard DynamometerUS$ 38488.45 - 48985.30MOQ: 1 Set
-
HST Pull Tester/tensometer Utm Material Tester/tensile Load Testing MachineUS$ 34989.50 - 48985.30MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
1.2kw
Voltage
220 V
warranty
1year
testing force
5kn
fixture clamp method:
manual clamp(hydraulic auto clamp)
Load range
2%-100% of full scale
Load resolution
1/200000 1/500000 of full scale
Disp. resolution
0.01mm
test speed
0.05-500mm/min
Tensile space
750mm
Compression space
750mm
test width
375mm
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-
1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
NO. |
Items |
Model |
WDW-10E |
WDW-20E |
WDW-30E |
WDW-50E |
WDW-100E |
||||
1 |
Host |
Structure |
column and 2 Ball Screw |
||||||||
Max. Load(kN) |
10 |
20 |
30 |
50 |
100 |
||||||
Tensile space(mm) |
670 |
700 |
770 |
650 |
|||||||
Compression space(mm) |
900 |
1000 |
1000 |
1000 |
|||||||
Effective test width |
450 |
450 |
450 |
550 |
|||||||
size(mm) |
850 x 590 x 1750 |
840 x 570 x 1850 |
840 x 570 x 1850 |
950x660x2000 |
|||||||
Host Weight (mm) |
370kg |
420kg |
420kg |
680kg |
|||||||
Power Supply |
220V/50-60Hz |
||||||||||
