Home > Instruments & Meters > Test Instrument > Test Machine > WDW-1E 500N/1000N/5000N Textile Yarn Tensile Strength Tester

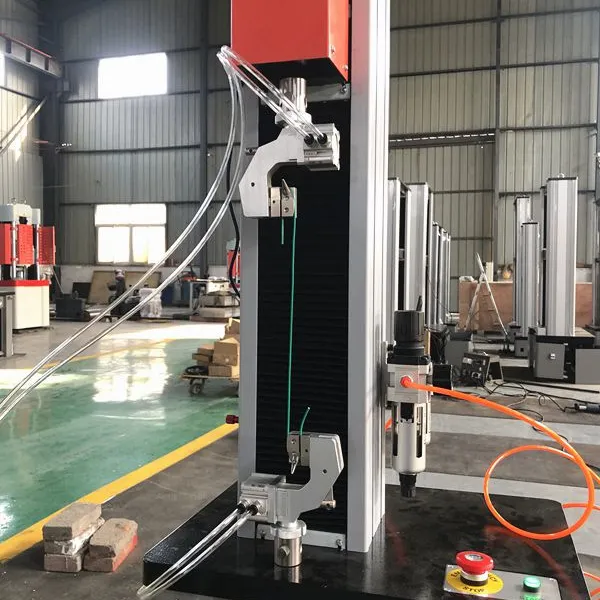

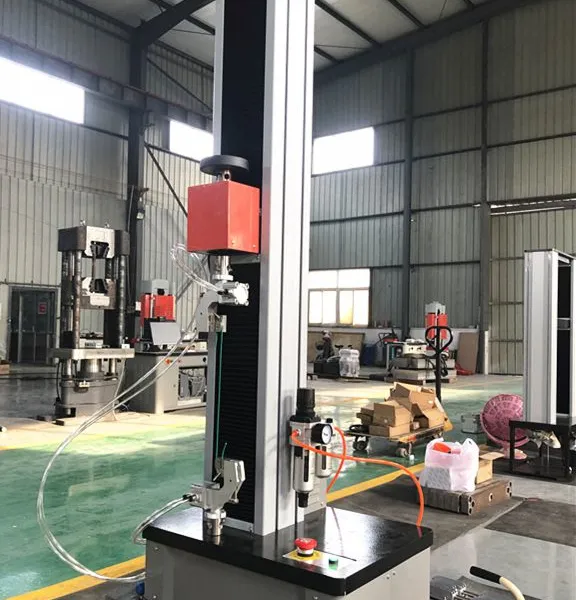

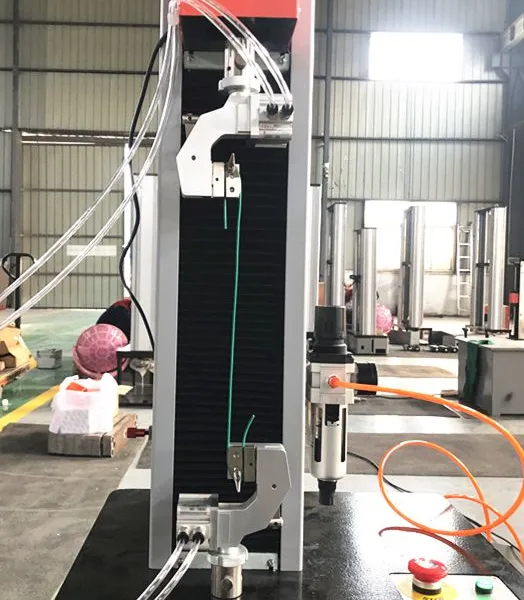

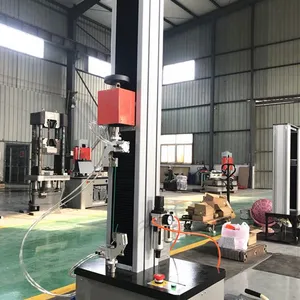

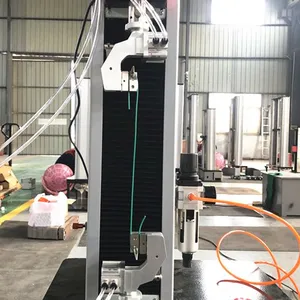

WDW-1E 500N/1000N/5000N Textile Yarn Tensile Strength Tester
US$ 11196.64
≥1 Set
Key Specifications
Get Latest Price
brand name:
HST
place of origin:
Shandong, China
customized support:
OEM, ODM, OBM
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST WDW-S2 2KN LCD Touch Screen Spring Tension Compression TesterUS$ 45486.35 - 48985.30MOQ: 1 Set -
HST Vertical Manual Tensile Testing Machine Manual Digital Universal Tensile Strength Testing MachineUS$ 41987.40 - 48985.30MOQ: 1 Set
-
HST 100KN Ring Force for Testing Machine Load Cell Calibration, Digital Display Standard DynamometerUS$ 38488.45 - 48985.30MOQ: 1 Set
-
HST Pull Tester/tensometer Utm Material Tester/tensile Load Testing MachineUS$ 34989.50 - 48985.30MOQ: 1 Set
-
HST 50kn 100kn 5 Ton 10Ton Digital Display Universal Materials Tensile Testing MachineUS$ 38488.45 - 48985.30MOQ: 1 Set
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
Electronic
warranty
1 year
model number
WDW-01 02 1 2 3 5E
Product name
1000N Textile Yarn Tensile Strength Tester
Test material
Rubber, plastic, fiber, film,polymer, woven, etc
Structure
Single Column
Function
Tensile Compression Bending test
Standard
BS.EN.ASTM
Color
White or blue or OEM
Application
0.5 class
tensile space
600mm
grip
ripple, wedge, winding grip, etc
Products Description
WDW-1E 1kn 2kn 5KN touch screen Adhesive film plastic rubber tensile strength testing machine
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
Technical parameter:
Model |
WDW-02E |
WDW-05E |
WDW-1E |
WDW-2E |
WDW-5E |
||||
Structure |
Single column double spaces |
||||||||
Max. Load(N) |
200 |
500 |
1000 |
2000 |
5000 |
||||
Material |
All aluminum alloy surface spray painting shell |
||||||||
Load accuracy |
ISO 7500 Class 0.5 |
||||||||
Load range |
0.2%～100%F ·S |
||||||||
Load resolution |
1/ 30000 |
||||||||
Resolution of displacement |
0.01mm |
||||||||
Test speed(mm/min) |
0.05-500 stepless arbitrary setting |
||||||||
Speed accuracy |
within ±1% set speed |
||||||||
E-Tensile space(mm) |
600 (can be customized) |
||||||||
E-Compression space(mm) |
600 (can be customized) |
||||||||
D-Test width(mm) |
100 |
||||||||
F-Beam travel distance(mm) |
772 |
||||||||
H-Workbench thickness(mm) |
26 |
||||||||
G-Base height(mm) |
158 |
||||||||
Power supply |
AC220V±10% ，50Hz/60Hz(can be customized) |
||||||||
operating video link |
https://youtu.be/HY7xD6LTbug |
||||||||
