Home > Instruments & Meters > Test Instrument > Test Machine > HST 50kn 100kn 5 Ton 10Ton Digital Display Universal Materials Tensile Testing Machine

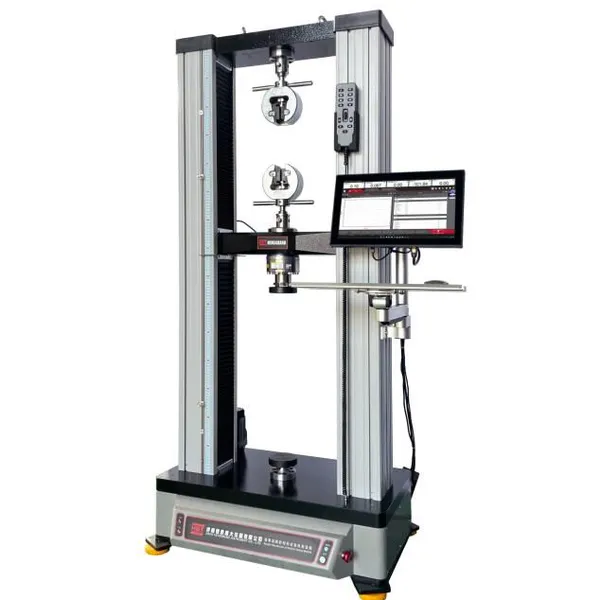

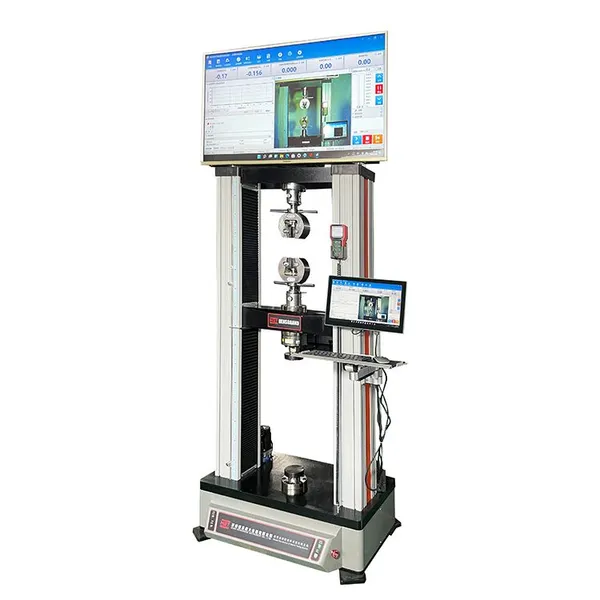

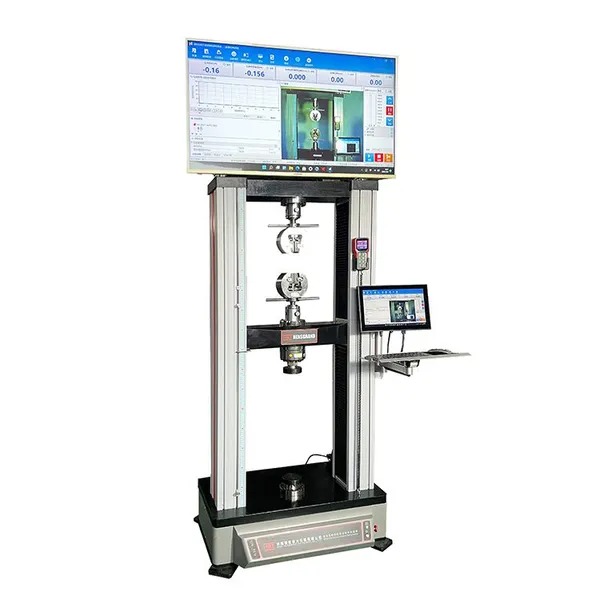

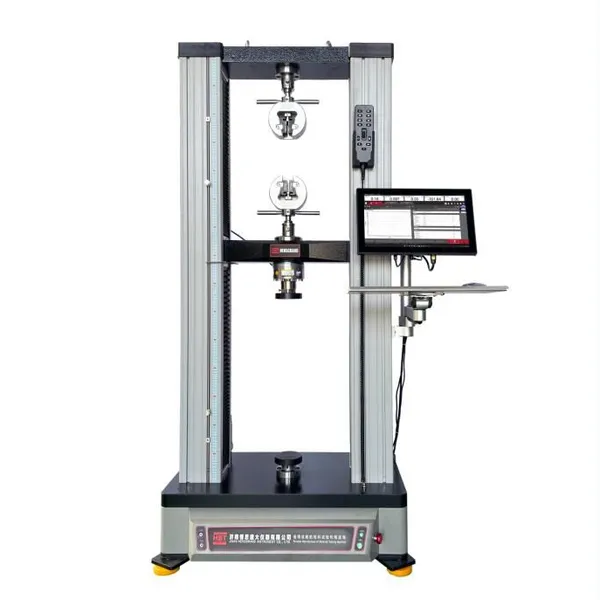

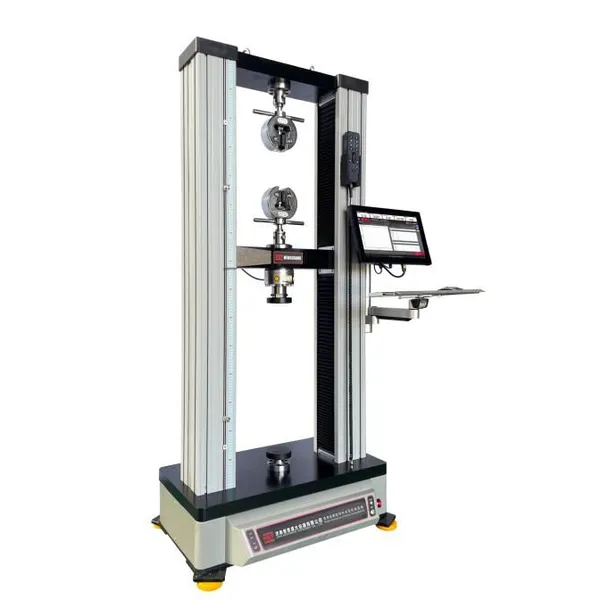

HST 50kn 100kn 5 Ton 10Ton Digital Display Universal Materials Tensile Testing Machine
US$ 48985.30
1 - 4 Set
US$ 38488.45
≥5 Set
Key Specifications
Get Latest Price
Type:
100KN Computer-controlled Electronic Universal Testing Machine, Testing Machine
Warranty:
1year
Brand Name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST Electronic Auto Universal Test Machine for Abrasion Torsion Bending Fatigue Strength TestUS$ 41987.40 - 48985.30MOQ: 1 Set -
Wdw-100e 100kn Touch Screen Universal Testing MachineUS$ 30090.97 - 31490.55MOQ: 1 Set
-
WDW5E Universal Testing Machine Digital Display 5kn 10kn 20kn Wdw100 Fatigue Testing Machine With 1 Year Warranty"US$ 699 - 1899MOQ: 1 Set
-
HST 600kn Steel Rebar Electromechanical Universal Tensile Strength Testing MachineUS$ 4500 - 5000MOQ: 1 Set
-
HST 600kn Electromechanical Universal Tensile Compressive Strength Compression Testing MachineUS$ 4500 - 5000MOQ: 1 Set
Warranty
1year
Brand Name
HST
Place of Origin
Shandong, China
testing force
50kN
fixture clamp method:
manual clamp(hydraulic auto clamp)
Load range
2%-100% of full scale
Load resolution
1/200000 1/500000 of full scale
Disp. resolution
0.01mm
test speed
0.05-500mm/min
Tensile space
750mm
Compression space
750mm
test width
375mm
Customized support
OEM
Voltage
220 V
Power
2kw
Products Description
Application
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components. Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test. include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM D3479, ASTM E517,ASTM D695,ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, etc.
Safety Divice
Stroke protection: Machinery,computer double protection, prevent over preset; Force protection: system setting
Emergency stop device: handing emergencies
NO. |
Items |
Model |
WDW-10E |
WDW-20E |
WDW-30E |
WDW-50E |
WDW-100E |
||||
1 |
Host |
Structure |
column and 2 Ball Screw |
||||||||
Max. Load(kN) |
10 |
20 |
30 |
50 |
100 |
||||||
Tensile space(mm) |
670 |
700 |
770 |
650 |
|||||||
Compression space(mm) |
900 |
1000 |
1000 |
1000 |
|||||||
Effective test width |
450 |
450 |
450 |
550 |
|||||||
size(mm) |
850 x 590 x 1750 |
840 x 570 x 1850 |
840 x 570 x 1850 |
950x660x2000 |
|||||||
Host Weight (mm) |
370kg |
420kg |
420kg |
680kg |
|||||||
Power Supply |
220V/50-60Hz |
||||||||||
