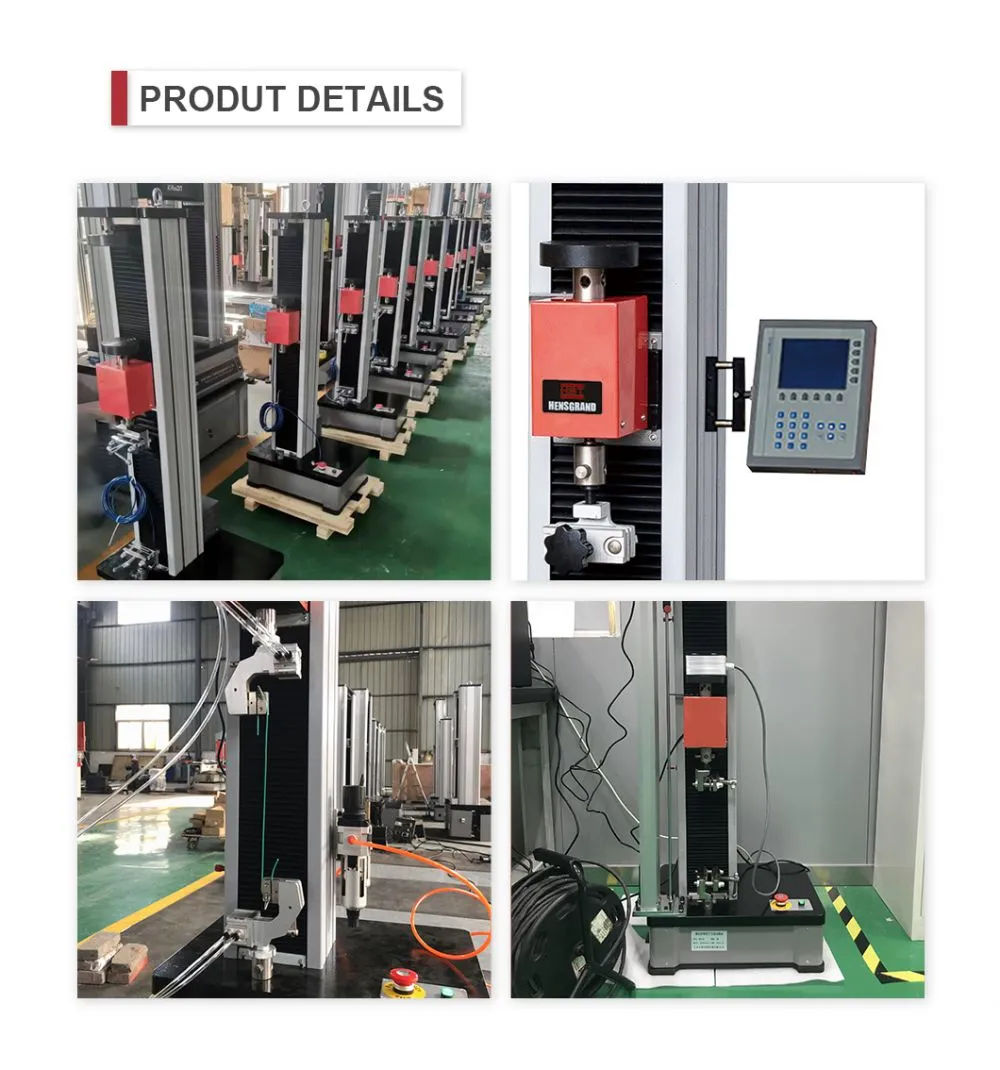

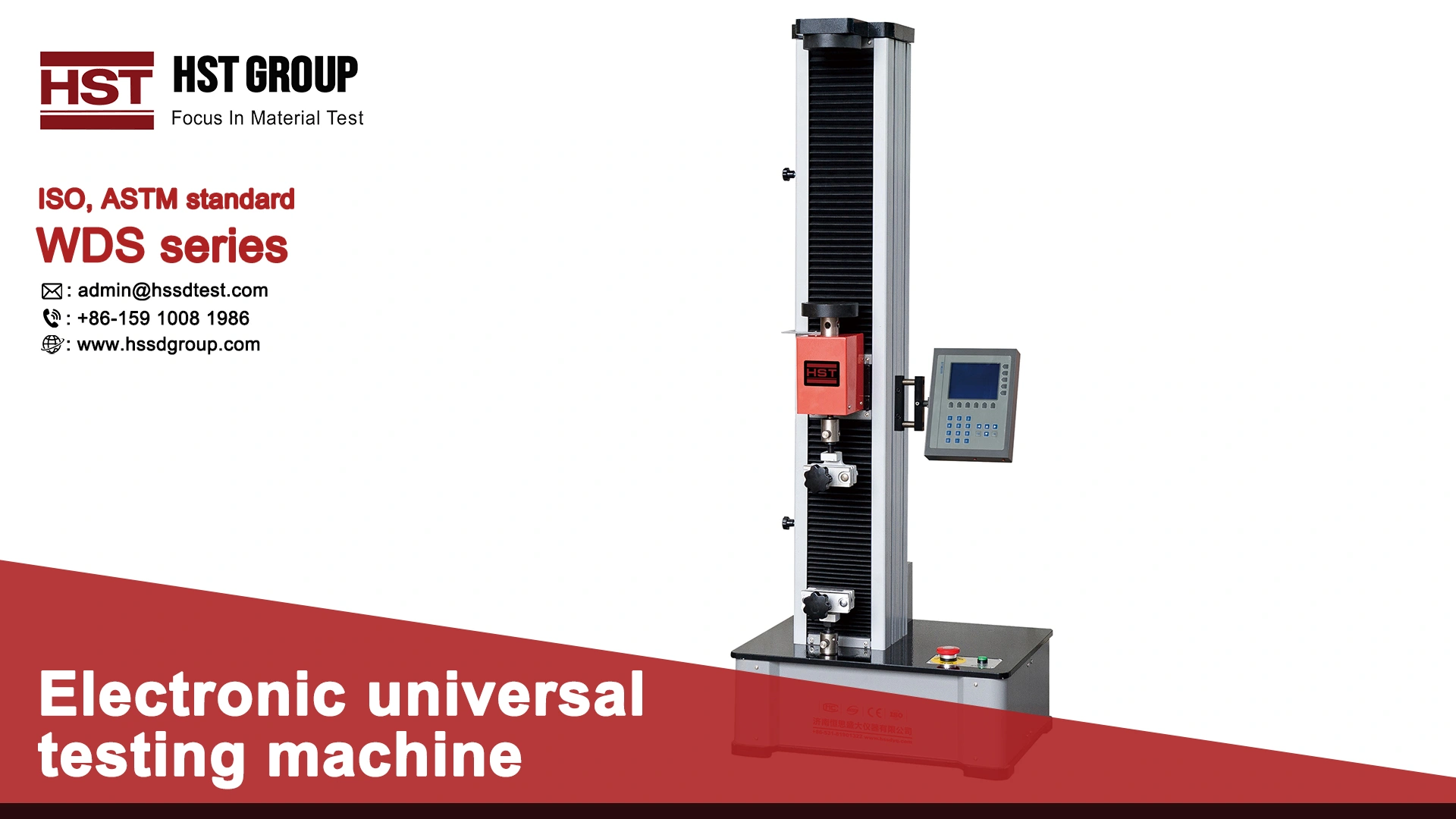

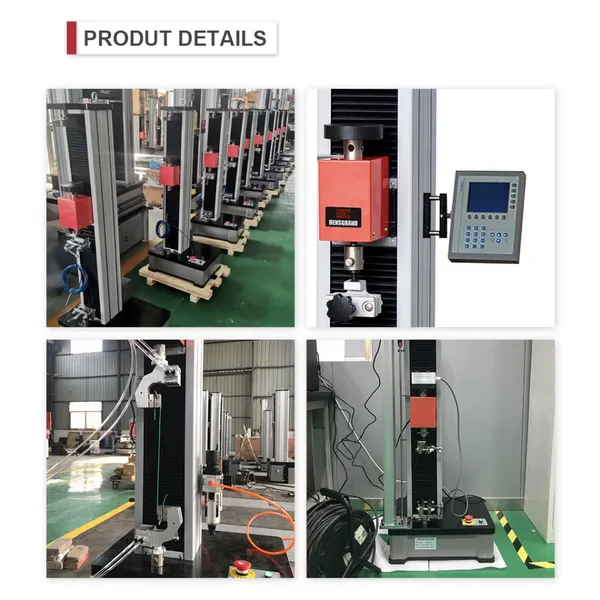

HST WDS-1E 1KN Touch Screen Display
Electromechanical universal testing machine
Product Description
1. Introduction
WDS series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension, compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components.
2. Application range
Ø Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Ø Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Ø Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1
2.1 Rigid and reinforced Plastics/ Composites:
Ø EN ISO 6259 - parts 1/2/3 Determination of tensile properties of thermoplastic pipes;
Ø EN ISO 527-1 - parts 1/2/3 Determination of tensile properties on plastics;
Ø ASTM D638 Standard Test Method for Tensile Properties of Plastics
Ø ISO 604 Plastics - determination of compressive properties
Ø ASTM D695- Plastics -- Standard Test Method for Compressive Properties of Rigid Plastics
Ø EN ISO 9969 Determination of ring stiffness on thermoplastic pipes;
Ø ISO 14125 Flexural Properties of Fiber-Reinforced Plastic Composites
Ø ASTM D3846 Standard Test Method for In-Plane Shear Strength of Reinforced Plastics;
Ø EN ISO 13968 Plastics piping and ducting systems -Thermoplastics pipes-Determination of ring flexibility;
Ø EN ISO 844 Determination of compression properties;
2.2 Geo-textiles：
Ø BS EN ISO 10319 Geotextiles —Wide-width tensile test;
Ø ASTM D3950 Standard Specification for Strapping, Nonmetallic (and Joining Methods);
Ø JBT 8521(EN 1492-2): Textile slings. Safety. Round slings, made of man-made fibers, for general purpose use;
Ø ASTM D 6775-02 Standard Test Method for Breaking Strength and Elongation of Textile Webbing, Tape and Braided Material;
3. Specifications:
MODEL |
WDS-1E |
Load Capacity |
1000N |
Calibration standard |
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
|
Testing Load Accuracy |
±0.5% |
Testing Load Range |
0.4%-100%FS |
Load Resolution |
1/500,000FS
|
|
Deformation measuring range
|
0.2%—100%FS |
|
Deformation accuracy
|
≤±0.5%
|
|
Deformation resolution
|
1/±500000FS of the max deformation |
|
Position accuracy
|
Within ±0.5% of the value
|
|
Displacement resolution
|
0.01mm |
|
Crosshead speed range (mm/min) |
0.001-500mm/min |
|
Crosshead speed accuracy
|
≤±0.2％ of set speed
|
Crosshead Travel |
1000mm |
Max. Tensile Testing Space |
600mm/ 800mm (height model) |
Max. Compression Testing Space |
600mm/ 800mm (height model) |
Compression Platen |
Ф100mm |
Power Supply |
AC220V±10%, 50Hz/60Hz |
Overall Dimensions (L*W*H) |
520*400*1340mm |
Weight |
110kg |
|
Note: *Extra wide and/or extra height frames are available. *Power supply system is completely customizable. *Tensile space, test width, and speed is completely customizable. |
