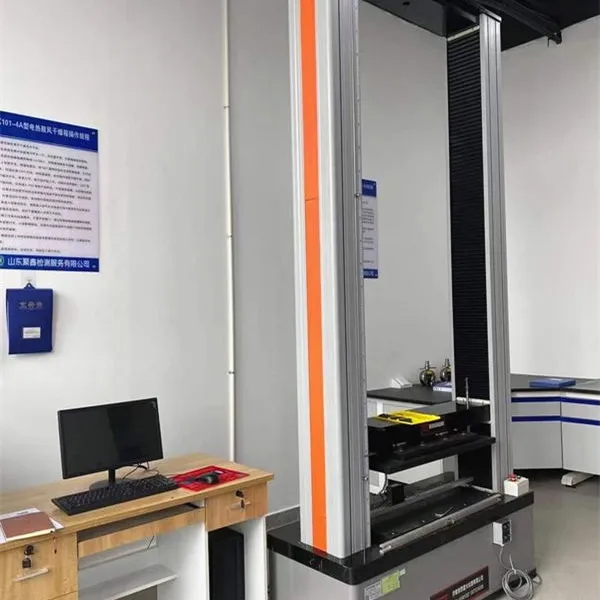

Heavy-Duty HGW Series Pipe Ring Stiffness Machine for Helical/Corrugated Pipes, 50-300KN
US$ 111266.61
1 - 4 Set
US$ 69279.21
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
0.5
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dual Space HGW Testing Machine: Ring Stiffness/Softness/Compression for Structured-Wall PipesUS$ 69279.21 - 111266.61MOQ: 1 Set -
300KN HST-HGW Pipe Ring Stiffness Tester for Thermoplastic Tubes, EN 10002-4 & ISO75000-1US$ 69279.21 - 111266.61MOQ: 1 Set
-
Computerized Dual Space HGW Ring Stiffness Tester for Corrugated/Spiral Pipes, 20KN-300KNUS$ 69279.21 - 111266.61MOQ: 1 Set
-
HGW Series Dual Space Computer Control Ring Stiffness Tester for PE Pipes, ASTM/ISOUS$ 69279.21 - 111266.61MOQ: 1 Set
-
1 Ton 10KN UTM Universal Materials Testing Machine for Ring StiffnessUS$ 39188.24 - 40587.82MOQ: 1 Set
Accuracy
0.5
brand name
HST
place of origin
Shandong, China
customized support
OEM, ODM, OBM
power
/
Protection Class
IP55
Voltage
220 V
warranty
1 year
Max test force
Pipe Ring Stiffness Testing machine
Load accuracy
≤±1%
Load resolution
1/300000 of full scale
Disp. resolution
0.04μm
Test speed
0.005-500mm/min stepless arbitrary setting
Color
white and blue (customized)
clamp type
Manual clamp (pneumatic/hydraulic clamp for choice)
Test width
550mm
Tensile space
n space: 700mm (can be customized)
Motor
TaiWan TECO AC Servo Motor
Products Description
Application
HGW series (Dual Space) Pipe Ring Stiffness Testing Machine, is mainly used to determine ring stiffness,ring softness and compression of thermoplastic pies having circular cross-section. It conforms to the requirements of all kinds of plastic pipes, such as structured-wall pipes, PE corrugated pipes, helically wound pipes, etc.
Standards
The machine can meet ISO9969, ISO5893, ASTM D638, ASTM D790, ISO37, ASTM E4, ISO6892, ISO75000-1, EN 10002-4 standards and so on.Specification:
Model |
HGW-20E |
HGW-50E |
HGW-100E |
HGW-200E |
HGW-300E |
||||
Max. Load(KN) |
20 |
50 |
100 |
200 |
300 |
||||
Calibration standard |
Class 0.5 |
||||||||
Testing Load Accuracy |
±0.5% |
||||||||
Load range |
0.4%~100% F.S |
||||||||
Load Resolution |
1/500,000FS |
||||||||
Displacement resolution |
0.001mm |
||||||||
Crosshead speed |
±0.5% of set speed |
||||||||
Pipe diameter range |
Customized(110mm-3000mmm) |
||||||||
Effective testing width |
Customized (according pipe diameter Custom) |
||||||||
Compression Testing Space(mm) |
Customized (According pipe diameter Custom) |
||||||||
Position limit switch |
Upper and lower lights |
||||||||
Power supply |
AC220V±10%, 50Hz/60Hz |
||||||||
