Home > Instruments & Meters > Test Instrument > Test Machine > 1 Ton 10KN UTM Universal Materials Testing Machine for Ring Stiffness

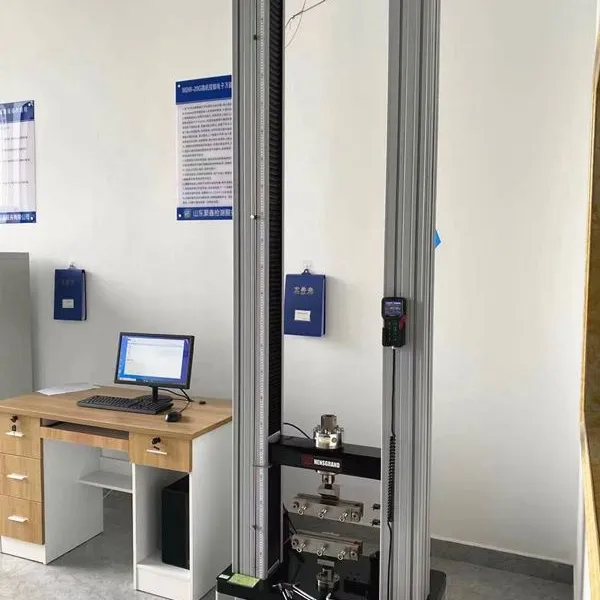

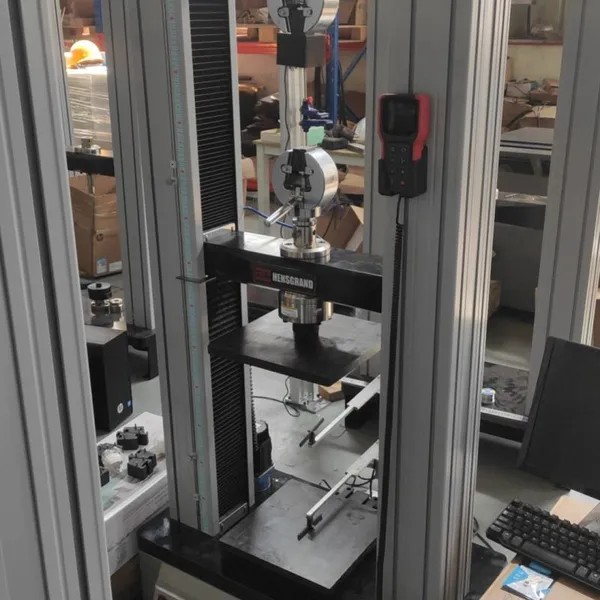

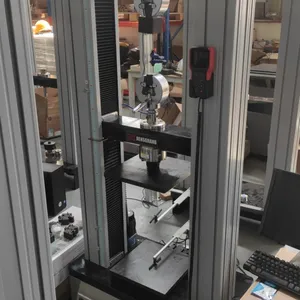

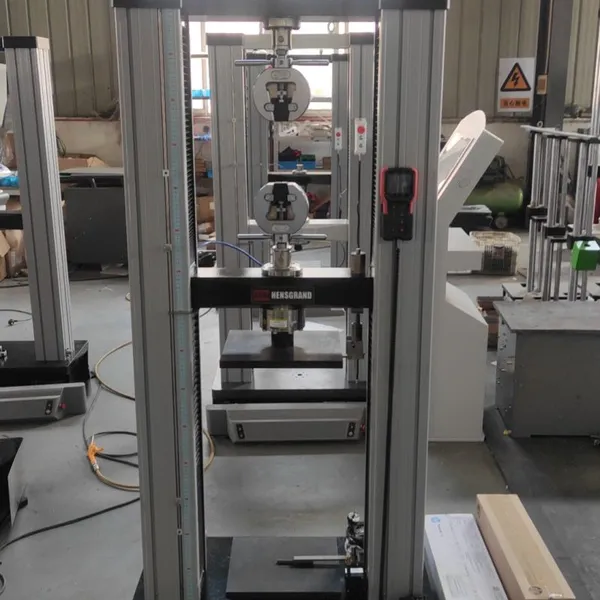

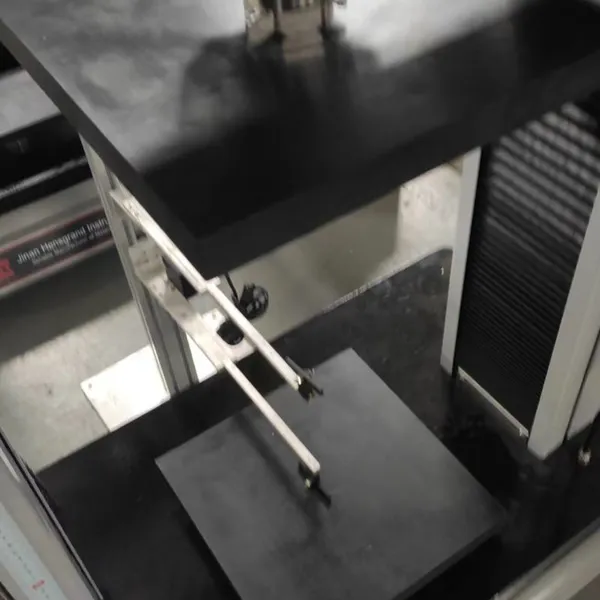

1 Ton 10KN UTM Universal Materials Testing Machine for Ring Stiffness
US$ 40587.82
1 - 4 Set
US$ 39188.24
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
brand name:
HST
place of origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM E4 & ISO37 Certified HGW Dual Space Tester: Ring Stiffness/Compression AnalysisUS$ 69279.21 - 111266.61MOQ: 1 Set -
100KN Glass Fiber PE Reinforced Pipes Ring Stiffness Compression Universal Testing MachineUS$ 39188.24 - 40587.82MOQ: 1 Set
-
New Design 20kn 50kn 100kn Universal 20kn-300kn Testing Machine Carton Compression Test Equipment With Great PriceNegotiableMOQ: 1
-
HST Computer Plastic Pipe Ring Stiffness Flexibility Test MachineNegotiableMOQ: 1
-
Plastic Pipe Ring Stiffness Flexibility Test MachineNegotiableMOQ: 1
brand name
HST
place of origin
Shandong, China
Application
Universal Testing
customized support
OEM, ODM, OBM
power
1
Voltage
220 V
warranty
1 year
Max test force
Geotextile tensile Test Machine
Load accuracy
≤±1%
Load resolution
1/300000 of full scale
Disp. resolution
0.04μm
Test speed
0.005-500mm/min stepless arbitrary setting
Color
white and blue (customized)
clamp type
Manual clamp (pneumatic/hydraulic clamp for choice)
Test width
550mm
Tensile space
n space: 700mm (can be customized)
Motor
TaiWan TECO AC Servo Motor
Products Description
Application
HGW series (Dual Space) Pipe Ring Stiffness Testing Machine, is mainly used to determine ring stiffness,ring softness and compression of thermoplastic pies having circular cross-section. It conforms to the requirements of all kinds of plastic pipes, such as structured-wall pipes, PE corrugated pipes, helically wound pipes, etc.
Standards
The machine can meet ISO9969, ISO5893, ASTM D638, ASTM D790, ISO37, ASTM E4, ISO6892, ISO75000-1, EN 10002-4 standards and so on.Specification:
Model |
HGW-20E |
HGW-50E |
HGW-100E |
HGW-200E |
HGW-300E |
||||
Max. Load(KN) |
20 |
50 |
100 |
200 |
300 |
||||
Calibration standard |
Class 0.5 |
||||||||
Testing Load Accuracy |
±0.5% |
||||||||
Load range |
0.4%~100% F.S |
||||||||
Load Resolution |
1/500,000FS |
||||||||
Displacement resolution |
0.001mm |
||||||||
Crosshead speed |
±0.5% of set speed |
||||||||
Pipe diameter range |
Customized(110mm-3000mmm) |
||||||||
Effective testing width |
Customized (according pipe diameter Custom) |
||||||||
Compression Testing Space(mm) |
Customized (According pipe diameter Custom) |
||||||||
Position limit switch |
Upper and lower lights |
||||||||
Power supply |
AC220V±10%, 50Hz/60Hz |
||||||||
