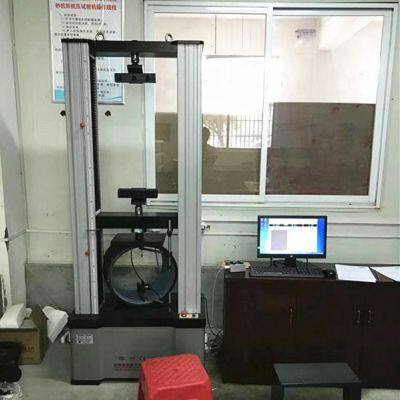

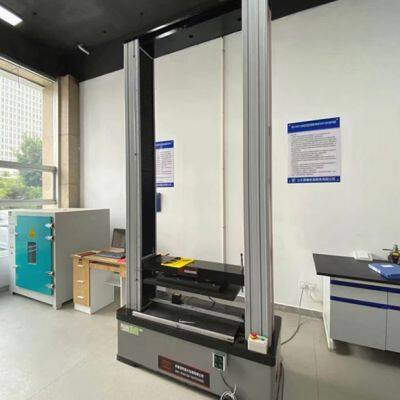

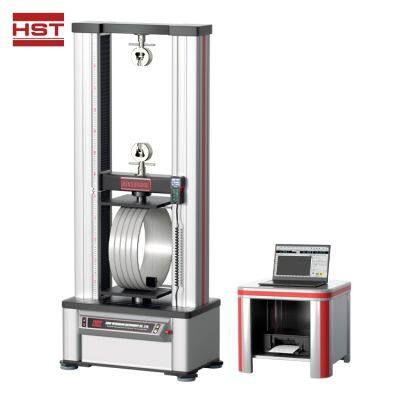

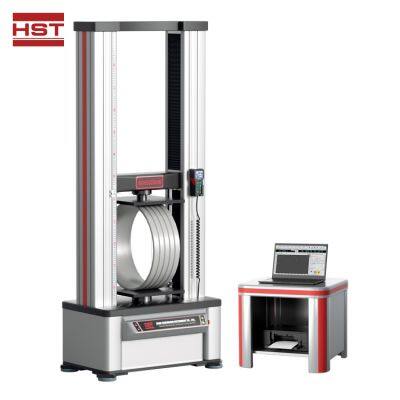

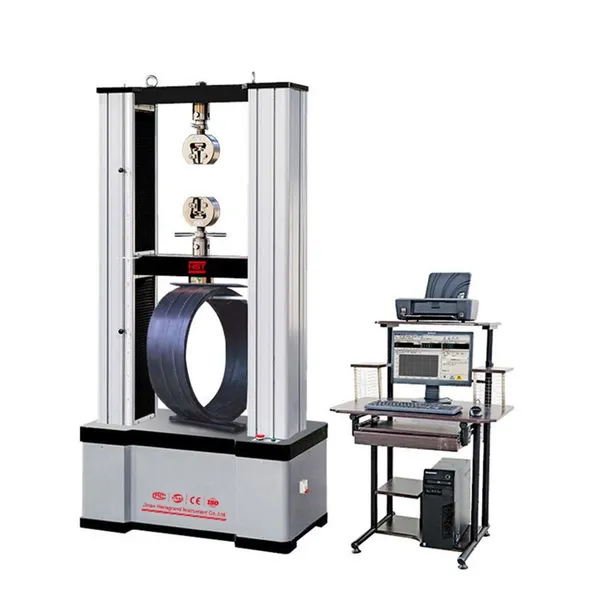

HST-HGW Series Computer control
Pipe Ring Stiffness Testing machines
1. Application
HGW series (Dual Space) Pipe Ring Stiffness Testing Machine, is mainly used to determine ring stiffness,ring softness and compression of thermoplastic pies having circular cross-section. It conforms to the requirements of all kinds of plastic pipes, such as structured-wall pipes,PE corrugated pipes, helically wound pipes,etc.
2. Standards:
The machine can meet ISO9969, ISO5893, ASTM D638, ASTM D790, ISO37, ASTM E4, ISO6892, ISO75000-1, EN 10002-4 standards and so on.
3. Specifications:
|
Model |
HGW-10E |
HGW-50E |
HGW-100E |
HGW-200E |
HGW-300E |
|
Max. Load(KN) |
10 |
50 |
100 |
200 |
300 |
|
Calibration standard |
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
||||
|
Testing Load Accuracy |
±0.5% |
||||
|
Load range |
0.4%~100% F.S |
||||
|
Load Resolution |
1/500,000FS
|
||||
|
Test control mode |
Three closed loop control, stress, strain and displacement |
||||
|
Displacement accuracy |
Within ±0.5% of the value |
||||
|
Deformation accuracy
|
≤±0.5% of 0.4%~100% of rated capacity
|
||||
|
Displacement resolution |
0.04μm |
||||
|
Test speed(mm/min) |
0.001-1000 |
0.001-1000 |
0.001-500 |
0.001-500 |
0.001-500 |
|
Crosshead speed |
±0.5% of set speed |
||||
|
Pipe diameter range |
Customized(110mm-3000mmm) |
||||
|
Effective testing width |
450mm (according pipe diameter Custom) ) ) |
||||
|
Compression Testing Space(mm) |
700mm (According pipe diameter Custom) ) |
||||
|
Position limit switch |
Upper and lower lights |
||||
|
Power supply |
AC220V±10%, 50Hz/60Hz |
||||
|
Note: *Extra wide and/or extra height frames are available. *Power supply system is completely customizable. *Tensile space, test width, and speed is completely customizable. |
|||||

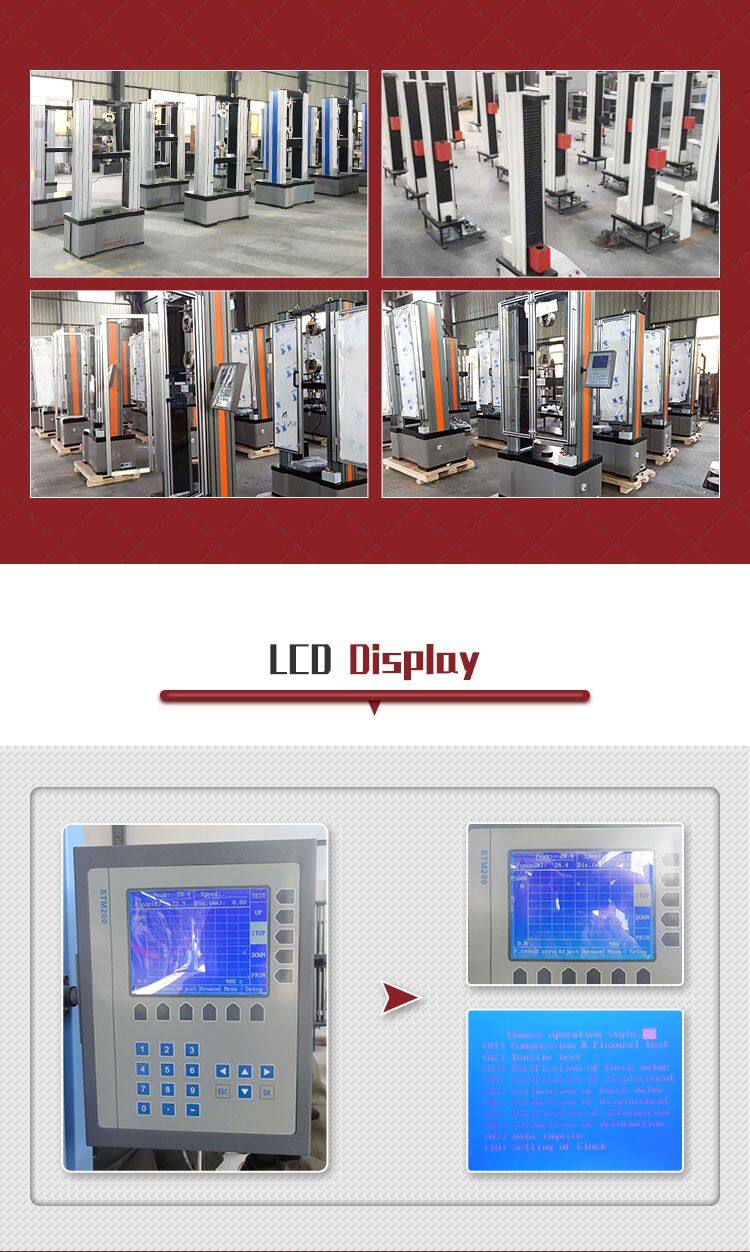

We have digital model and computer control models for choice:
