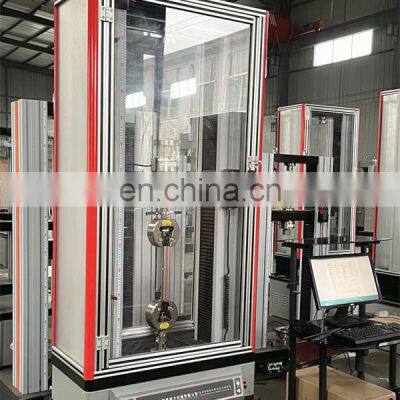

Help CenterHST Computer Plastic Pipe Ring Stiffness Flexibility Test Machine
Related Products
-
Plastic Pipe Ring Stiffness Flexibility Test MachineNegotiableMOQ: 1 -
Tubular Pipe Ring Loop Stiffness Flexibility Test EquipmentNegotiableMOQ: 1
-
50KN Plastic Pipe Tires Ring Stiffness Testing Machine/Universal Testing Machine FactoryUS$ 21693.49 - 22393.28MOQ: 1 Set
-
HGW-100E ISO5893 100kn 10T Plastic Tube Ring Loop Stiffness Flexibility Testing EquipmentUS$ 3699 - 5899MOQ: 1 Set
-
HGW-100E ISO5893 100kn 10T Plastic Tube Ring Loop Stiffness Flexibility Testing MachineUS$ 3699 - 5899MOQ: 1 Set
HGD Factory Customized Digita Tubel Ring Loop Stiffness Flexibility Tester
Application:
It is
1. Application:
This machine is mainly used for various pipe ring stiffness, flexibility and flat, Central test, based on customers ' special needs can also increase tensile, compression, bending, and functional tests, is a multifunctional electronic universal testing machine.
2. Main unit
2..1 The machine uses double floor-space structure, driven by servo motor, servo motor drives the mobile beam moves up and down through a transmission mechanism to achieve the test loading process. Divided into two models lower for tensile, upper for compression,upper for tensile, lower for compression, double space. lifting beams can variable speed.
2.2 Arc belt wheel and ball screw drive is smooth seamless transmission, resulting in strain rate test force and precise control, smooth transmission, fast response, low noise.
2.3 The upper end of the screw is provided with optical encoder, which is used to move the beam displacement detection, high resolution, anti-interference ability.
3. Feature:
This series of testing machine use computer control the test ,servo motor to drive high-precision lead screw, so that drive beams up and down. It has the protective function when over-voltage, over-current or overloading. It is mainly used for plastic pipe stiffness with a circular cross-section and flat detection tests. Therefore, it is the absolutely necessarily testing instruments for every section in institutes, quality inspection departments and pipe manufacturers.
4. Technical parameter:
|
Max test force(KN) |
50kN |
|
Accuracy |
1 class |
|
Control model |
Computer automatic control |
|
Compression space(mm) |
0-800 (can customized) |
|
Effective test width(mm) |
450mm (can customized) |
|
Load test range |
2%~100%FS |
|
Displacement test range |
2%~100%FS |
|
Test force accuracy |
Better than±1% |
|
Deformation accuracy |
Better than ±1% |
|
Displacement precision |
Better than ±1% |
|
Displacement resolution |
0.005mm |
|
Displacement rate adjusting range (mm/min) |
0.05-500 |
|
Patterned deformation control accuracy |
Better than ±1% |
|
Power |
1kw, 220 V ±10% |
|
Weight (Kg) |
450 |
