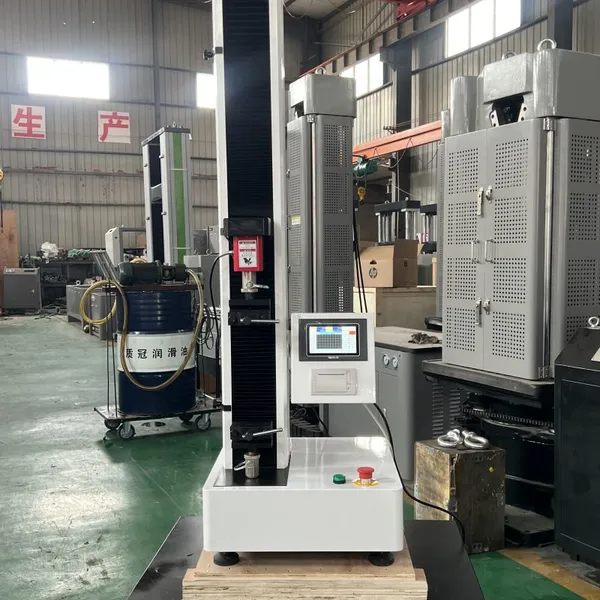

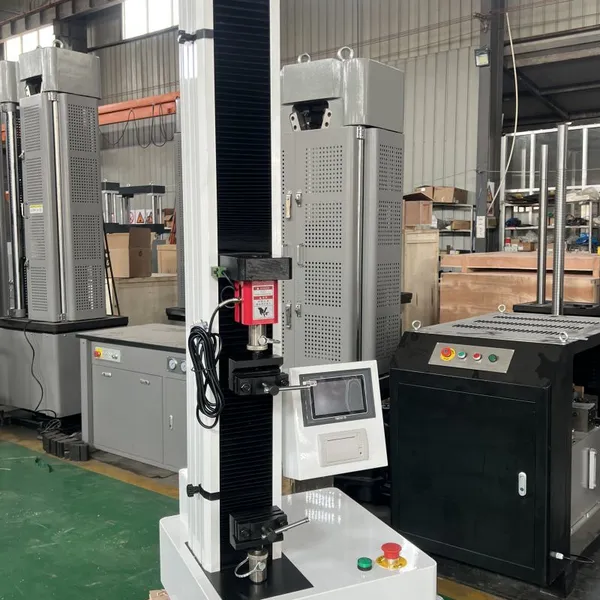

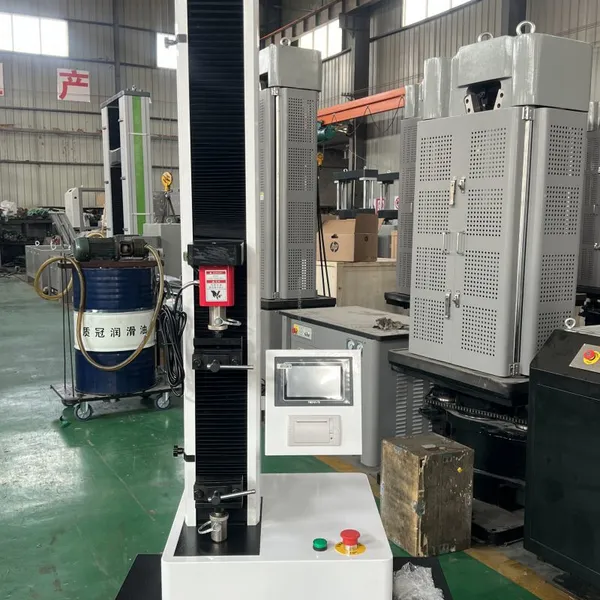

HST WDS-01 Manual Digital 100n universal tensile testing machine
1. Application:
WDS series digital display Single Yarn Strength Tester are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of material for tensile, compression, bending, shearing and low cycle test. It is for metal, rubber, plastic, spring, textile, and components testing. Widely used in the corresponding industries, research and development, test institutes and training centers etc.
2. Features of Tensile Strength Testing Machine
1. Automatic calibration: system can automatically realize the accuracy of the calibration value
2. Automatic stop: After the sample broken, automatic stop.
3. Automatic display: Real-time display testing force, displacement, testing speed, peak value, testing status on one LCD.
4. Automatic return: beam automatic return to initial position when testing finished.
5. Breakage judgment: sample after fracture,beam automatic stop moving
6. Limiting protection: Program control and Mechanical limiting protection.
7.Overload protection: When more than 3 ~ 5% of the rated load device automatically stop working
8. Automatic calculation: automatic calculation area after input sample diameter (round); Width, thickness (flat), sample gauge . ect
3. Technical parameter:
|
Model |
WDS- 005 |
WDS -01 |
WDS- 02 |
WDS- 05 |
WDS- 1 |
WDS- 2 |
WDS- 3 |
WDS- 5 |
|
Max load |
50 |
100 |
200 |
500 |
1000 |
2000 |
3000 |
5000 |
|
Structure |
Single column double spaces (Upper |
|||||||
|
Control mode |
single chip control |
|||||||
|
Test accuracy |
1 class ( or 0.5class) |
|||||||
|
Test force test range(F·S) |
2%~100%F·S (or 0.4%-100%F.S ) |
|||||||
|
Test force value relative error (%) |
≤±1% (or ≤±0.5% ) |
|||||||
|
Disp. Value relative error(%) |
≤±1% |
|||||||
|
Disp. Resolution (mm) |
0.01mm |
|||||||
|
Speed adjusting range |
0.05-500mm/min(stepless speed adjusting) |
|||||||
|
Disp. Value relative error(%) |
Standard: 600mm, heighten: 850mm(can customize) |
|||||||
|
Disp. Resolution (mm) |
Standard 600mm, heighten: 850mm(can customize) |
|||||||
|
Main unit power |
AC220V±10%,50Hz |
|||||||
|
Dimension |
550×400×1600mm |
|||||||
|
Weight |
About 100kg |
|||||||
