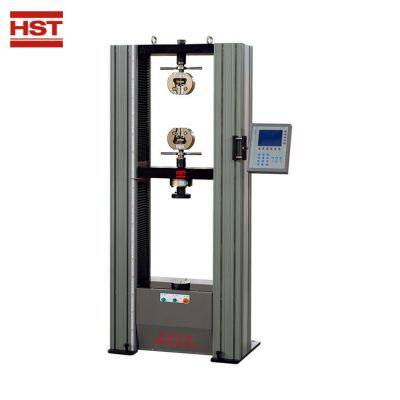

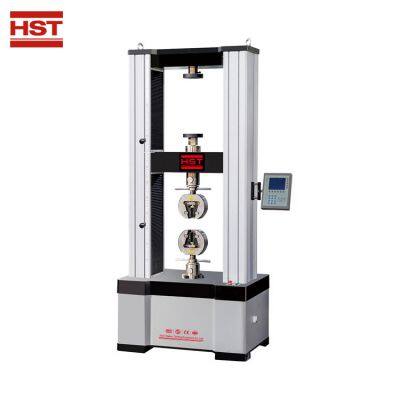

HST-WDS-30E 30KN Touch Screen Display Electronic Universal Testing Machine 30KN Electronic Universal Testing Machine
US$ 3000
1 - 2 Set
US$ 1000
≥3 Set
Key Specifications
Get Latest Price
Type:
Electronic Compression Testing Machine
Platens Size:
Ø100 mm
Resolution:
0.001 N
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-WDS-10E 10KN Touch Screen Display Electronic Universal Testing Machine 10KN Electronic Universal Testing MachineUS$ 1000 - 2000MOQ: 1 Set -
ISO 527 Rubber Testing Equipment - Computerized 5KN Universal Tester With Digital DisplayUS$ 22393.28 - 24492.65MOQ: 1 Set
-
200N Electromechanical Universal Testing Machine With Single Column Digital Display Electronic Power 1-Year WarrantyUS$ 899 - 4419MOQ: 1 Set
-
HST ASTM D882 90 Degree Resistance Test Equipment and 180 Peel Testing MachineUS$ 10496.85 - 13995.80MOQ: 1 Set
-
HST High Precision Universal Test Machine Multi Function Universal Test Machine Digital DisplayUS$ 41987.40 - 48985.30MOQ: 1 Set
Platens Size
Ø100 mm
Resolution
0.001 N
Model Number
HST-WDS-30E
Brand Name
HST
Place of Origin
Shandong, China
Input Voltage
220 V
Product name
Touch Screen Display Electronic Universal Testing Machine
Model
HST-WDS-30E
Load capacity (kN)
30
Calibration standard
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4
Testing Load Accuracy
±0.5%
Testing Load Range
0.4%-100%FS
Load Resolution
1/500,000FS
Deformation measuring range
0.2%-100%FS
Deformation accuracy
≤±0.5%
Max. Tensile Testing Space
770mm
HST-WDS-30E 30KN Touch Screen Display
Universal Testing Machine
If you want to know more models, price please contact Lisa:
Email: lisa@hssdtest.com Whatsapp/Wechat: 008615866783008
Products Description
Application :
ETM series electromechanical testing machines offer force, displacement or deformation closed loop testing in tension,
compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips,
fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber,
plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and
medical, electronic and other components.
compression, flexure, shear, tear and peel etc. The machine can be equipped with a variety of accessories including: grips,
fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber,
plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and
medical, electronic and other components.
Application range
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN61010-1
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.
Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN61010-1
2.1 Rigid and reinforced Plastics/ Composites:
EN ISO 6259 - parts 1/2/3 Determination of tensile properties of thermoplastic pipes;
EN ISO 527-1 - parts 1/2/3 Determination of tensile properties on plastics;
ASTM D638 Standard Test Method for Tensile Properties of Plastics
ISO 604 Plastics - determination of compressive properties
ASTM D695- Plastics -- Standard Test Method for Compressive Properties of Rigid Plastics
EN ISO 9969 Determination of ring stiffness on thermoplastic pipes;
ISO 14125 Flexural Properties of Fiber-Reinforced Plastic Composites
ASTM D3846 Standard Test Method for In-Plane Shear Strength of Reinforced Plastics;
EN ISO 13968 Plastics piping and ducting systems -Thermoplastics pipes-Determination of ring flexibility;
EN ISO 844 Determination of compression properties;
2.2 Geo-textiles：
BS EN ISO 10319 Geotextiles —Wide-width tensile test;
ASTM D3950 Standard Specification for Strapping, Nonmetallic (and Joining Methods);
JBT 8521(EN 1492-2): Textile slings. Safety. Round slings, made of man-made fibers, for general purpose use;
ASTM D 6775-02 Standard Test Method for Breaking Strength and Elongation of Textile Webbing, Tape and Braided Material;
2.3 Metal：
ASTM E8 Standard Test Methods for Tension Testing of Metallic Materials;
ISO 6892 Metallic materials — Tensile testing — Method of test at ambient temperature;
BS EN 10002-1Determination of tensile properties on metals;
BS EN 10002-5: Metallic materials —Part 5: Method of test at elevated temperatures;
ASTM E21: Standard Test Methods for Elevated Temperature Tension Tests of Metallic Materials;
IS0 783: Metallic materials -Tensile testing at elevated temperature;
EN ISO 7438 Determination of flexure tests on metals;
ASTM F606: Standard Test Methods for Determining the Mechanical Properties of Externally and Internally Threaded Fasteners,
Washers, Direct Tension Indicators, and Rivets;
ISO 14589: Blind rivets - Mechanical testing;
SAE J429: Mechanical and Material Requirements for Externally Threaded Fastener;
EN ISO 6259 - parts 1/2/3 Determination of tensile properties of thermoplastic pipes;
EN ISO 527-1 - parts 1/2/3 Determination of tensile properties on plastics;
ASTM D638 Standard Test Method for Tensile Properties of Plastics
ISO 604 Plastics - determination of compressive properties
ASTM D695- Plastics -- Standard Test Method for Compressive Properties of Rigid Plastics
EN ISO 9969 Determination of ring stiffness on thermoplastic pipes;
ISO 14125 Flexural Properties of Fiber-Reinforced Plastic Composites
ASTM D3846 Standard Test Method for In-Plane Shear Strength of Reinforced Plastics;
EN ISO 13968 Plastics piping and ducting systems -Thermoplastics pipes-Determination of ring flexibility;
EN ISO 844 Determination of compression properties;
2.2 Geo-textiles：
BS EN ISO 10319 Geotextiles —Wide-width tensile test;
ASTM D3950 Standard Specification for Strapping, Nonmetallic (and Joining Methods);
JBT 8521(EN 1492-2): Textile slings. Safety. Round slings, made of man-made fibers, for general purpose use;
ASTM D 6775-02 Standard Test Method for Breaking Strength and Elongation of Textile Webbing, Tape and Braided Material;
2.3 Metal：
ASTM E8 Standard Test Methods for Tension Testing of Metallic Materials;
ISO 6892 Metallic materials — Tensile testing — Method of test at ambient temperature;
BS EN 10002-1Determination of tensile properties on metals;
BS EN 10002-5: Metallic materials —Part 5: Method of test at elevated temperatures;
ASTM E21: Standard Test Methods for Elevated Temperature Tension Tests of Metallic Materials;
IS0 783: Metallic materials -Tensile testing at elevated temperature;
EN ISO 7438 Determination of flexure tests on metals;
ASTM F606: Standard Test Methods for Determining the Mechanical Properties of Externally and Internally Threaded Fasteners,
Washers, Direct Tension Indicators, and Rivets;
ISO 14589: Blind rivets - Mechanical testing;
SAE J429: Mechanical and Material Requirements for Externally Threaded Fastener;
Main Technical Parameters:
MODEL |
HST-WDS-30E |
|
Load Capacity |
30KN |
|
Calibration standard |
Class 0.5 according to ISO 7500-1 - Meets ASTM E-4 |
|
Testing Load Accuracy |
±0.5% |
|
Testing Load Range |
0.4%-100%FS |
|
Load Resolution |
1/500,000FS |
|
Deformation measuring range |
0.2%—100%FS |
|
Deformation accuracy |
≤±0.5% |
|
Deformation resolution |
1/±500000FS of the max deformation |
|
Position accuracy |
Within ±0.5% of the value |
|
Displacement resolution |
0.04µm |
|
Crosshead speed range(mm/min) |
0.001-1000mm/min |
|
Crosshead speed accuracy |
±0.5% of set speed |
|
Crosshead Travel |
1100mm |
|
Max. Tensile Testing Space |
770mm |
|
Max. Compression Testing Space |
770mm |
|
Test width |
450mm |
|
Compression Platen |
Ф100mm |
|
Position limit switch |
Upper and lower lights |
|
Power Supply |
0.75KW, AC220V±10%, 50Hz/60Hz |
|
Overall Dimensions (L*W*H) |
850x585x1824mm |
|
Weight |
420kg |
|
Note: *Extra wide and/or extra height frames are available. *Power supply system is completely customizable. *Tensile space, test width, and speed is completely customizable. |
||
Machine Dimension:
Model |
E-Test space |
Width* Depth*Height Ax BxC |
F-Crosshead travel |
D-Test width |
Weight |
HST-WDS-30E |
770mm |
850x585x 1840mm |
1100mm |
450mm |
420kg |
