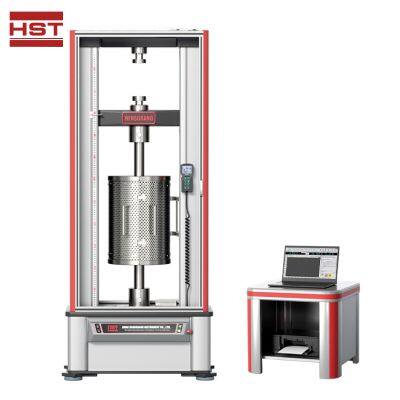

HST Electronic Universal Testing Machine High Temperature Testing Furnace Extensometer

HST Electronic Universal Testing Machine High Temperature Testing Furnace Extensometer photo-1
HST Electronic Universal Testing Machine High Temperature Testing Furnace Extensometer photo-2
HST Electronic Universal Testing Machine High Temperature Testing Furnace Extensometer photo-3
HST Electronic Universal Testing Machine High Temperature Testing Furnace Extensometer photo-4
HST Electronic Universal Testing Machine High Temperature Testing Furnace Extensometer photo-5
HST Electronic Universal Testing Machine High Temperature Testing Furnace Extensometer photo-6
US$ 5000 1 - 4 Set
US$ 3000 ≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Accuracy:
0.01
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Accuracy 0.01
brand name HST
place of origin Shandong, China
customized support OEM
power 2kw
Protection Class IP55
Voltage 220 V
warranty 1YEAR
Max. Load 100
Load accuracy ≤±1%
Load range 2%-100% of full scale
Load resolution 1/200000 of full scale
Disp. resolution 0.01mm
Test speed 0.05-500mm/min
Tensile space 750mm
Comp. space 750mm
Test width 400mm
WDW-100KN Tensile universal strength test machine/ tensile lab equipment supplier with High Temperature Furnace

1. Application:

WDW series computerized electronic universal testing machines are designed and manufacture

according to ASTM, ISO, DIN, GB and other international standards. Applicable for wide range of

material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber,

plastic, spring, textile, and components testing. It is widely used in the corresponding industries,

research and development, test institutes and training centers etc.

2. Main Specifications:

 Model

WDW-10

WDW-20

WDW-30

WDW-50

WDW-100

WDW-200

WDW-300

Max. Load

10kN

1000kgf

20kN

2000kgf

30kN

3000kgf

50kN

5000kg

100kN

10000kgf

200kN

20000kgf

300kN

30000kgf

Load accuracy

≤±1%

Load range

2%-100% of full scale

Load resolution

1/200000 of full scale

1/500000 of full scale

Disp. resolution

0.01mm

Test speed

0.05-500mm/min

0.05-300mm/min

0.01-200mm/min

Tensile space

750mm

650mm

650mm|25.6in

600mm|21.6in

Comp. space

750mm

650mm

650mm|25.6in

600mm|21.6in

test width

375mm

400mm

420mm

600mm

Dimension

730×430×1700mm

755×480×1780mm

825×600×1950mm

1110×750×2560mm

Power supply

220V, 1ph, 0.5kW

220V, 1ph, 0.75kW

220V, 1ph, 1kW

380V, 3ph, 3KW
