HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine

Hst Group Co.,ltd. Gold Verified Supplier
1Yr
Verified Business License
HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine thumbnail-1
HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine thumbnail-2
HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine thumbnail-3
HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine thumbnail-4
HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine thumbnail-5
HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine thumbnail-6
HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine photo-1

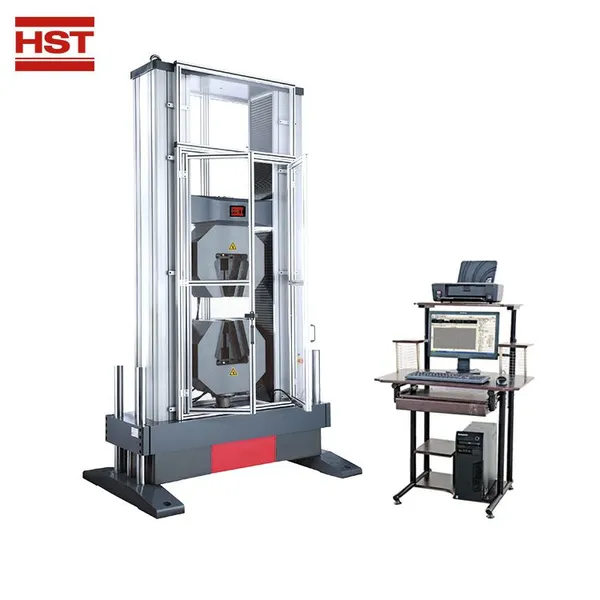

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine photo-2

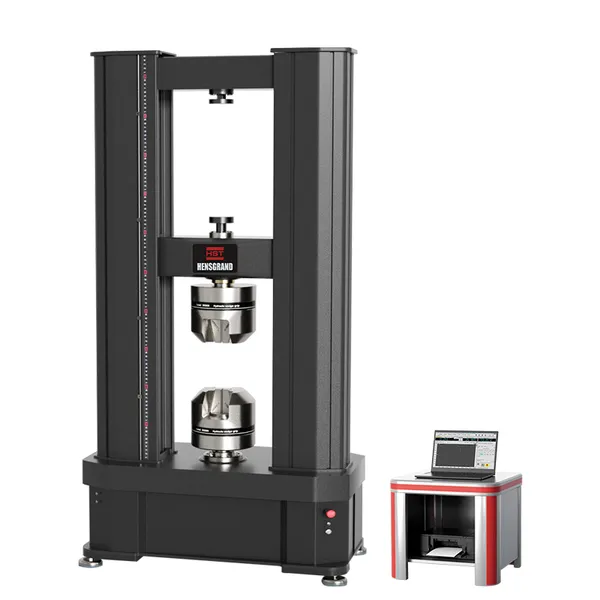

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine photo-3

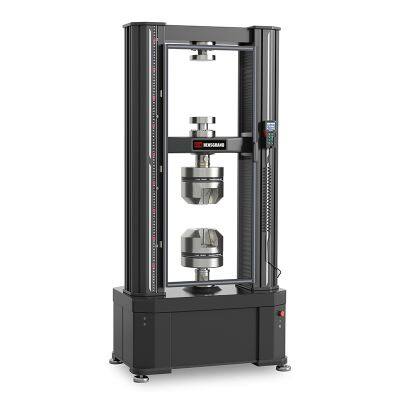

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine photo-4

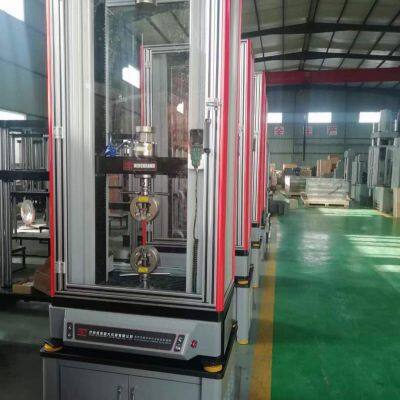

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine photo-5

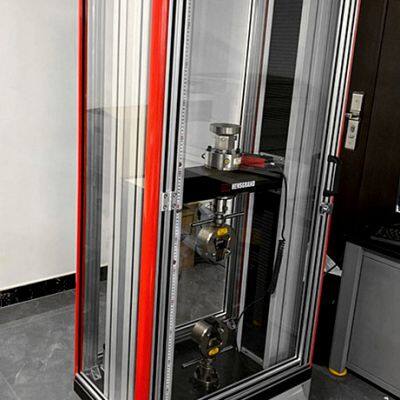

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal Test Machine photo-6
US$ 244926.50 1 - 4 Set
US$ 230930.70 ≥5 Set
Key Specifications
Get Latest Price
Type:
Electronic Tensile Testing Machine, Electronic Universal Testing Machine
Maximum Compressive Space:
900 mm
Maximum Tensile Space:
800 mm
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Maximum Compressive Space 900 mm
Maximum Tensile Space 800 mm
Model Number WDW
Brand Name HST
Place of Origin Shandong, China
Crossbeam Displacement Accuracy ±0.01 mm
Power Supply 220 V~240 V
Testing force 0.1/0.2/0.5/1/2/5/10/20/50/100/200/300/500/600/1000/etc. Kn
Fixture clamp method Manual clamp/Auto clamp As per customer requirements
Load range 0.2%~100% of full scale
Resolution of displacement(um) 0.04
Test speed accuracy Within +/- 0.5% of the value
Load Range 0.05-500mm/min
Tensile Space (mm) 800/1000/650/770/800 Depending on diffrent model
Crosshead Travel Space (mm) 800/1000/1100/900 Depending on diffrent model
Gross Weight (KG) 110/150/420/680/1800/4000 Depending on diffrent model

0

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

MODEL WDW-01E WDW-10E WDW-20E WDW-50E WDW-100E WDW-1000E
Load Capacity (kN) 0.1 10 20 50 100 1000
Calibration Standard Class 0.5 to ISO7500 - 1, ASTM E4
Load Accuracy Class 0.5
Load Range 0.2% ~ 100%F.S
Resolution Of Displacement (μm) 0.04
Test Speed (mm/min) 0.001-500/0.001-1000/0.05-500 Depending on diffrent model
Test Speed Accuracy Within +/- 0.5% of the value
Tensile Space (mm) 800/1000 (heighten model) 650/770/800Depending on diffrent model
Crosshead Travel Space (mm) 800/1000 (heighten model) 1100/900 Depending on diffrent model
Gross Weight (KG) 110/150 (Packing weight) 420/680/1800/4000 Depending on diffrent model
Dimension (mm) 520*400*1340/630*500*1480 (Packing size 850*550*1824 etc./The larger the model, the greater its size.
Power Supply AC220V+-10%,50Hz/60Hz/AC380V+-10%,50Hz/60Hz(can be customized)

TIP:Extra wide/height frames is avaiable.
The power supply system/tensile space/test width and speed are fully customizable.

Didn't find the model you need? For more information on other models, feel free to contact us.

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

HST 500-600KN Computerized Electronic Utm 10 Ton 10 Kn Double Column Tensile Universal test Machine

Q1: What is your warranty?
A: The testing machine is guaranteed for 16 months by HST,we can help youto repair your problem controller freely,even it's not from our factory. Free Non-consumable components will be provided if any performance failure occurs within 16 months caused by non-human damage.
Q2: How to vedio provided?
A: Yes. if required, our engineers will record a specialize how-to video for you.
Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory&trade company (integration).15+ years focusing on test instruments field. 6 years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM service.
Q4: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipmentwithin 3 days.Please be aware that our production lead times depend on specificitems and item quantities.
Q5: What about the after-sales service and product’s quality?
A:Each instruments must be carried out 100% quality examination and test whenshipping and delivery goods. Engineers would be go abroad to training, repair and others help you need.
Q6: what about the packing of equipment?
A: Covered with air bubble film before put the machine into the stanard exporting wooden case, which not only has good shock absorption, impact resistance, heat sso has the advantag- es of nontoxic, odorless, moisture corrosion, good transparency etc.
