Help Center1.52mm Sgp Film, Tongdun Ionic Interlayer Film, Guangdong, Chongqing, Henan, Shandong, Hebei
Related Products
-
Sgp Film, Point-supported Curtain Wall Glass, Laminated Glass, Sgp Interlayer Film for Architectural Glass, Guangdong, Sichuan, BeijingUS$ 38.46MOQ: 1000 Square Meters -
0.38mm Porcelain White Pvb Film, Intermediate Film for Glass, Sand White Opaque and Lightproof Laminated Glass FilmUS$ 2.31MOQ: 1000 Square Meters
-
Sgp Film Processing Technology, Zhejiang Tongdun Super Large Panel Sgp Ionic Interlayer Film for Glass Laminated FilmUS$ 36.62 - 36.92MOQ: 1000 Square Meters
-
Supply From Zhejiang: 8mm Tempered Clear Glass + 1.52sgp + 8mm Tempered Clear Glass by TongdunUS$ 36.92MOQ: 100 Square Meters
-
Sgp Film 1.14 for Safety Glass Interlayer of Glass Walkways and Glass Bridges, CustomizableUS$ 29.23MOQ: 1000 Square Meters
Zhejiang Tongdun New Materials Co., Ltd. is located in Tiantai County, Taizhou City, Zhejiang Province. It is a technology-based company that produces ionomer membranes. The company has established long-term cooperative relationships with Zhejiang University of Technology, Wenzhou Institute of University of Chinese Academy of Sciences, etc., and conducts long-term in-depth research on the development, testing and application of ionomer membranes. The company covers an area of 5000 square meters. The existing production line of ionomer membranes is designed with an annual production capacity of 1000 tons. It has a good product quality monitoring and testing system, a high-quality R & D and testing team, and strictly controls the quality stability from raw materials to finished products. The company is customer-oriented and quality-based. Through continuous in-depth research, it provides more efficient products and services for the society.
Product Introduction PRODUCT INTRODUCTION
Edge stability refers to the durability of the edge of laminated glass exposed to the atmosphere. PVB interlayer is not resistant to moisture. It is easy to delaminate and separate under the action of water vapor. It is required to seal the exposed edges. While Tongdun SGP interlayer has good edge stability, is not sensitive to moisture, and will not delaminate or separate even under exposed conditions. It can be used with open edges without edge sealing.

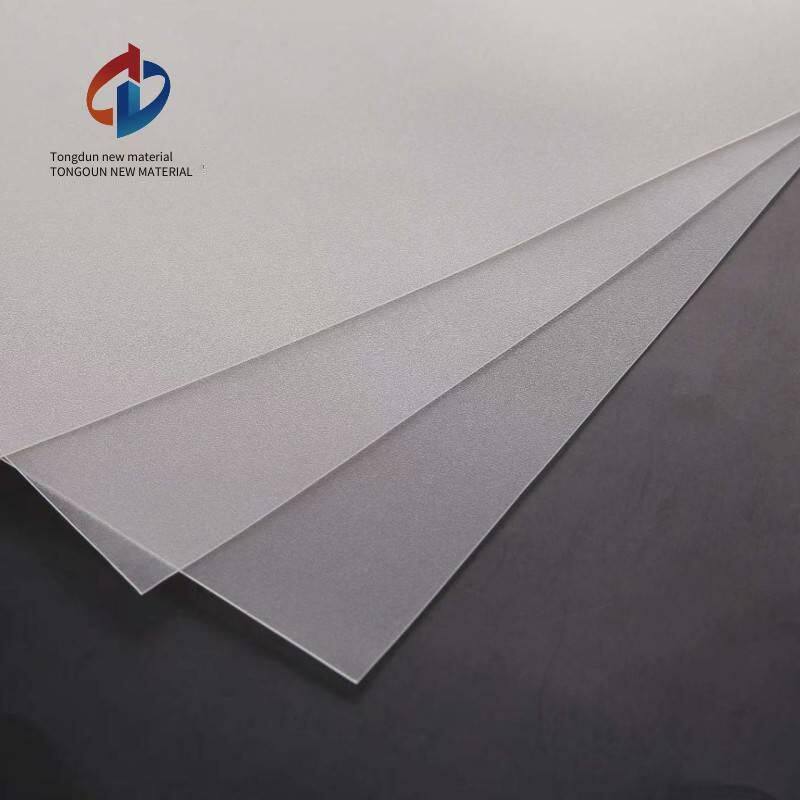

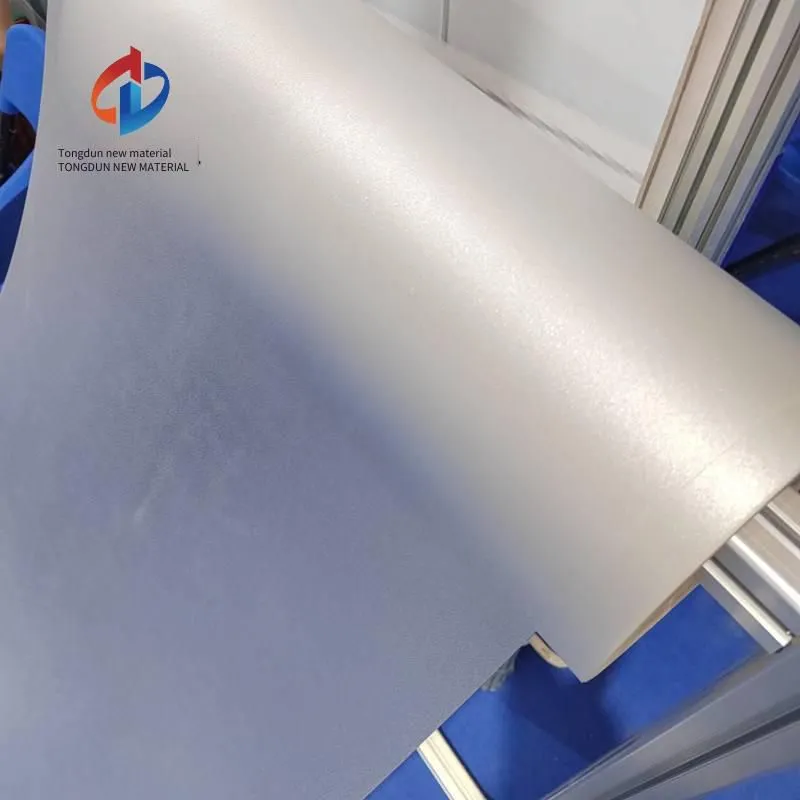

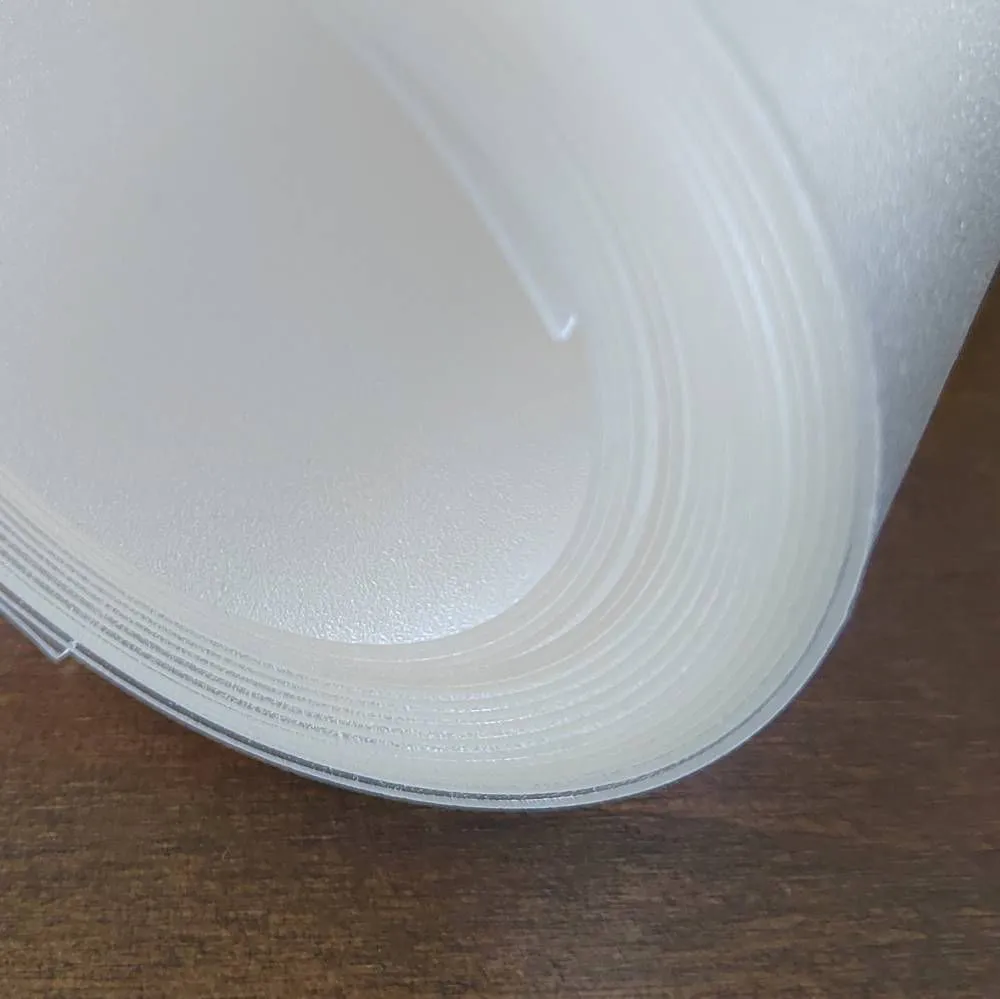

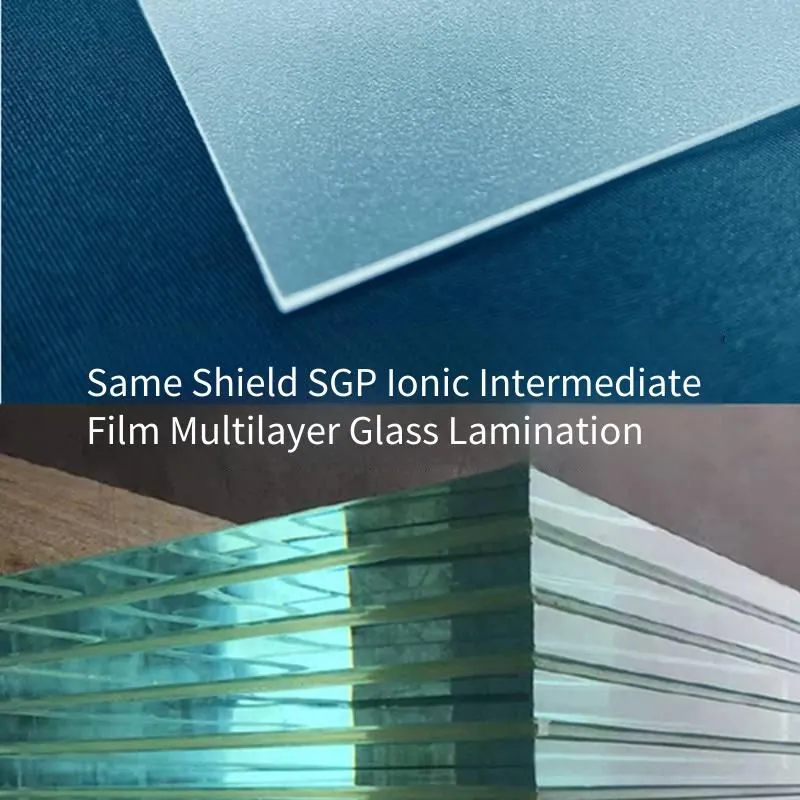

Product Real Photos PRODUCT PICTURE
Ordinary PVB laminated glass, especially tempered laminated glass, will produce large bending deformation once the glass is broken, and there is a risk of the whole piece falling off. The risk is even greater when the glass is horizontally installed on the skylight. There have been cases of accidental incidents where the whole piece of glass fell down. SGP interlayer laminated glass has good integrity. Its tear strength is 5 times that of ordinary PVB interlayer. Even if the glass is broken, the SGP interlayer can still bond the broken glass to form a temporary structure after damage. Its bending deformation is small, and it can bear a certain amount of load without the whole piece falling. This greatly improves the safety of the glass.
The SGP interlayer film itself is colorless and transparent, and has good weather resistance and is not easy to turn yellow. The yellowing coefficient of the SGP film is less than 1.5, while that of the PVB film is 6 - 12. Therefore, SGP laminated glass can better meet the architectural art requirements of architects. If ultra-clear glass (low-iron glass) and SGP interlayer film are used to make ultra-clear laminated glass, it will have a crystal-clear optical effect.
The working performance of several pieces of glass stacked together depends on the mechanical properties of the interlayer (interlayer film). If the shear modulus of the interlayer film
Comparison of physical parameters of interlayer films
Items | Tongdun Ionomer Film | PVB Film | Testing Standards |
Tensile Strength | 34Mpa | 25Mpa | ASTM D-638 |
Elongation at Break | 350% | 250% | ASTM D-638 |
Density | 0.96g/cm 3 | 1.067/cm 3 | ASTM D-792 |
Transmittance | 89% | 89% | JC/T2166-2013 |
Haze | ＜ 1% | ＜ 1% | JC/T2166-2013 |
Yellow Index | ＜ 2 | 6 - 12 | JC/T2166-2013 |
Moisture Content | ＜ 0.1% | 0.35% - 0.55% | JC/T2166-2013 |
Coefficient of Thermal Expansion | 100x10 -6 mm/mm/℃ | 155x10 -6 mm/mm/℃ | ASTM D-696 |
Heat Deflection Temperature | 37℃ | --- | ASTM D-648 |
Shear modulus 30℃, 3s | 140Mpa | 1.3Mpa | ISO-6721 |
Product specification sheet
Thickness | Width | Length |
0.76mm | Width 2440mm, customizable according to customer requirements | 200 meters |
0.89mm | Width 2440mm, customizable according to customer requirements | 200 meters |
1.14mm | Width 2440mm, customizable according to customer requirements | 150 meters |
1.52mm | Width 2440mm, customizable according to customer requirements | 100 meters |
Note: Other thicknesses and sizes can be customized according to actual needs
Packaging and storage of Tongdun ionic intermediate film

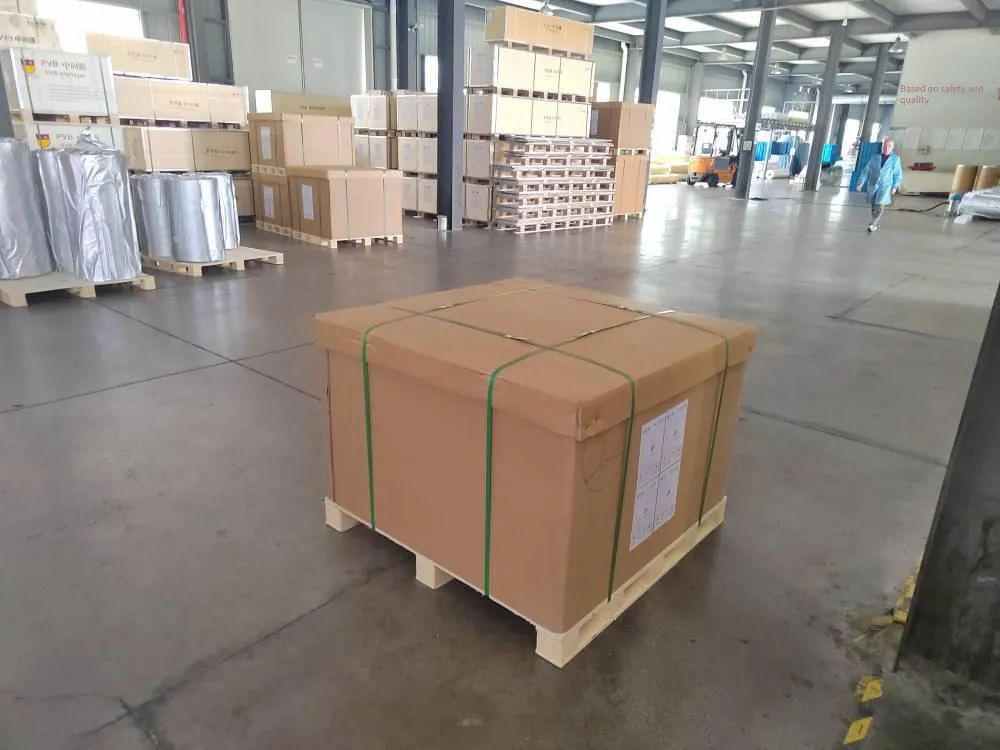

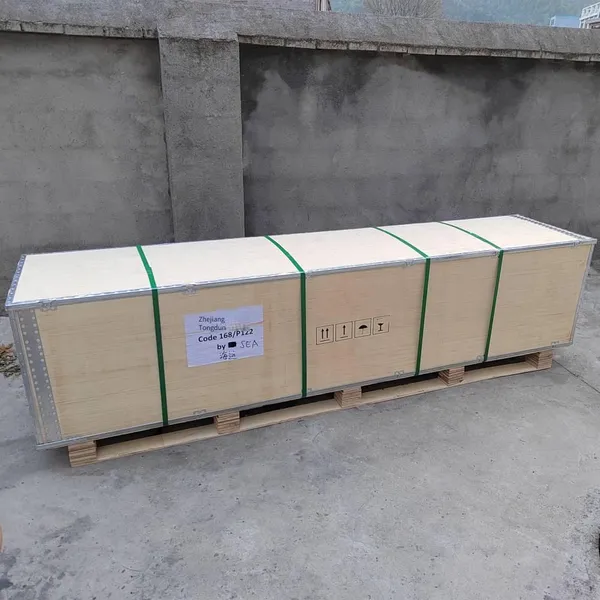

Packaging : The inner packaging uses aluminum-plated film vacuum packaging, and the outer packaging uses wooden box packaging. Both the inner and outer packaging are attached with product information certificates.
Storage: It should be stored in a cool and dry place at a temperature below 30℃, avoiding direct sunlight. If the packaging is opened or damaged, it should be placed in a constant temperature dehumidification room with a temperature of 18~25℃ and a relative humidity below 25% and used as soon as possible.
Transportation: Avoid sunlight, rain, heavy pressure and severe vibration during transportation.
Shelf life: The normal storage shelf life is two years. After unpacking, it can be stored for 3 months in a constant temperature dehumidification room with a temperature of 18~25℃ and a relative humidity below 25%.
China is a professional exporter of PVB and SGP film intermediate films, providing transparency, automobile, architecture, color, milky white, porcelain white, Tan, ocean blue, French green, etc.
