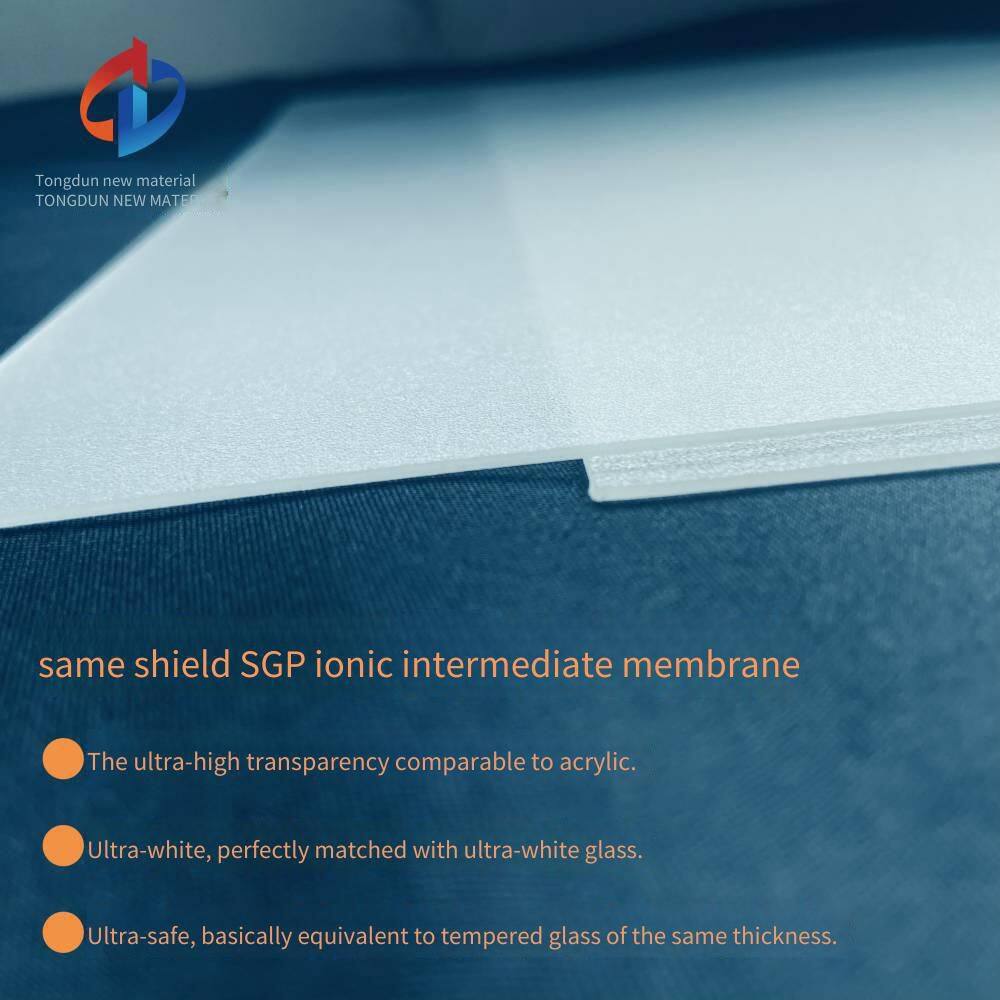

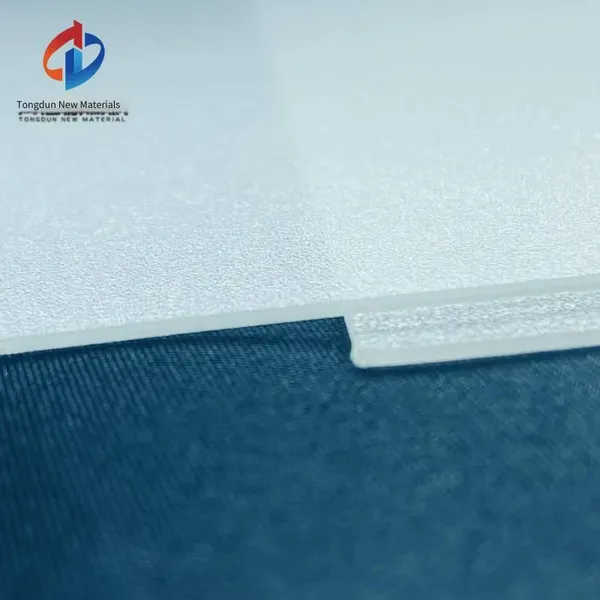

Introduction to the performance of Tongdun SGP Ionic Interlayer Film
The ionic interlayer film is an ionic film made of a copolymer of ethylene and methacrylate, containing a trace amount of sodium metal ions. The bonding force between this film and glass is mainly the result of ionic bond action. Therefore, the bonding force between the ionic interlayer film and glass is much higher than that between the PVB film and glass. Moreover, its hardness is 100 times that of the traditional PVB interlayer material, and its tear strength is 5 times that of the PVB interlayer material. The ionic interlayer film developed by Tongdun has high bonding performance, optical performance, and mechanical performance, which can fully meet the requirements of the laminated safety glass industry for interlayer films. Compared with the PVB film, the laminated glass with the ionic polymer film has the following characteristics:
● Higher strength
The laminated glass with Tongdun's ionic polymer film has higher bending strength than the laminated glass with the PVB film. Under the same glass structure and thickness, it has higher load-bearing and wind pressure resistance.
● Lower deflection and larger equivalent glass thickness
Due to its high strength, in architectural design, under the same deflection requirement, the laminated glass with Tongdun's ionic polymer film can achieve the goal with a smaller glass thickness. This is beneficial for reducing the weight of the glass and the weight of the entire support system.
● Better post-breakage safety.
The ionic polymer film has higher tensile strength and tear strength. The laminated glass with it still has strong supportability after being broken.
● Better optical performance.
Packaging and storage of Tongdun's ionic interlayer film

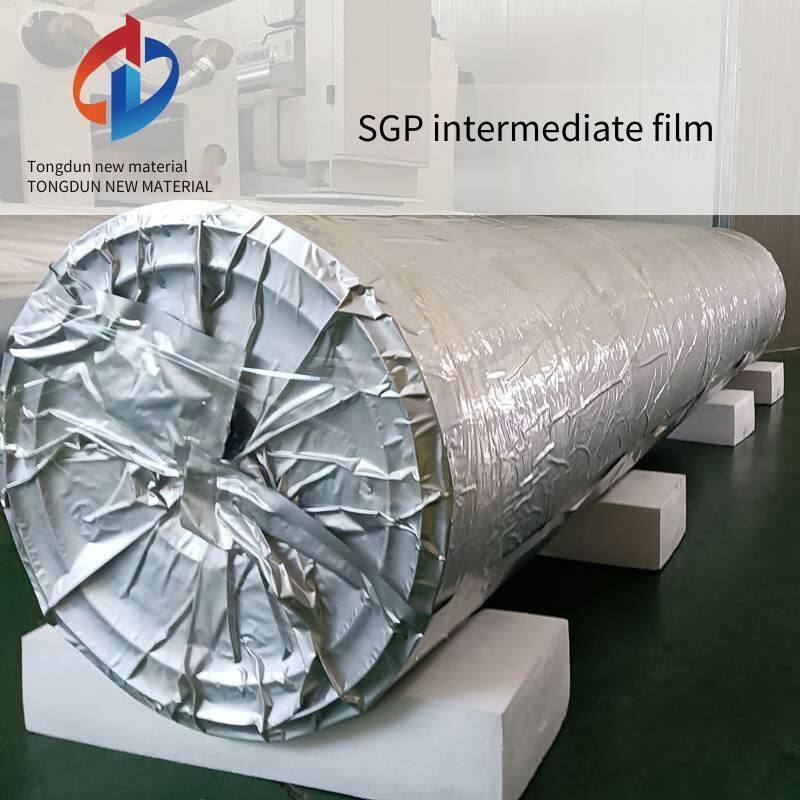

Packaging : The inner packaging uses an aluminized film for vacuum packaging, and the outer packaging uses a wooden box. Both the inner and outer packages are attached with product information certificates.
Storage: It should be stored in a cool and dry place at a temperature below 30℃, avoiding direct sunlight. If the package is opened or damaged, it should be placed in a constant-temperature dehumidification room with a temperature of 18~25℃ and a relative humidity below 25% and used as soon as possible.
Transportation: During transportation, avoid sunlight, rain, heavy pressure, and severe vibration.
Shelf life: Under normal storage conditions, the shelf life is two years. After opening the package, it can be stored in a constant-temperature dehumidification room with a temperature of 18~25℃ and a relative humidity below 25% for 3 months.
China is a professional exporter of PVB and SGP film intermediate films, providing transparency, automobile, architecture, color, milky white, porcelain white, Tan, ocean blue, French green, etc.
A specialized Chinese exporter of semiconductor PVB and SGP films, supplying transparent, automotive, building, colored, milky white, porcelain white, tea-colored, ocean blue, French green, etc. films.
A professional Chinese exporter of PVB and SGP interlayer films provides transparent, automotive, building, colored, milky white, porcelain white, multi - colored, ocean blue, French green, etc. products.
Product Specification Sheet
Thickness |
Width |
Length |
0.76mm |
Width: 2440mm, customizable according to customer requirements |
200 meters |
0.89mm |
Width: 2440mm, customizable according to customer requirements |
200 meters |
1.14mm |
Width: 2440mm, customizable according to customer requirements |
150 meters |
Note: Other thicknesses and sizes can be customized according to actual needs.
