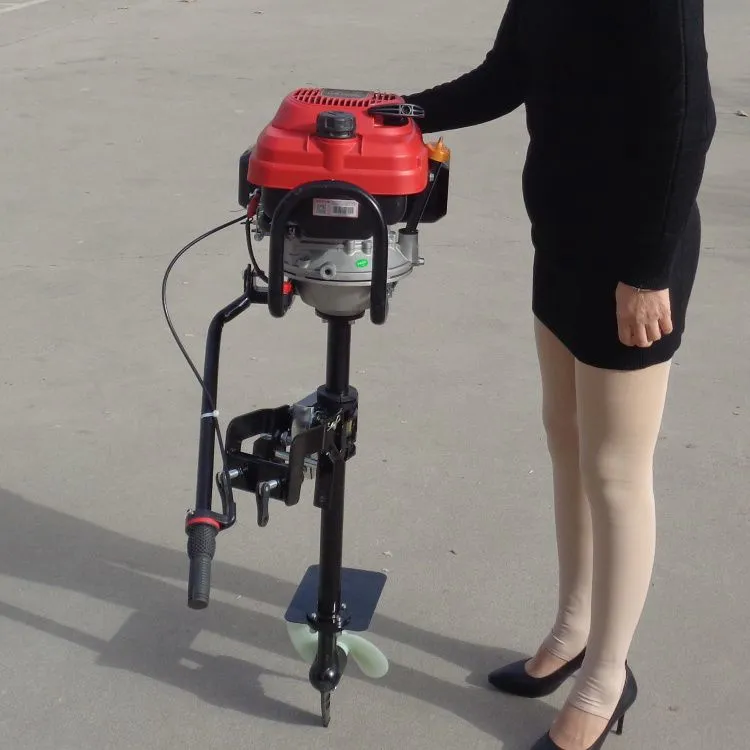

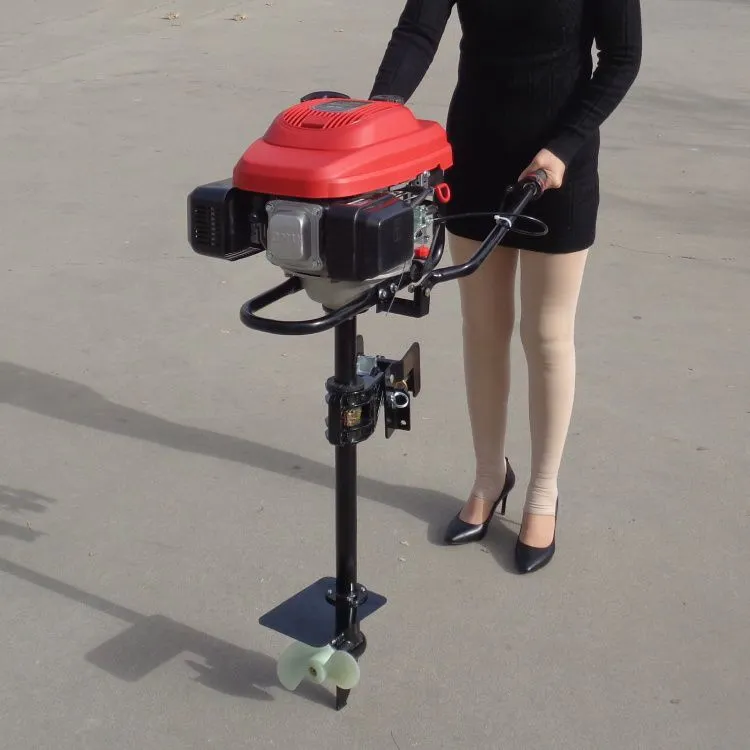

Help CenterSmall Outboard Motor Four-stroke Air-cooled Transom Mount Gasoline Engine Propeller
Related Products
-
Manufacturer-Customized Fully Automatic Marine Propellers for Small Fishing Boat Outboard MotorsUS$ 171 - 180MOQ: 1 Carton -
196cc 4-Stroke Marine Outboard Gasoline EngineUS$ 171 - 180MOQ: 1 Carton
-
Small Four-stroke Outboard Fishing Boat Stern Drive Propeller Motor Propulsion UnitUS$ 178 - 184.41MOQ: 1 Carton
-
Outboard Paddle Machinemarine High-performance Marine Power Equipmentoutboard MotorpropellerUS$ 179 - 184.41MOQ: 1 Carton
-
Four-Stroke Marine Outboard EngineSmall Fishing Boat Stern Mounted EngineAir-Cooled Outboard Motor / Air-Cooled Hanging Oar EngineUS$ 178.86 - 184.41MOQ: 1 Carton
Outboard Model |
GJ7.5 |
Displacement (ml) |
196 |
Bore × Stroke (mm) |
70×51 |
Compression Ratio |
8.0: 1 |
Max Power (kW/r/min) |
>4.0/3600 |
Max Torque (Nm/r/min) |
11.0/2600 |
Min Fuel Consumption (G/KW.H) |
>395 |
Fuel Tank Capacity (L) |
1.3 |
Lubricating Oil Capacity (L) |
0.6 |
Spark Plug Gap (mm) |
0.6-0.8 |
Propeller Configuration |
2-blade |

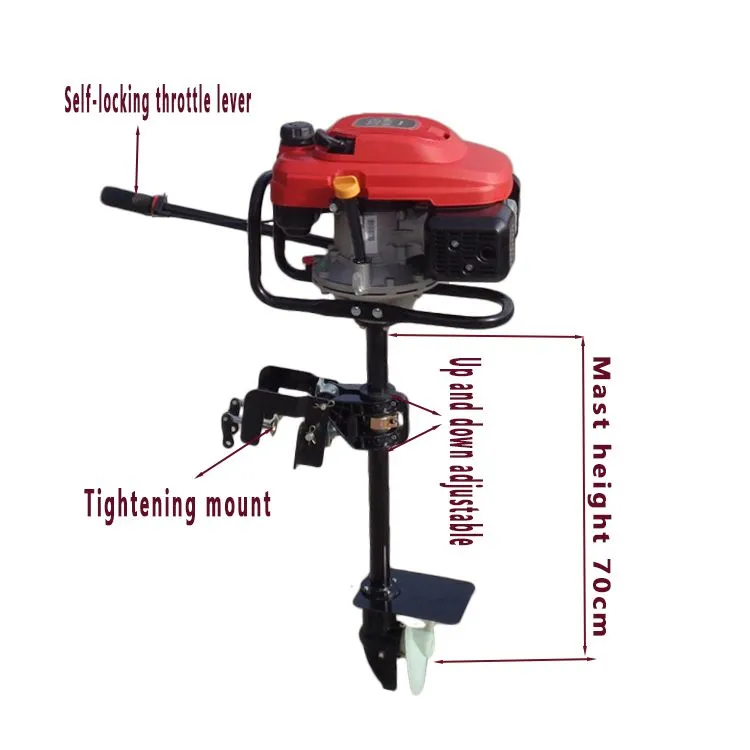

Mounting Height |
53cm |
Transmission Mode |
Hard Shaft, Spline Shaft Drive |
Installation Method |
Fixed Bracket Assembly with Clamping Holder |

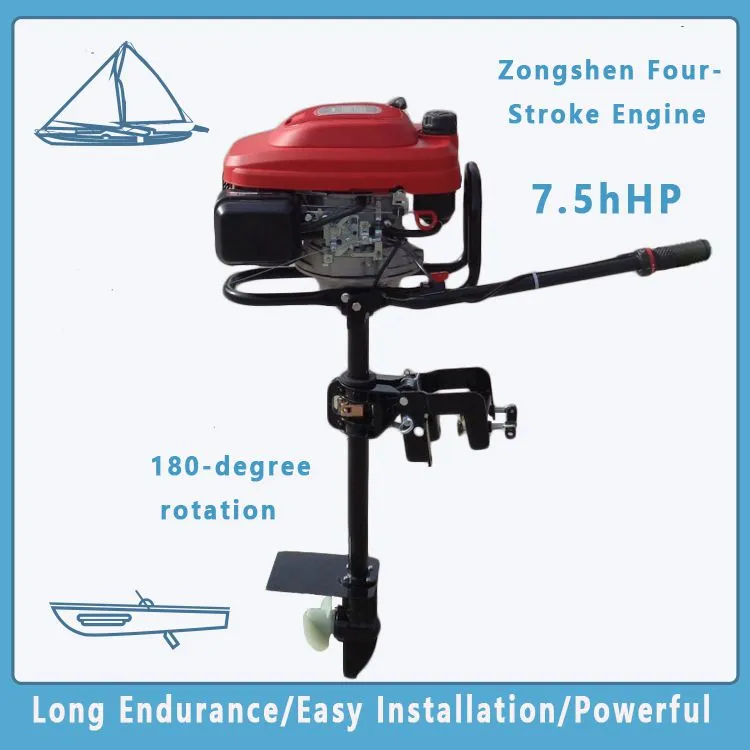

Steering Mode |
180° Rotating Machine |
Starting Method |
Pull Start |
Net/Gross Weight (kg) |
25.6/28 |
Package Dimensions |
115×38×41 |
Introduction to Small Gasoline Outboard Motors
Small gasoline outboard motors, commonly known as "outboard motors" or "outboards", are compact, easy-to-install, and reliable marine propulsion devices. They integrate the engine, transmission system, propeller, and control mechanism into a single independent unit, which is directly mounted and secured to the stern of small vessels (such as inflatable boats, small aluminum boats, fishing boats, and auxiliary sailboats).
Core Feature
1、Independent Integrated Design: No complex in-board engine compartments or drive shaft systems are required, and installation is extremely simple (usually fixed to the stern plate via clamps or bolts).
2、Power Source It uses gasoline as fuel to provide clean and efficient power. Common types include: - **Two-stroke**: It has a relatively simple structure, light weight, and fast acceleration, but with higher fuel consumption and emissions. It usually requires mixing gasoline with engine oil. - **Four-stroke**: It operates more quietly and smoothly, with excellent fuel economy, low emissions, and a long service life. It uses pure gasoline directly (engine oil is independently lubricated) and is the current mainstream and more environmentally friendly choice, especially for small-horsepower models.
3、Horsepower Range
Suitable for propelling small to medium-sized, lightweight boats.
4、Operation Methods
Tiller Control: Direction and throttle are directly controlled by rotating the tiller on the engine 360 degrees. Some models support gear shifting (forward/neutral/reverse) for steering.
Remote Control (Optional): Available for select models, it is controlled via a remote box (equipped with a throttle lever and steering wheel) installed at the helm, providing more comfortable operation.
5、Ready-to-Use
After purchase, it can be used to propel the boat simply by proper installation and fixation. Some models are equipped with a built-in fuel tank for direct refueling, while others can be used by connecting to an external fuel tank.
6、Flexible and Portable
It features a small size and light weight, making it easy to carry, assemble, disassemble, and transport.
Main Application Scenarios
Leisure and Entertainment: Suitable for inflatable boats, inflatable rafts for lake cruising, inshore fishing, and family water activities.
Small-Scale Operations: Used in small fishing boats, aquaculture workboats, and lake/river patrol boats.
Auxiliary Power: Serves as auxiliary power for small sailboats when entering or exiting harbors.
Emergency Rescue: Acts as the power source for small lifeboats or speedboats.
