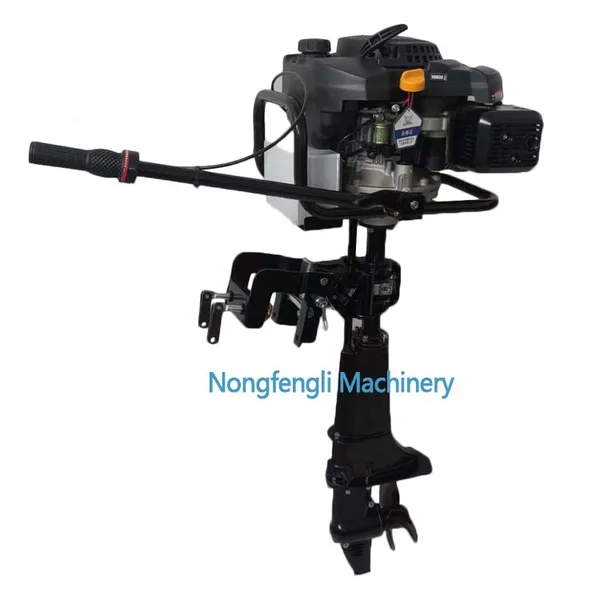

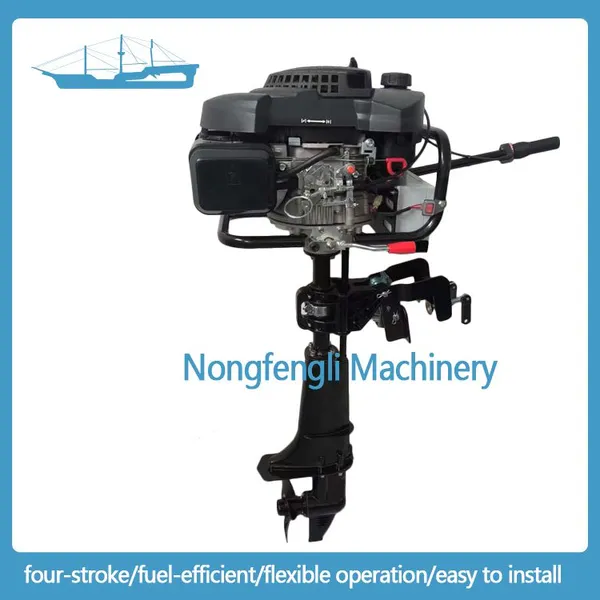

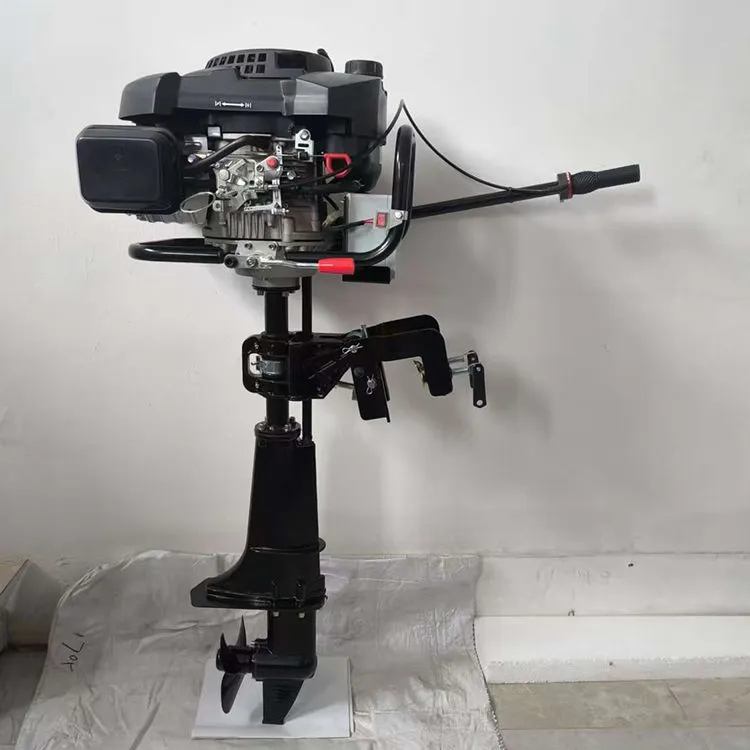

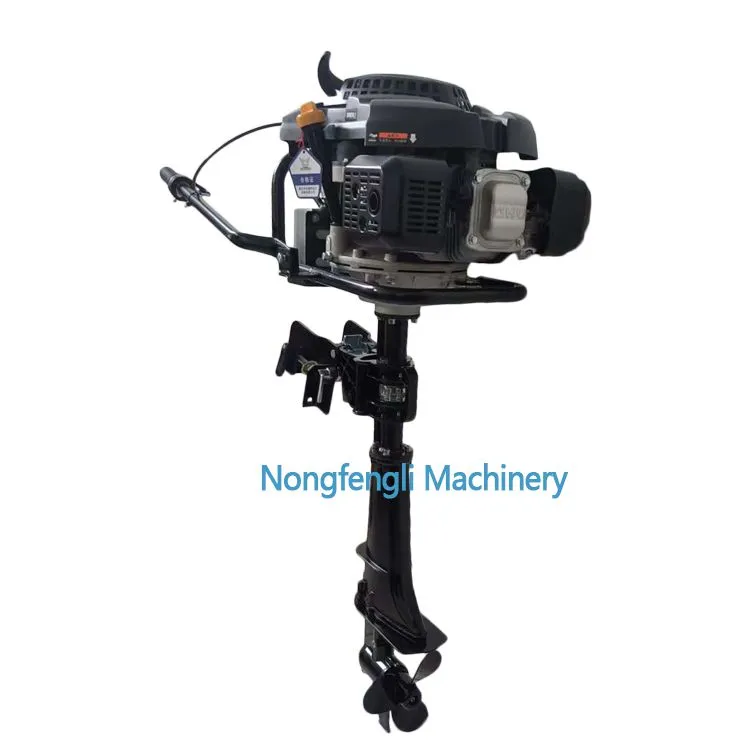

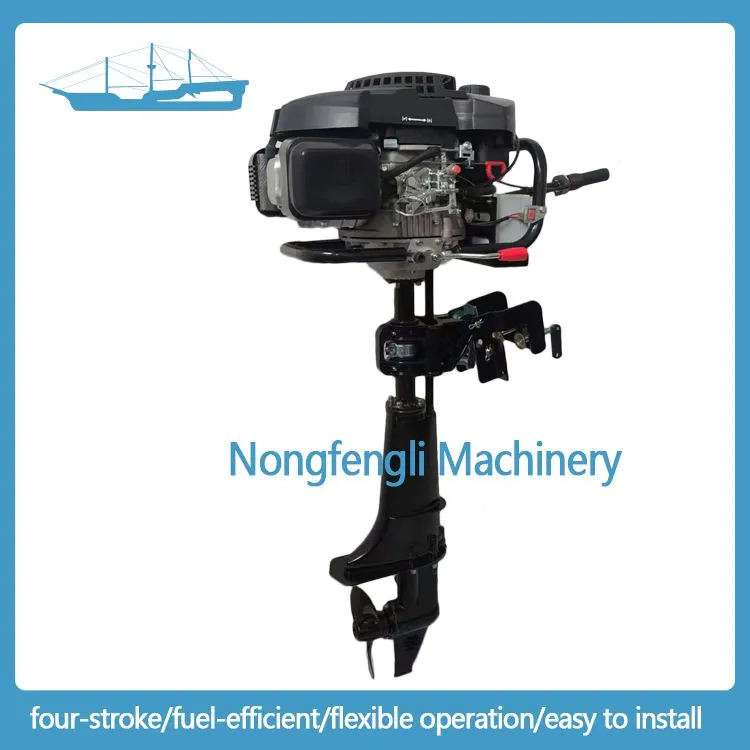

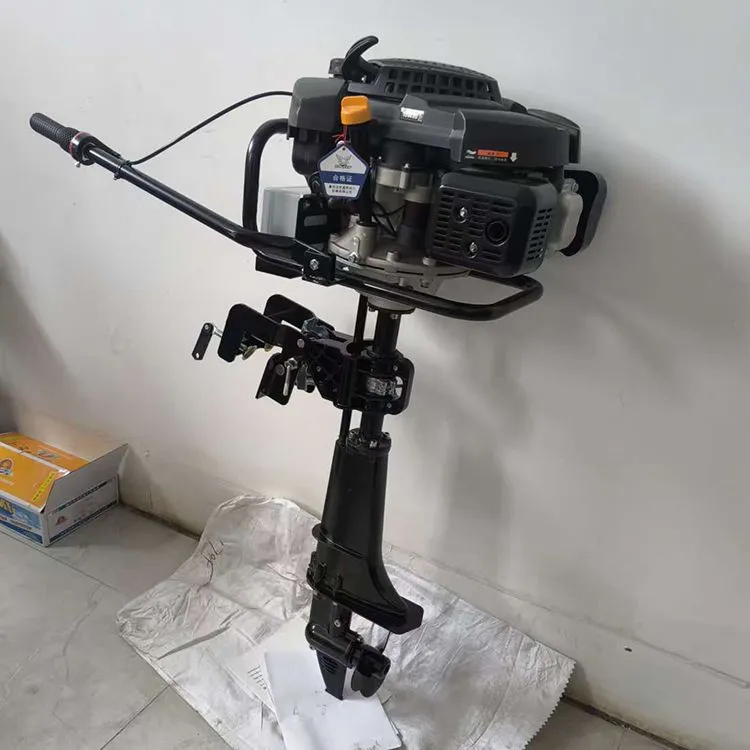

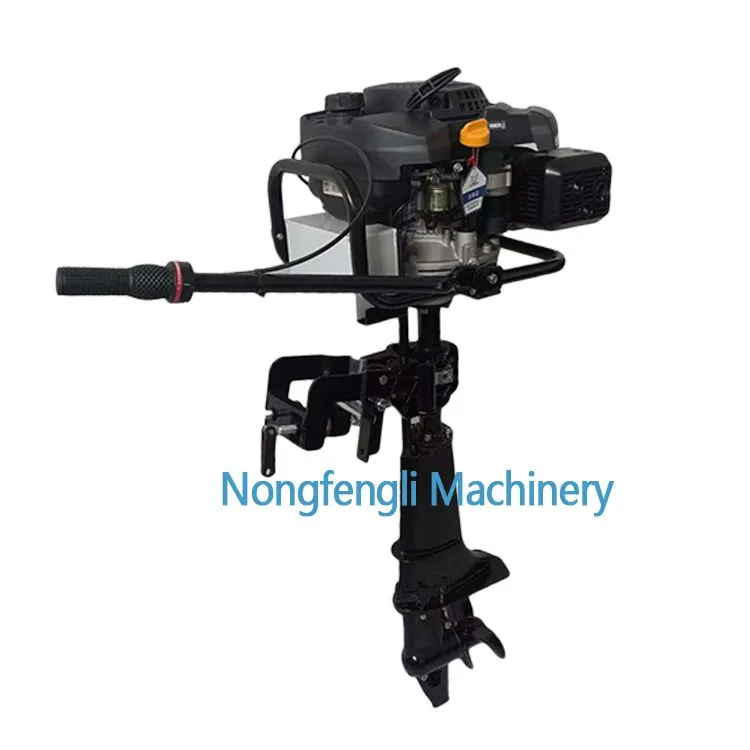

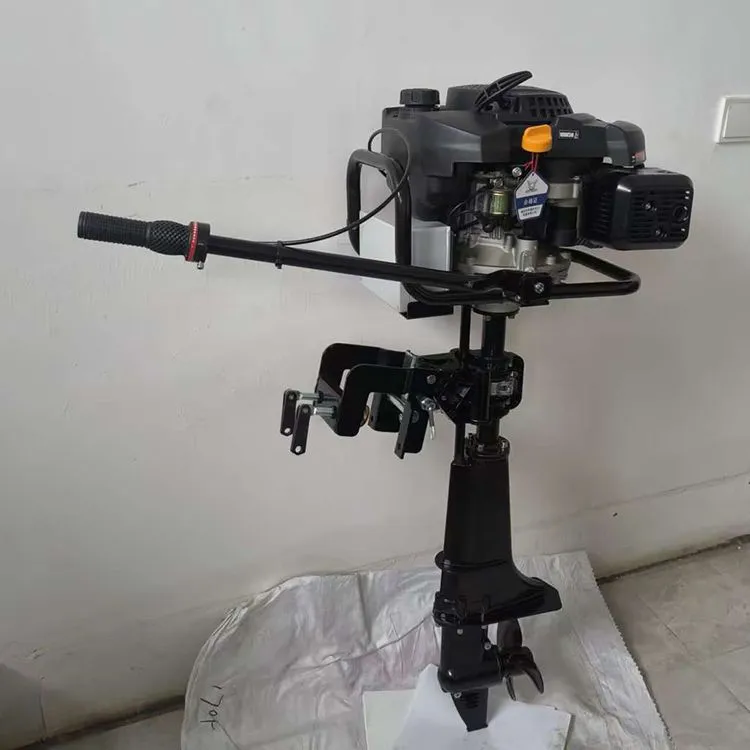

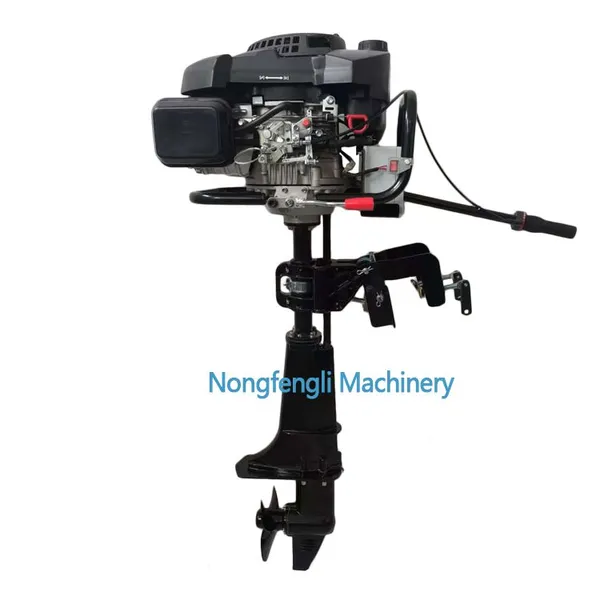

Help Center4-Stroke 9HP Electric Start With Reverse Gear Air-Cooled Marine Outboard Engine
Related Products
-
Direct Sales of 224cc 4-stroke Marine Outboard Engine Gasoline Boat Motor.US$ 175 - 181.72MOQ: 1 Carton -
Factory-Direct 224cc 4-Stroke Marine Engine / Outboard Motor / Gasoline-Powered Boat EngineUS$ 178.92 - 184.6MOQ: 1 Carton
-
Zongshen 4-Stroke 9HP Outboard Marine Gasoline Engine With New Electric Start, Reverse Gear, and Air Cooling System.US$ 301.1 - 316.68MOQ: 1 Carton
-
Zongshen 9HP 4-Stroke Outboard Engine Motor, Manual and Electric Start, Premium Marine Engine Boat Trolling MotorUS$ 183.1 - 185.9MOQ: 1 Carton
-
Compact and Flexible Outboard Motor for Small VesselsPropellerManufacturerUS$ 182.66 - 185.51MOQ: 10 Cartons
Outboard Motor Model |
JP9.0 |
Displacement (ml) |
225 |
Bore × Stroke (mm) |
72×55 |
Compression Ratio |
8.7:1 |
Maximum Power (kw/r/min) |
>4.5/3600 |
Maximum Torque (Nm/r/min) |
13/2600 |
Minimum Fuel Consumption (G/KW.H) |
>395 |
Fuel Tank Capacity (L) |
1.3 |
Lubricating Oil Capacity (L) |
0.6 |
Spark Plug Gap (mm) |
0.6-0.8 |
Ignition System |
Transistorized Contactless Electronic Ignition (TCI) |
Propeller Configuration |
2-Blade Anti-Fouling |
Mounting Height |
40-70 (from mounting point to propeller) |
Transmission Mode |
Solid Shaft, Splined Shaft Drive |
Installation Method |
Fixed Support Frame with Clamping Bracket |
Steering Method |
180° Rotating Mechanism |
Starting Method |
Pull-Start |
Net/Gross Weight (kg) |
28/32 |
Package Dimensions |
115×45×34 |
Introduction to Small Gasoline Outboard Motors
Small gasoline outboard motors, commonly known as "outboard motors" or "outboards", are compact, easy-to-install, and reliable marine propulsion devices. They integrate the engine, transmission system, propeller, and control mechanism into a single independent unit, which is directly mounted and secured to the stern of small vessels (such as inflatable boats, small aluminum boats, fishing boats, and auxiliary sailboats).
Core Feature
1、Independent Integrated Design: No complex in-board engine compartments or drive shaft systems are required, and installation is extremely simple (usually fixed to the stern plate via clamps or bolts).
2、Power Source It uses gasoline as fuel to provide clean and efficient power. Common types include: - **Two-stroke**: It has a relatively simple structure, light weight, and fast acceleration, but with higher fuel consumption and emissions. It usually requires mixing gasoline with engine oil. - **Four-stroke**: It operates more quietly and smoothly, with excellent fuel economy, low emissions, and a long service life. It uses pure gasoline directly (engine oil is independently lubricated) and is the current mainstream and more environmentally friendly choice, especially for small-horsepower models.
3、Horsepower Range
Suitable for propelling small to medium-sized, lightweight boats.
4、Operation Methods
Tiller Control: Direction and throttle are directly controlled by rotating the tiller on the engine 360 degrees. Some models support gear shifting (forward/neutral/reverse) for steering.
Remote Control (Optional): Available for select models, it is controlled via a remote box (equipped with a throttle lever and steering wheel) installed at the helm, providing more comfortable operation.
5、Ready-to-Use
After purchase, it can be used to propel the boat simply by proper installation and fixation. Some models are equipped with a built-in fuel tank for direct refueling, while others can be used by connecting to an external fuel tank.
6、Flexible and Portable
It features a small size and light weight, making it easy to carry, assemble, disassemble, and transport.
Main Application Scenarios
Leisure and Entertainment: Suitable for inflatable boats, inflatable rafts for lake cruising, inshore fishing, and family water activities.
Small-Scale Operations: Used in small fishing boats, aquaculture workboats, and lake/river patrol boats.
Auxiliary Power: Serves as auxiliary power for small sailboats when entering or exiting harbors.
Emergency Rescue: Acts as the power source for small lifeboats or speedboats.
