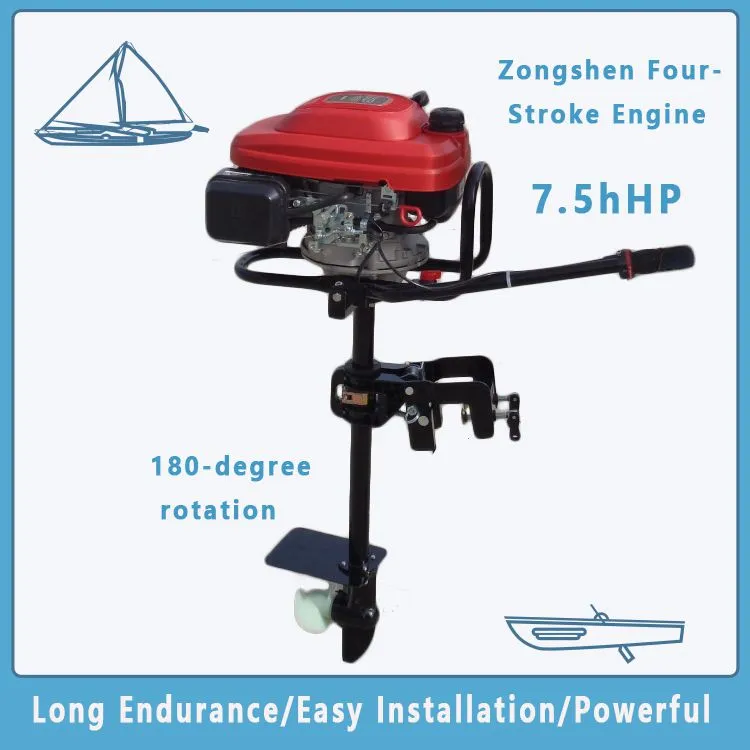

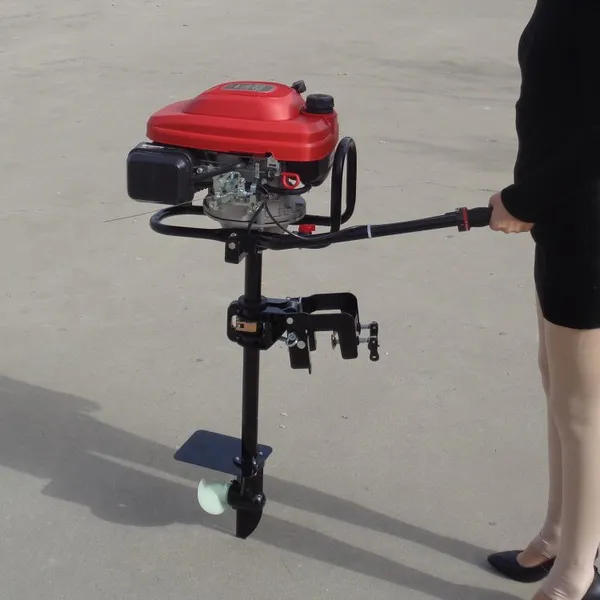

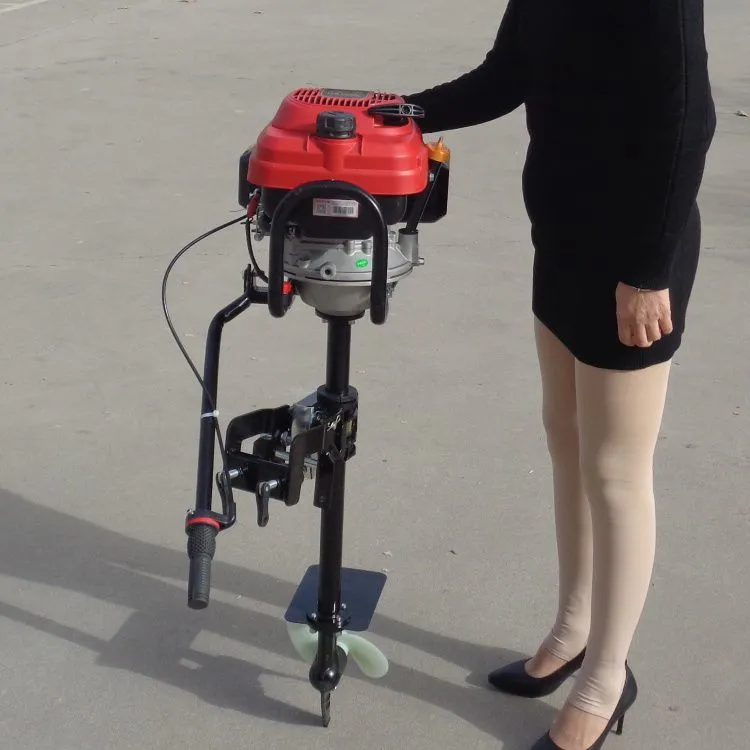

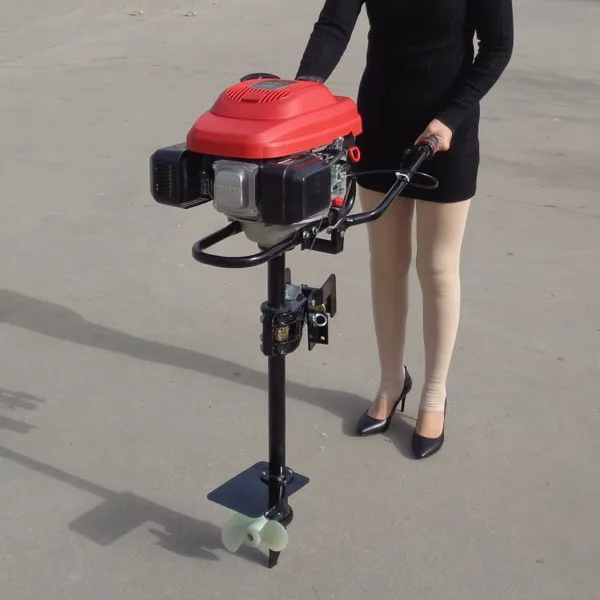

Help Center196cc 4-Stroke Marine Outboard Gasoline Engine
Related Products
-
Small Four-stroke Outboard Fishing Boat Stern Drive Propeller Motor Propulsion UnitUS$ 178 - 184.41MOQ: 1 Carton -
Outboard Paddle Machinemarine High-performance Marine Power Equipmentoutboard MotorpropellerUS$ 179 - 184.41MOQ: 1 Carton
-
Four-Stroke Marine Outboard EngineSmall Fishing Boat Stern Mounted EngineAir-Cooled Outboard Motor / Air-Cooled Hanging Oar EngineUS$ 178.86 - 184.41MOQ: 1 Carton
-
4-Stroke 9HP Electric Start With Reverse Gear Air-Cooled Marine Outboard EngineUS$ 306.63 - 312.29MOQ: 1 Carton
-
Direct Sales of 224cc 4-stroke Marine Outboard Engine Gasoline Boat Motor.US$ 175 - 181.72MOQ: 1 Carton

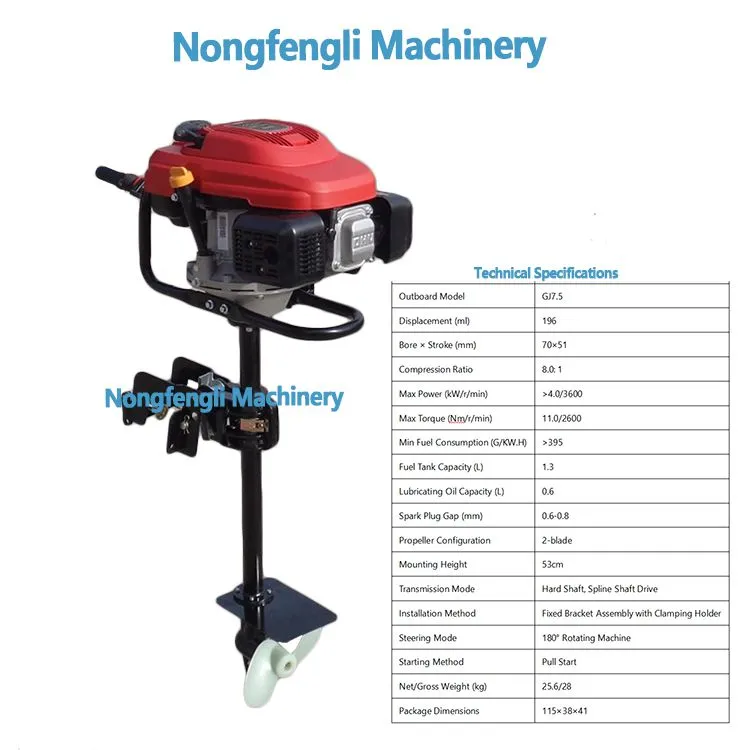

Outboard Model |
GJ7.5 |
Displacement (ml) |
196 |
Bore × Stroke (mm) |
70×51 |
Compression Ratio |
8.0: 1 |
Max Power (kW/r/min) |
>4.0/3600 |
Max Torque (Nm/r/min) |
11.0/2600 |
Min Fuel Consumption (G/KW.H) |
>395 |
Fuel Tank Capacity (L) |
1.3 |
Lubricating Oil Capacity (L) |
0.6 |
Spark Plug Gap (mm) |
0.6-0.8 |

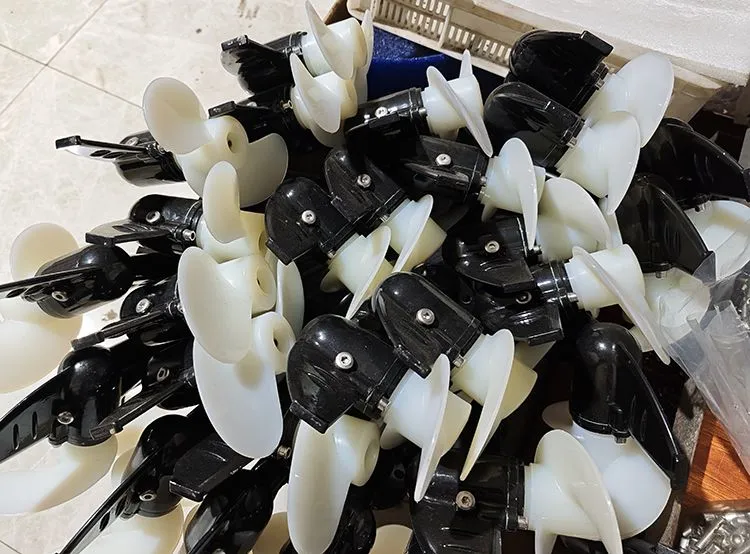

Propeller Configuration |
2-blade |
Mounting Height |
53cm |
Transmission Mode |

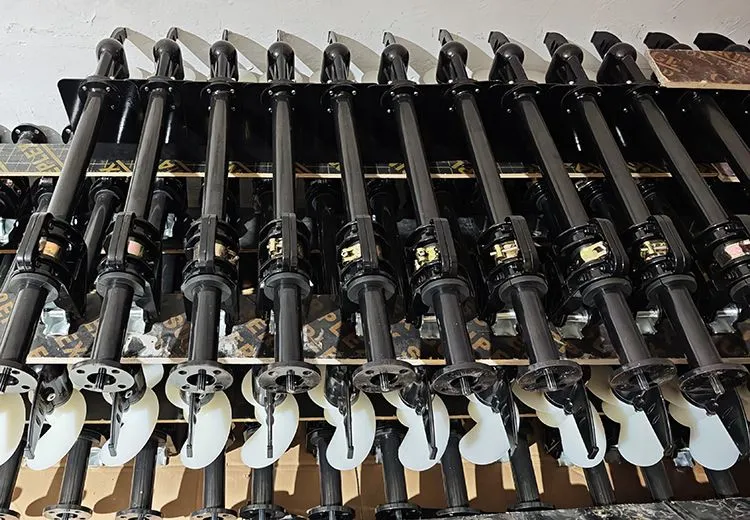

Hard Shaft, Spline Shaft Drive |
Installation Method |

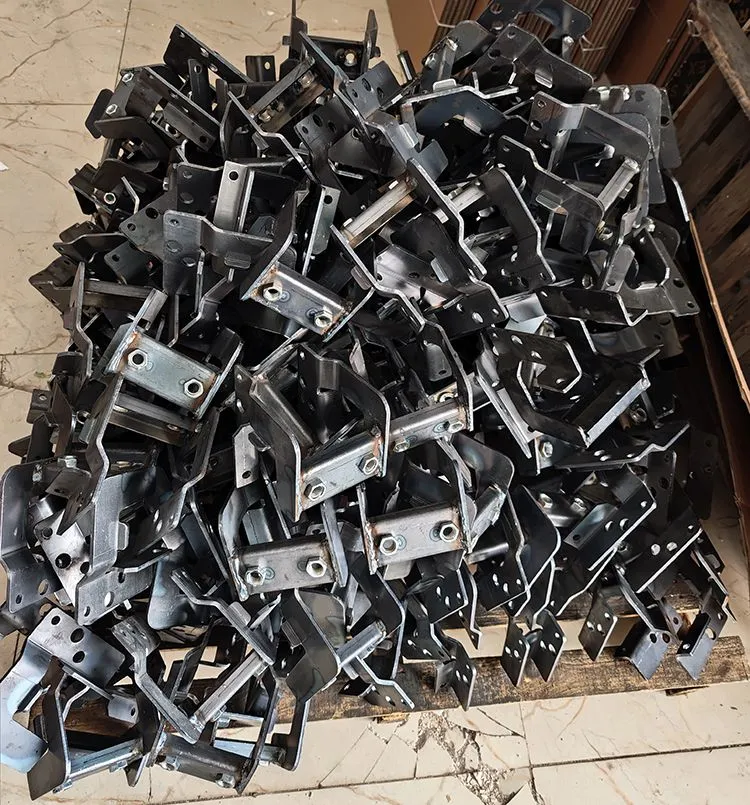

Fixed Bracket Assembly with Clamping Holder |

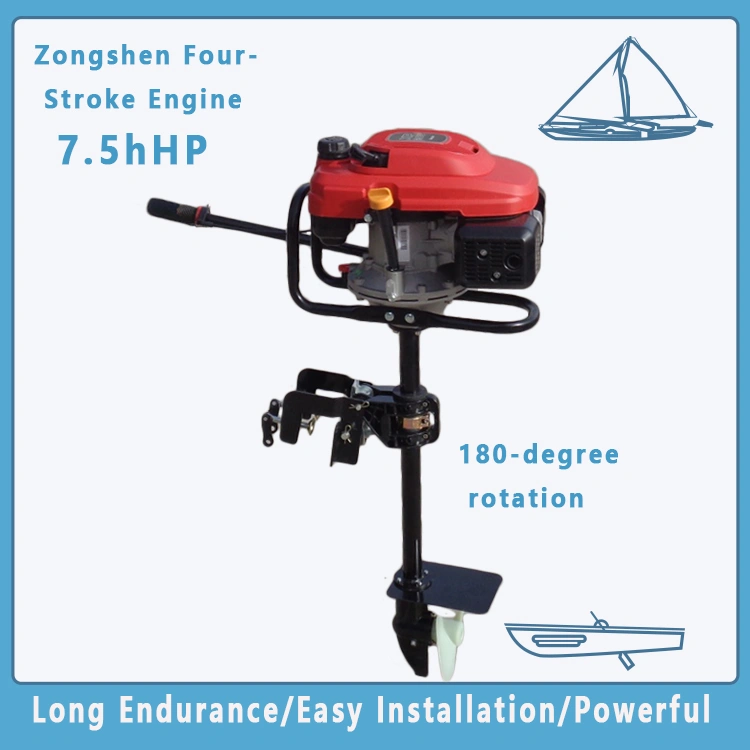

Steering Mode |
180° Rotating Machine |
Starting Method |
Pull Start |
Net/Gross Weight (kg) |
25.6/28 |
Package Dimensions |
115×38×41 |
Brief Introduction to Outboard Motors
The small four-stroke air-cooled outboard motor is a lightweight and high-efficiency marine propulsion device specially designed for small vessels (such as plastic boats, wooden boats and fiberglass fishing boats). It adopts a four-stroke cycle engine (intake, compression, combustion, exhaust) combined with an air-cooled heat dissipation system, eliminating the need for water-cooling devices, and features a compact structure and easy installation.
Its working principle is based on power generated by fuel combustion: the piston completes four strokes inside the cylinder, and the ignited fuel mixture pushes the crankshaft to rotate, which in turn drives the propeller to propel the vessel. The air-cooled system achieves natural cooling through the heat sinks on the engine casing and airflow from the fan, avoiding the complex pipelines and water pumps of water-cooled systems, thus enabling simple maintenance and low risk of clogging.
The main advantages are as follows:
High Efficiency and Environmental Friendliness: The four-stroke design ensures high fuel utilization rate, saving 20–30% of fuel consumption compared with two-stroke models, and greatly reducing exhaust emissions, which is in line with the trend of green navigation.
Durable and Low-Maintenance: The air-cooled structure has no liquid cooling components, reducing the overall weight (the whole machine usually weighs 20–50 kg) and the risk of corrosion, making it suitable for long-term use in both freshwater and seawater environments.
Cost-Effective and Practical: It features low purchase cost and easy starting, making it ideal for individual users and small vessels.
