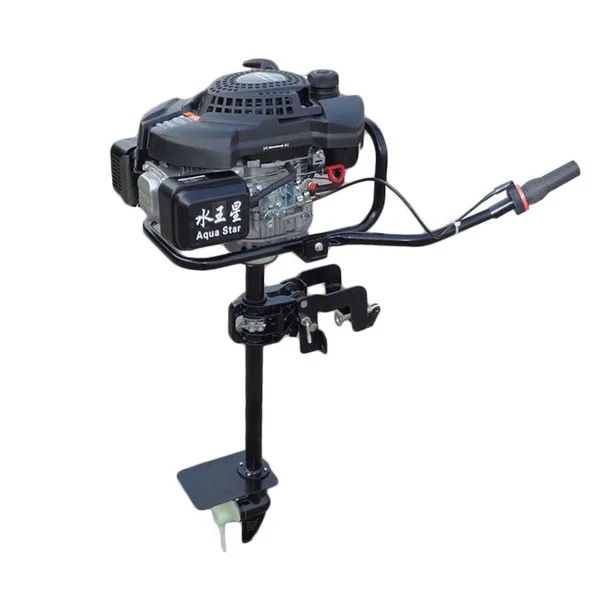

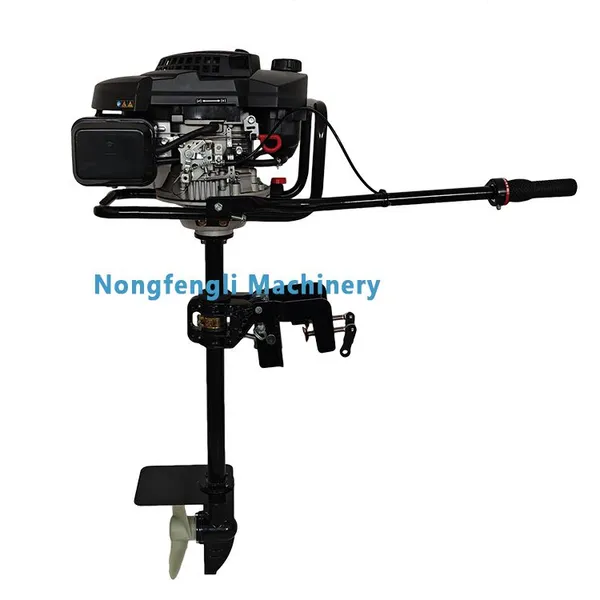

Help CenterDirect Sales of 224cc 4-stroke Marine Outboard Engine Gasoline Boat Motor.
Related Products
-
Factory-Direct 224cc 4-Stroke Marine Engine / Outboard Motor / Gasoline-Powered Boat EngineUS$ 178.92 - 184.6MOQ: 1 Carton -
Zongshen 4-Stroke 9HP Outboard Marine Gasoline Engine With New Electric Start, Reverse Gear, and Air Cooling System.US$ 301.1 - 316.68MOQ: 1 Carton
-
Zongshen 9HP 4-Stroke Outboard Engine Motor, Manual and Electric Start, Premium Marine Engine Boat Trolling MotorUS$ 183.1 - 185.9MOQ: 1 Carton
-
Compact and Flexible Outboard Motor for Small VesselsPropellerManufacturerUS$ 182.66 - 185.51MOQ: 10 Cartons
-
Manufacturer of High-efficiency, High-power Outboard Propellers for Small Fishing VesselsUS$ 182.66 - 185.52MOQ: 10 Cartons
Performance and Advantages of SHUIWANGXING Outboard Motors

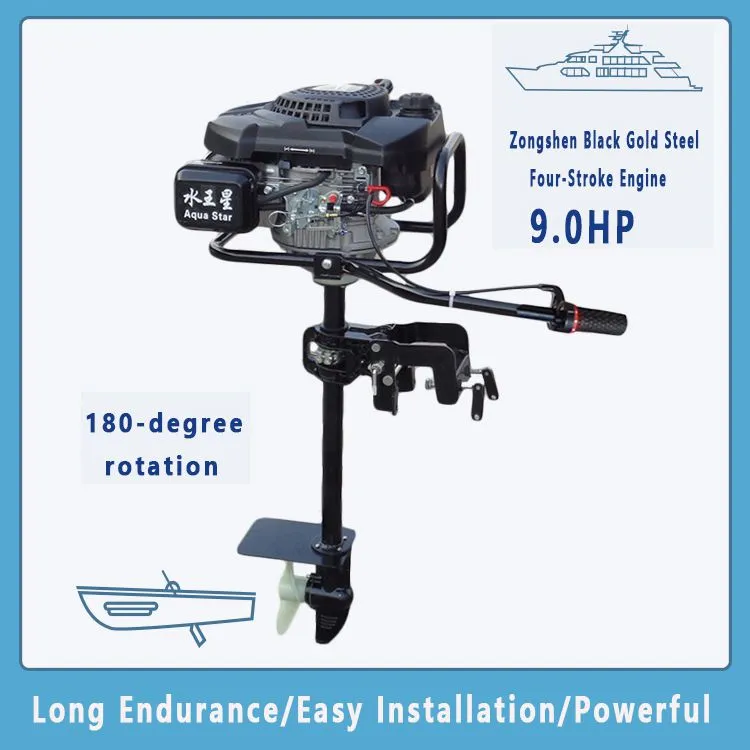

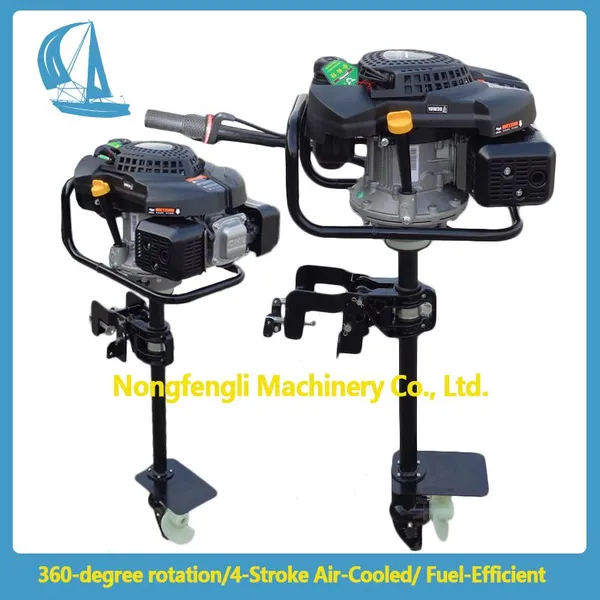

The engine of SHUIWANGXING outboard motor can rotate 360 degrees for operation, delivering exceptional maneuverability. It enables reverse gear shifting without the need for gear switching.
When navigating in shallow waters, the outboard motor can be lifted and adjusted to a certain angle, which prevents collision with the seabed during sailing.
The engine kill switch, throttle cable and throttle grip are all mounted on the control handle for easy operation.
Equipped with a clutch mechanism, the propeller of SHUIWANGXING outboard motor does not rotate when idling, ensuring safer and more comfortable operation.
Outboard Motor Model |
JP9.0 |
Displacement (ml) |
225 |
Bore × Stroke (mm) |
72×55 |
Compression Ratio |
8.7:1 |
Maximum Power (kw/r/min) |
>4.5/3600 |
Maximum Torque (Nm/r/min) |
13/2600 |
Minimum Fuel Consumption (G/KW.H) |
>395 |
Fuel Tank Capacity (L) |
1.3 |
Lubricating Oil Capacity (L) |
0.6 |
Spark Plug Gap (mm) |
0.6-0.8 |
Ignition System |
Transistorized Contactless Electronic Ignition (TCI) |
Propeller Configuration |
2-Blade Anti-Fouling |
Mounting Height |
40-70 (from mounting point to propeller) |
Transmission Mode |
Solid Shaft, Splined Shaft Drive |
Installation Method |
Fixed Support Frame with Clamping Bracket |
Steering Method |
180° Rotating Mechanism |
Starting Method |
Pull-Start |
Net/Gross Weight (kg) |
26/29 |
Package Dimensions |
115×45×34 |
Leveraging our robust R&D capabilities and in response to market demands, our company has developed a gasoline four-stroke series of marine outboard motors. This range of products boasts such advantages as light weight, sleek appearance, ease of operation and reliability. They also feature fast cruising speed, low noise, minimal vibration and fuel efficiency.
Product Features
This product offers the benefits of light weight, portability, easy assembly and disassembly, compact design and an attractive appearance. It is sturdy and reliable, resistant to strong impacts and durable in use. The mounting height of the outboard can be adjusted within the range of 50 cm to 70 cm to meet the operational requirements of users in different regions.
