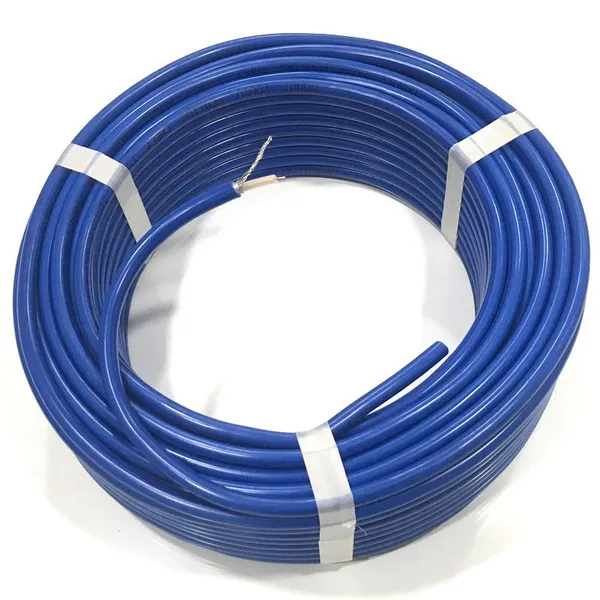

Help CenterSilent Efficient Constant Wattage Outdoor Driveway Snow Melting Heating Cable
Related Products
-
Heating Cable With Temperature Sensor Heating CableUS$ 2 - 8MOQ: 10 Meters -
Heating Cable With Temperature Sensor Is Composed of Heating Cable a Temperature Switch a Power Cord and a Power PlugUS$ 2 - 6MOQ: 10 Meters
-
Trade Assurance 18w Twin Core Heating Cable Constant Power Electric Heating Tracing CableUS$ 2.11MOQ: 100 Meters
-
Deicing and Defrosting Roof Snow Melting Heating Cable Driveway Heating CableUS$ 2.11MOQ: 100 Meters
-
12 Volt Heating Cable Self-regulating Cable for Underfloor Electric Heating Trace CableUS$ 3.51MOQ: 100 Meters
Heating cable using alloy resistance wire for electric heating to achieve heating effect. The heating cable is divided into single conductor heating cable and twin conductor heating cable.
Working Principle

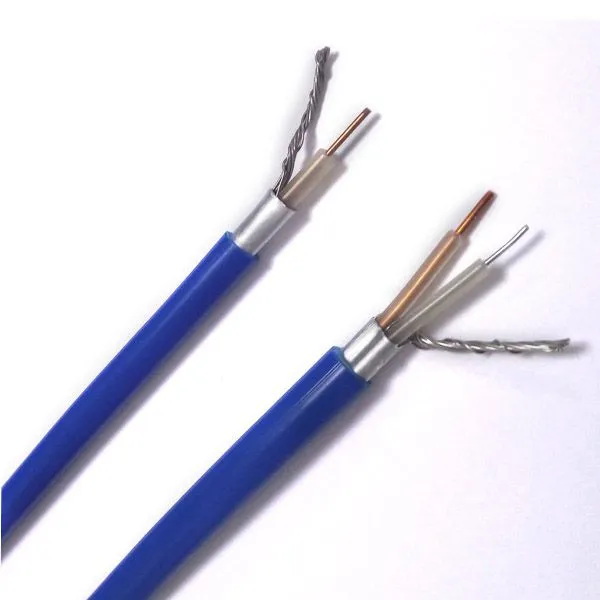

The inner core of the heating cable is composed of cold wire and hot wire. The outer core is composed of an insulating layer, a grounding layer, a shielding layer and an outer jacket. After the heating cable is energized, the hot wire heats up and runs between 40 and 60 degrees Celsius. The heating cable embedded in the filling layer transmits the heat energy through the way of heat conduction (convection) and emits the far infrared radiation of 8-13um.
Product Advantage
1. Comfortable, healthy, clean, long life and no maintenance.
2. Spacious, simple, warm, damp proof and mildew proof.
3. Safety, efficiency, environmental protection, energy saving and low cost.
There is no leakage and short circuit in heating by heating cable, and there is no danger;
The temperature of each room can be shut down and adjusted Sseparately.
Scope of Application

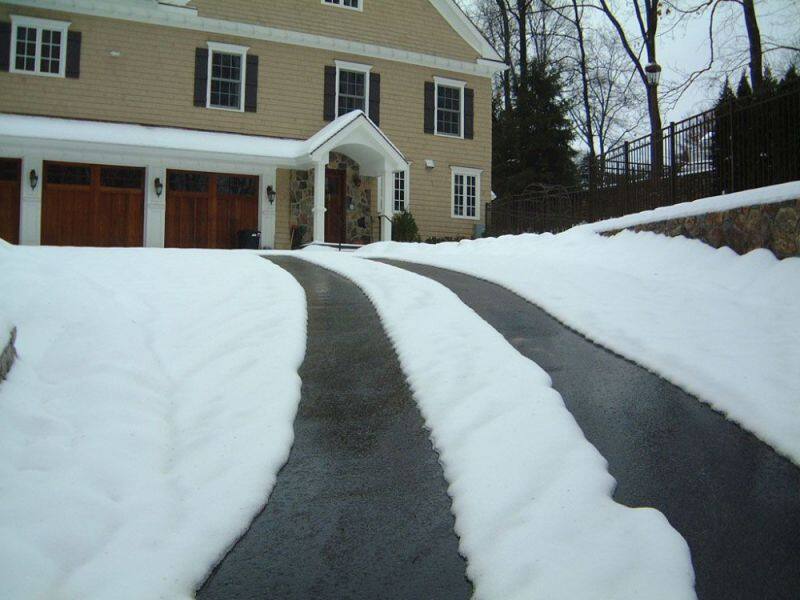

1. Road snow melting
2. Pipe insulation
3. Soil heating system

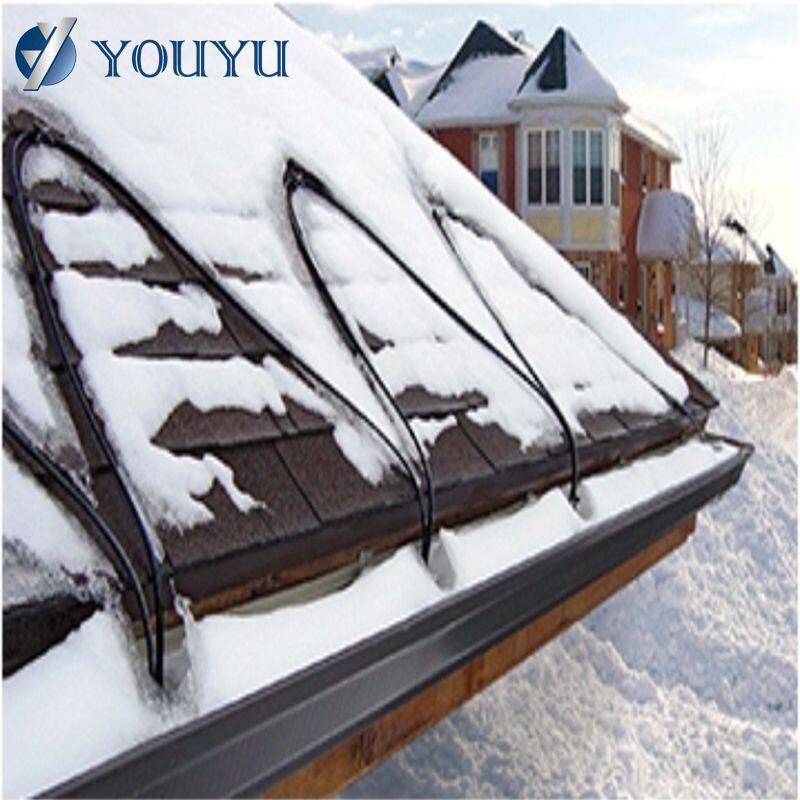

4. Roofing melting snow and melting ice
Catalog Number | Rated Voltage | W/M | Length(M) | Output Power(W) | Resistance (Ohms) |
FTC-200-20-2 | 230V | 20 | 10 | 200 | 264.5 |
FTC-300-20-2 | 230V | 20 | 15 | 300 | 176.3 |
FTC-400-20-2 | 230V | 20 | 20 | 400 | 132.3 |
FTC-500-20-2 | 230V | 20 | 25 | 500 | 105.8 |
FTC-600-20-2 | 230V | 20 | 30 | 600 | 88.2 |
FTC-700-20-2 | 230V | 20 | 35 | 700 | 75.6 |
FTC-800-20-2 | 230V | 20 | 40 | 800 | 66.1 |
FTC-1000-20-2 | 230V | 20 | 50 | 1000 | 52.9 |
FTC-1200-20-2 | 230V | 20 | 60 | 1200 | 44.1 |
FTC-1400-20-2 | 230V | 20 | 70 | 1400 | 37.8 |
FTC-1600-20-2 | 230V | 20 | 80 | 1600 | 33.1 |
FTC-1800-20-2 | 230V | 20 | 90 | 1800 | 29.4 |
FTC-2000-20-2 | 230V | 20 | 100 | 2000 | 26.5 |
FTC-2300-20-2 | 230V | 20 | 115 | 2300 | 23.0 |
FTC-2600-20-2 | 230V | 20 | 130 | 2600 | 20.3 |
FTC-2900-20-2 | 230V | 20 | 145 | 2900 | 18.2 |
FTC-3200-20-2 | 230V | 20 | 160 | 3200 | 16.5 |
Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
What's the Minimum Order Quantity?
MOQ for heating mat is 500㎡.
MOQ for self regulating heating cable is 1000m.
MOQ for constant wattage heating cable is 1000m.
MOQ for thermostats is 50 pieces.
Can I place a sample order first?
Yes, you can place sample order to check the quality and testing it. Parts of samples are free of charge. Delivery cost is on buyer's account.
What is your delivery time?
Normally within 7~15 days, big order should be negotiated.
What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
What is warranty of your product?
25 years for heating cable & heating mat.
2 years for for constant wattage/self-regulating heating cable and thermostats.
Can you do OEM and ODM for us?
Yes, we are professional in providing OEM and ODM service. We support both standard and customized products, we can put your logo on the products. Our experienced R&D team will support technical questions.
How to control quality?
1. All the raw materials by ICQ(Incoming quality control).
2. IPQC(In Processing Quality control).
3. QC fully inspection before packing.
4. Before shipment, do fully inspection again.

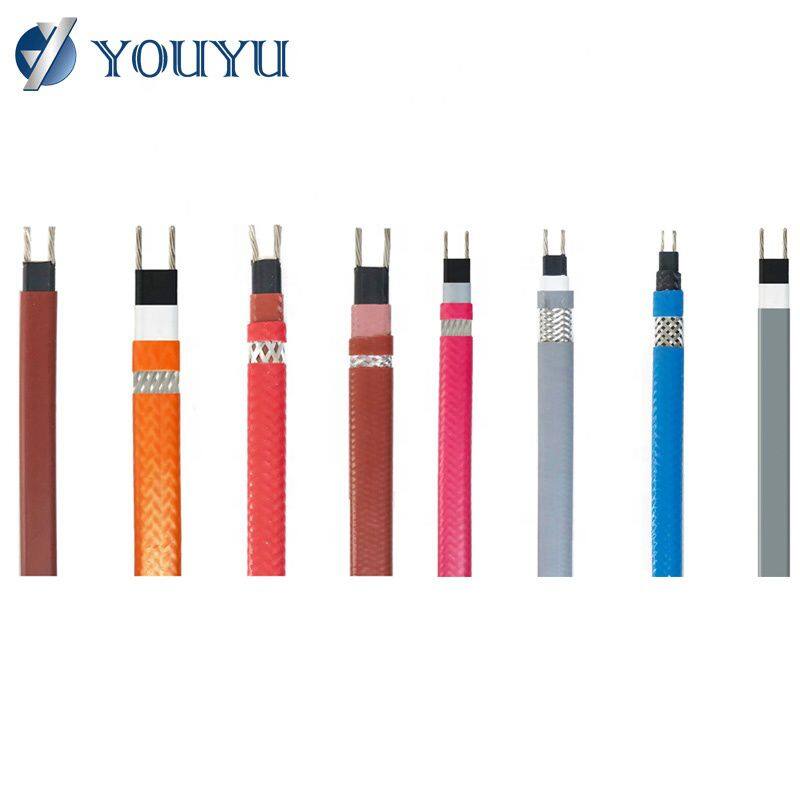

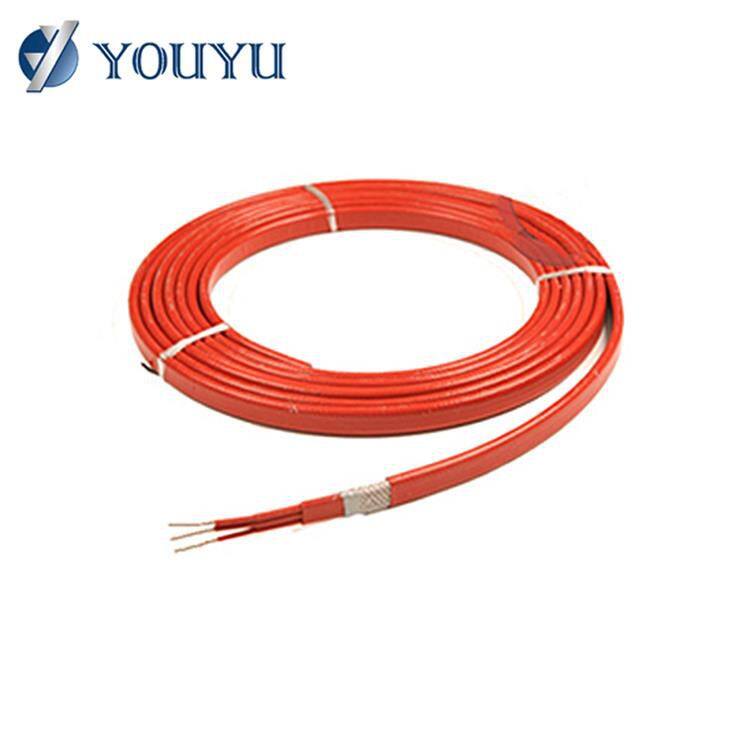

Self Regulating Heating Cable
Constant Wattage Heating Cable
Twin Conductor Heating Cable

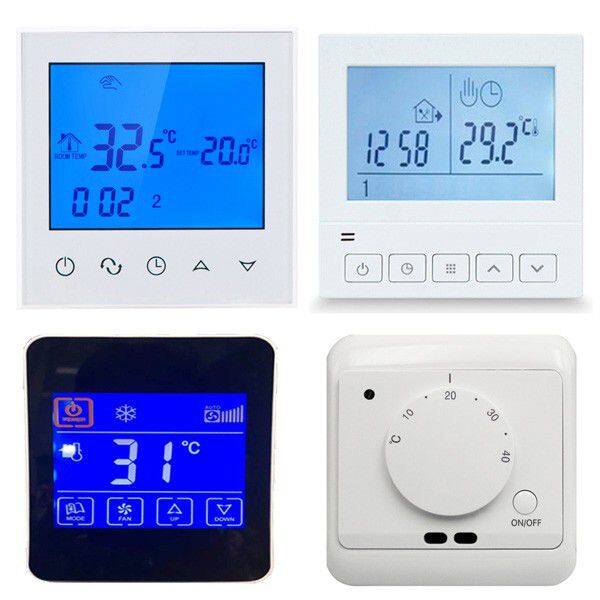

Thermostat

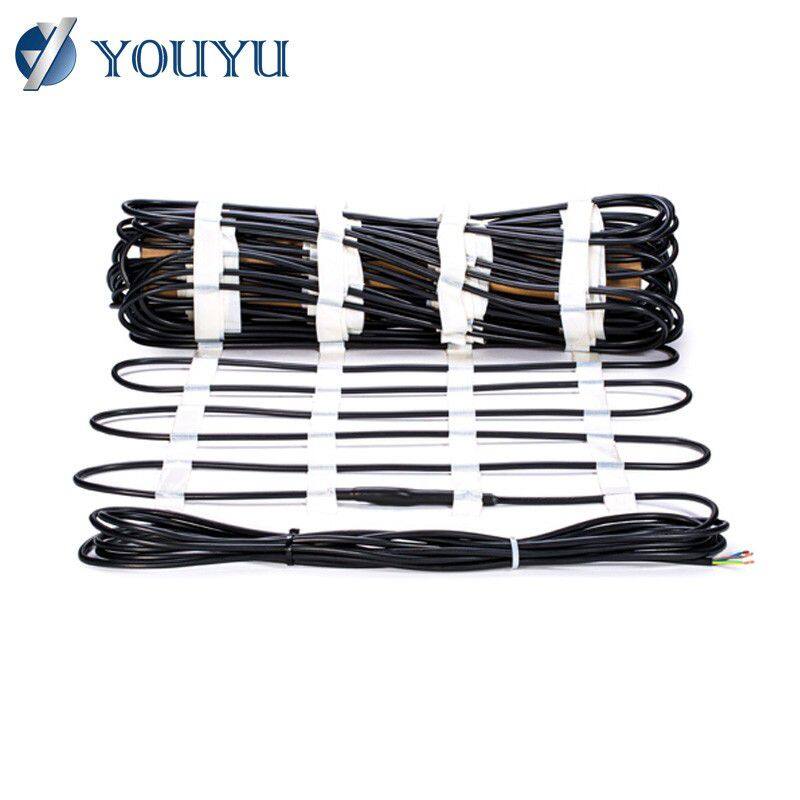

Indoor Heating Mat
