Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Deicing and Defrosting Roof Snow Melting Heating Cable Driveway Heating Cable
Deicing and Defrosting Roof Snow Melting Heating Cable Driveway Heating Cable
US$ 2.11
≥100 Meters
Key Specifications
Get Latest Price
Insulation Material:
XLPE,FEP,PVC
Conductor Material:
Copper, Copper
Jacket:
XLPE,FEP,PVC
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12 Volt Heating Cable Self-regulating Cable for Underfloor Electric Heating Trace CableUS$ 3.51MOQ: 100 Meters -
Under Tile Electrical Flooring Heat Trace Cable Underfloor Heating Cable 12v 24v 36bUS$ 3.51MOQ: 100 Meters
-
Heating Cable 220v Underfloor Gutter Downspout Heating Cable 110v Outdoor Flat HeatingUS$ 3.51MOQ: 100 Meters
-
Household Heating Electric Heating Cable Household Heating CableUS$ 5.62MOQ: 50 Meters
-
12~380V Pipe Electric Heating Cable Self Regulating Heating CableUS$ 3.51MOQ: 100 Meters
Jacket
XLPE,FEP,PVC
Number of Conductors
Customers' Demand
Model Number
Customize
Brand Name
Youyu
Place of Origin
Anhui, China
Length
1 m
Number of Conductor
1~2
Rated Voltage
230V
Conductor insulation
XLPE,FEP,PVC
Outer Insulation
XLPE,FEP,PVC
Min. Installation Temp.
-20℃
Cold lead
2M
Output
13w/m, 17w/m, 20w/m, 30w/m
Product Description

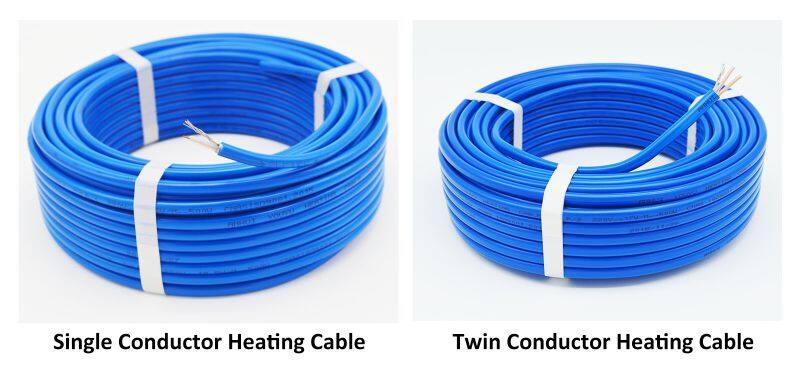

Heating cable using alloy resistance wire for electric heating to achieve heating effect. The heating cable is divided into single conductor heating cable and twin conductor heating cable.
Working Principle

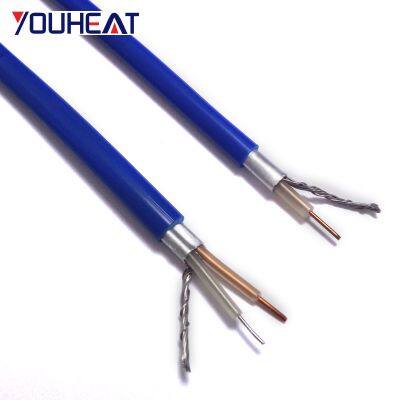

The inner core of the heating cable is composed of cold wire and hot wire. The outer core is composed of an insulating layer, a grounding layer, a shielding layer and an outer jacket. After the heating cable is energized, the hot wire heats up and runs between 40 and 60 degrees Celsius. The heating cable embedded in the filling layer transmits the heat energy through the way of heat conduction (convection) and emits the far infrared radiation of 8-13um.
Product Advantage
1. Comfortable, healthy, clean, long life and no maintenance.
2. Spacious, simple, warm, damp proof and mildew proof.
3. Safety, efficiency, environmental protection, energy saving and low cost.
There is no leakage and short circuit in heating by heating cable, and there is no danger;
The temperature of each room can be shut down and adjusted Sseparately.

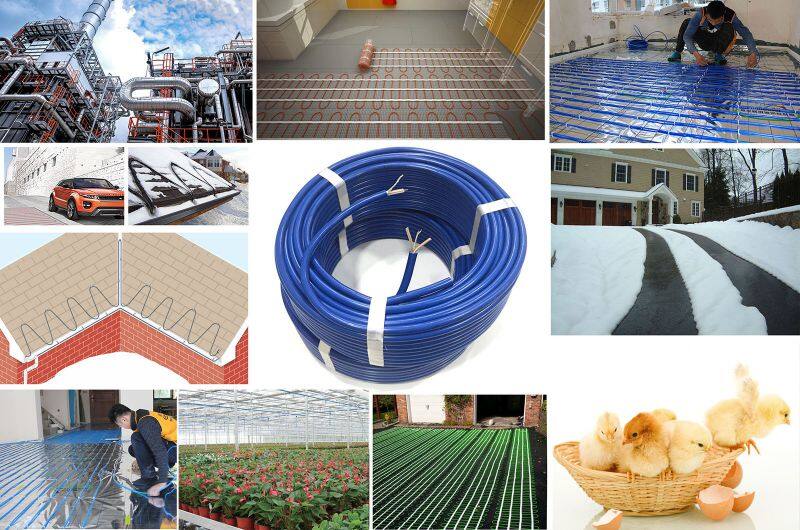

Scope of Application
1. Road snow melting
2. Pipe insulation
3. Soil heating system

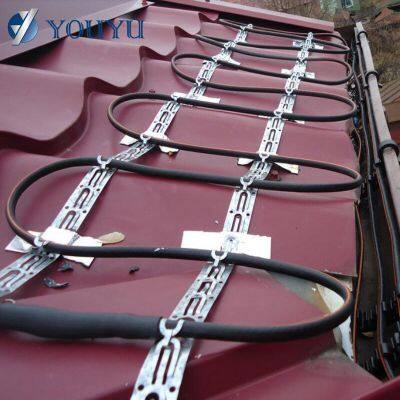

4. Roofing melting snow and melting ice
Working Principle
The inner core of the heating cable is composed of cold wire and hot wire. The outer core is composed of an insulating layer, a grounding layer, a shielding layer and an outer jacket. After the heating cable is energized, the hot wire heats up and runs between 40 and 60 degrees Celsius. The heating cable embedded in the filling layer transmits the heat energy through the way of heat conduction (convection) and emits the far infrared radiation of 8-13um.
Product Advantage
1. Comfortable, healthy, clean, long life and no maintenance.
2. Spacious, simple, warm, damp proof and mildew proof.
3. Safety, efficiency, environmental protection, energy saving and low cost.
There is no leakage and short circuit in heating by heating cable, and there is no danger;
The temperature of each room can be shut down and adjusted Sseparately.
Scope of Application
1. Road snow melting
2. Pipe insulation
3. Soil heating system
4. Roofing melting snow and melting ice
Data Sheet of 13W/M Underfloor Heating Cable | ||||||||||
Catalog Number | Rated Voltage | W/M | Length(M) | Output Power (W) | Heating Area (Square Meter) | |||||
FTC-150-13-2 | 110/220 | 13 | 11.5 | 150 | 1SQM | |||||
FTC-225-13-2 | 110/220
| 13 | 17.3 | 225 | 1.5SQM | |||||
FTC-300-13-2 |
110/220
| 13 | 23.1 | 300 | 2SQM | |||||
FTC-375-13-2 |
110/220
| 13 | 28.8 | 375 | 2.5SQM | |||||
FTC-450-13-2 |
110/220
| 13 | 34.6 | 450 | 3SQM | |||||
FTC-525-13-2 |
110/220
| 13 | 40.4 | 525 | 3.5SQM | |||||
FTC-600-13-2 |
110/220
| 13 | 46.2 | 600 | 4SQM | |||||
FTC-675-13-2 |
110/220
| 13 | 51.9 | 675 | 4.5SQM | |||||
FTC-750-13-2 |
110/220
| 13 | 57.7 | 750 | 5SQM | |||||
FTC-900-13-2 |
110/220
| 13 | 69.2 | 900 | 6SQM | |||||
FTC-1050-13-2 | 220 | 13 | 80.8 | 1050 | 7SQM | |||||
FTC-1200-13-2 |
220
| 13 | 92.3 | 1200 | 8SQM | |||||
FTC-1350-13-2 |
220
| 13 | 103.8 | 1350 | 9SQM | |||||
FTC-1500-13-2 |
220
| 13 | 115.4 | 1500 | 10SQM | |||||
FTC-1650-13-2 |
220
| 13 | 126.9 | 1650 | 11SQM | |||||
FTC-1800-13-2 |
220
| 13 | 138.5 | 1800 | 12SQM | |||||
Data Sheet of 17W/M Double Conductor Heating Cable | ||||||||
Catalog Number | Rated Voltage | W/M | Length(M) | Output Power(W) | ||||
FTC-300-17-2 | 110/220 | 17 | 17 | 300 | ||||
FTC-400-17-2 | 110/220
| 17 | 23 | 400 | ||||
FTC-500-17-2 |
110/220
| 17 | 29 | 500 | ||||
FTC-600-17-2 |
110/220
| 17 | 35 | 600 | ||||
FTC-700-17-2 |
110/220
| 17 | 41 | 700 | ||||
FTC-850-17-2 |
110/220
| 17 | 50 | 850 | ||||
FTC-1000-17-2 |
110/220
| 17 | 58 | 1000 | ||||
FTC-1200-17-2 | 220 | 17 | 70 | 1200 | ||||
FTC-1400-17-2 | 220 | 17 | 82 | 1400 | ||||
FTC-1600-17-2 | 220 | 17 | 94 | 1600 | ||||
FTC-1800-17-2 | 220 | 17 | 105 | 1800 | ||||
FTC-2000-17-2 | 220 | 17 | 117 | 2000 | ||||
FTC-2200-17-2 | 220 | 17 | 129 | 2200 | ||||
FTC-2400-17-2 | 220 | 17 | 141 | 2400 | ||||
FTC-2600-17-2 | 220 | 17 | 153 | 2600 | ||||
FTC-2800-17-2 | 220 | 17 | 164 | 2800 | ||||
FTC-3000-17-2 | 220 | 17 | 176 | 3000 | ||||
FTC-3300-17-2 | 220 | 17 | 194 | 3300 | ||||
Data Sheet of 30W/M Double Conductor Heating Cable | ||||||||
Catalog Number | Rated Voltage | W/M | Length(M) | Output Power(W) | ||||
FTC-300-30-2 | 230 | 30 | 10 | 300 | ||||
FTC-450-30-2 | 230 | 30 | 15 | 450 | ||||
FTC-600-30-2 | 230 | 30 | 20 | 600 | ||||
FTC-750-30-2 | 230 | 30 | 25 | 750 | ||||
FTC-900-30-2 | 230 | 30 | 30 | 900 | ||||
FTC-1050-30-2 | 230 | 30 | 35 | 1050 | ||||
FTC-1200-30-2 | 230 | 30 | 40 | 1200 | ||||
FTC-1350-30-2 | 230 | 30 | 45 | 1350 | ||||
FTC-1500-30-2 | 230 | 30 | 50 | 1500 | ||||
FTC-1800-30-2 | 230 | 30 | 60 | 1800 | ||||
FTC-2100-30-2 | 230 | 30 | 70 | 2100 | ||||
FTC-2400-30-2 | 230 | 30 | 80 | 2400 | ||||
FTC-2700-30-2 | 230 | 30 | 90 | 2700 | ||||
FTC-3000-30-2 | 230 | 30 | 100 | 3000 | ||||
FTC-3300-30-2 | 230 | 30 | 110 | 3300 | ||||
FTC-3600-30-2 | 230 | 30 | 120 | 3600 | ||||
FTC-3900-30-2 | 230 | 30 | 130 | 3900 | ||||
FTC-4200-30-2 | 230 | 30 | 140 | 4200 | ||||
Company Information
Anhui Youyu Electric Heating Equipment Co., Ltd was founded in 2012, located in High-tech Industrial Development Zone, Wuhu city, Anhui province, China. It is an energy saving, high and new technology enterprise which integrates professional research, manufacture, sale, engineer, design and construction and has independent intellectual property.
In a few years, company has obtained EAC, CE, ROHS, ATEX, ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health management certificate and many other industry quality and explosion proof certificates. Taking client on top priority, we set up strict quality control system and considerate after-sale service. We warmly welcome partners from home and abroad to establish long-term business relations.
Certificates
CSA, EAC, CE, ROHS, ATEX, ISO9001, ISO14001, OHSAS18001
Customers
FAQ
1. Are you manufacturer or trading company?
We are professional heating cable manufacturer founded in 2012, located in Wuhu city, Anhui Province, China. Welcome to visit our factory!
2. What's the Minimum Order Quantity?
There is no MOQ requirement for standard product.
And the MOQ for customized product is 10pcs
3. What is your delivery time?
Normally within 7~15 days, The specific delivery time is determined according to the product model and quantity you ordered.
4. What's the payment term?
T/T, L/C, Western Union, Paypal, Alibaba secure payment, D/P.
5. Can you provide samples for testing before placing orders ?
Yes, we can provide samples to check quality and testing its performance.
6. What is warranty of your product?
5 years free warranty for outdoor snow melting and de-icing heating cable.
7. Can you do OEM and ODM for us?
Yes, we can provide professional OEM and ODM services. We have an experienced R&D technical team that can provide you with standard and customized products.
8.If your heating cable eco-friendly?
Our heating mat is all in accordance with ROHS, you can buy and use freely.
9. What are the application ranges of heating cables?
We have 13w/m, 17w/m, 20w/m, 30w/m heating cable, they are widely used for underfloor heating, soil heating, snow melting and ice melting, animal husbandry, tunnel and subway fire protection, etc.
Main Products
Self Regulating Heating Cable
Constant Wattage Heating Cable
Twin Conductor Heating Cable
Thermostat
Indoor Heating Mat
Outdoor Heating Mat
