Outboard Motor Model |
JP9.0 |
Displacement (ml) |
225 |
Bore × Stroke (mm) |
72×55 |
Compression Ratio |
8.7:1 |
Maximum Power (kw/r/min) |
>4.5/3600 |
Maximum Torque (Nm/r/min) |
13/2600 |
Minimum Fuel Consumption (g/kw·h) |
>395 |
Fuel Tank Capacity (L) |
1.3 |
Lubricating Oil Capacity (L) |
0.7 |
Spark Plug Gap (mm) |
0.6-0.8 |
Ignition System |
Transistor Contactless Electronic Ignition (TCI) |
Propeller Configuration |
3-blade/Aluminum |
Mounting Height (cm) |
45-50 |
Transmission Mode |
Shaft Drive |
Installation Method |
Clamp-on Type |
Steering Mode |
Motor Rotation |
Starting Method |
Recoil Pull Start |
Net Weight/Gross Weight (kg) |
24/30 |
Package Dimensions (cm) |
115×35×45 |

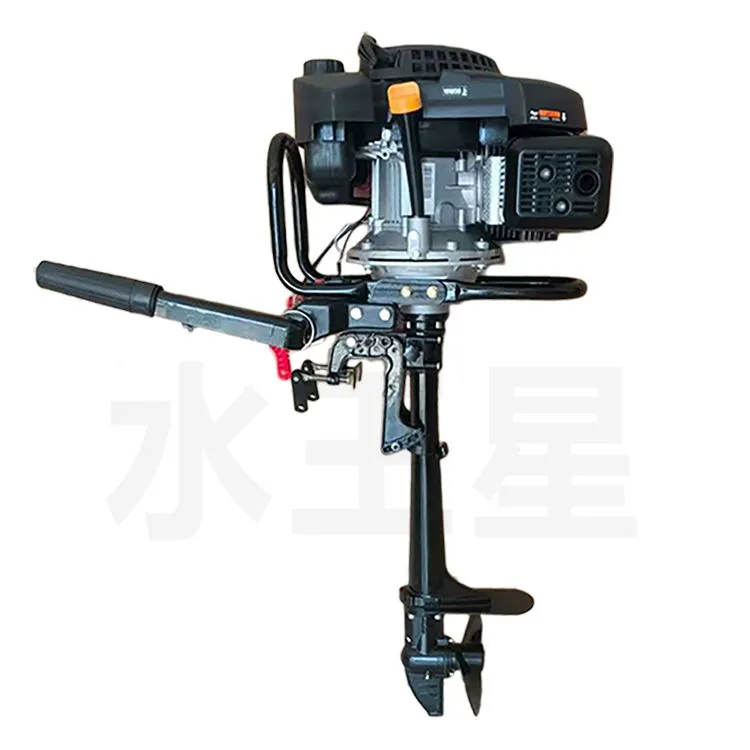

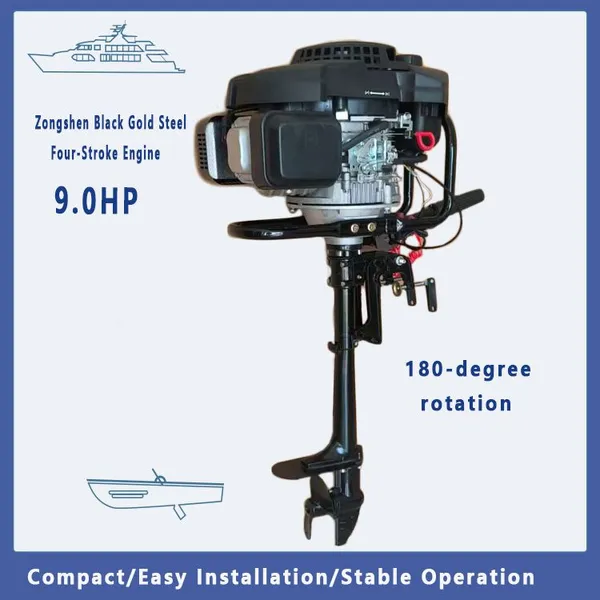

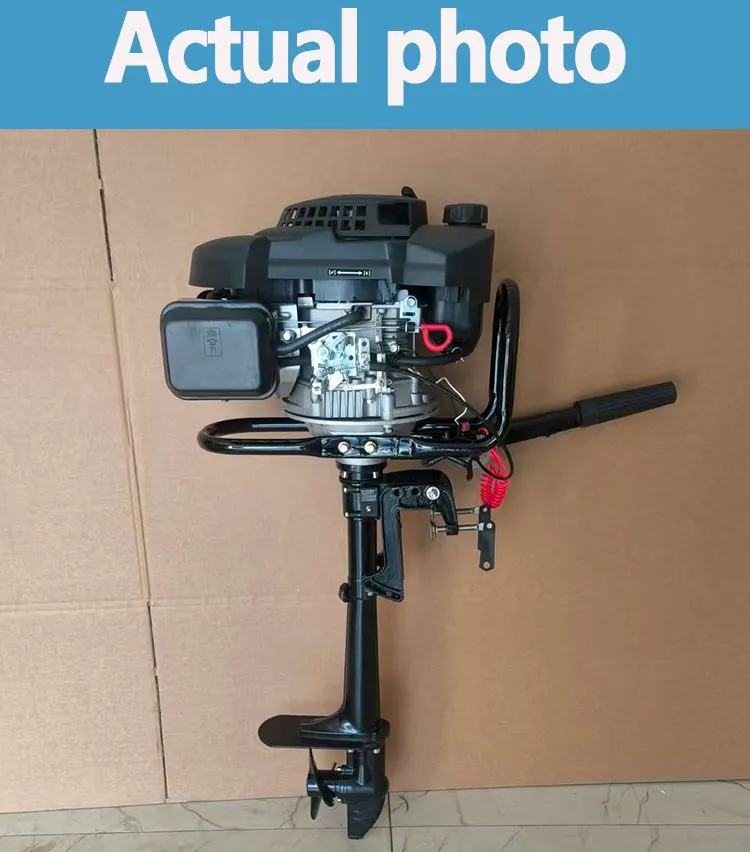

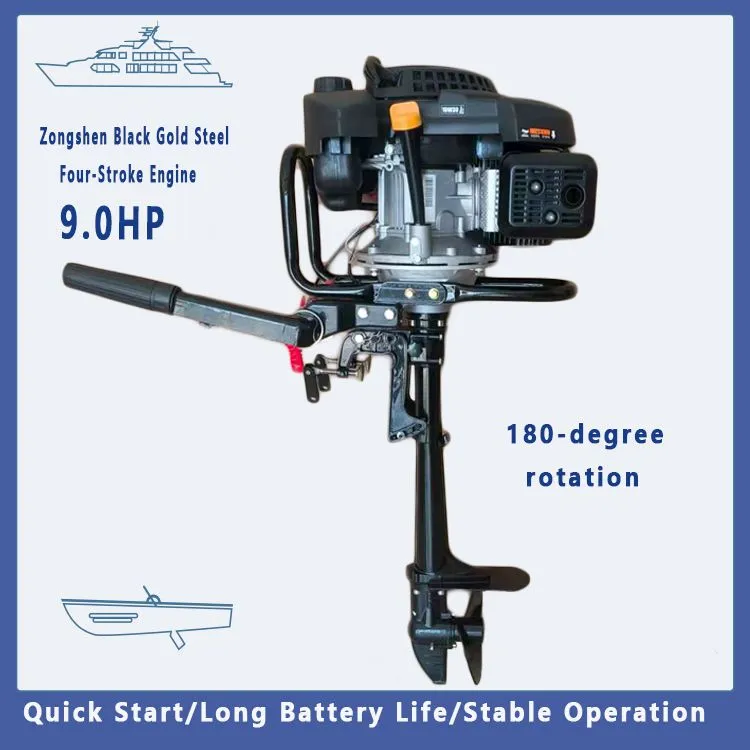

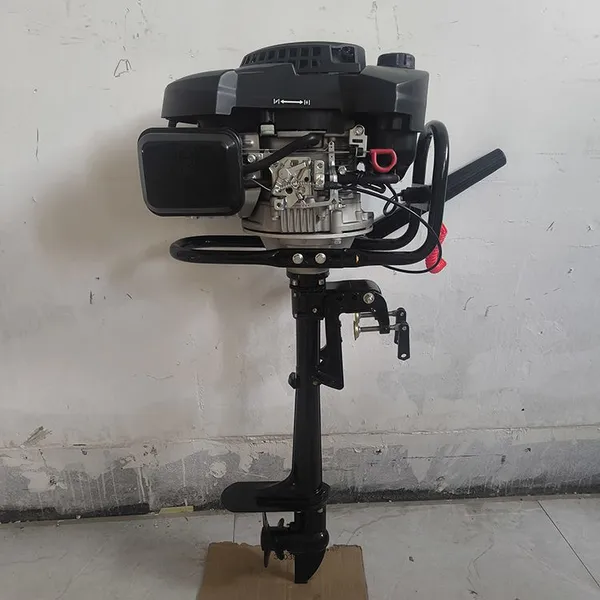

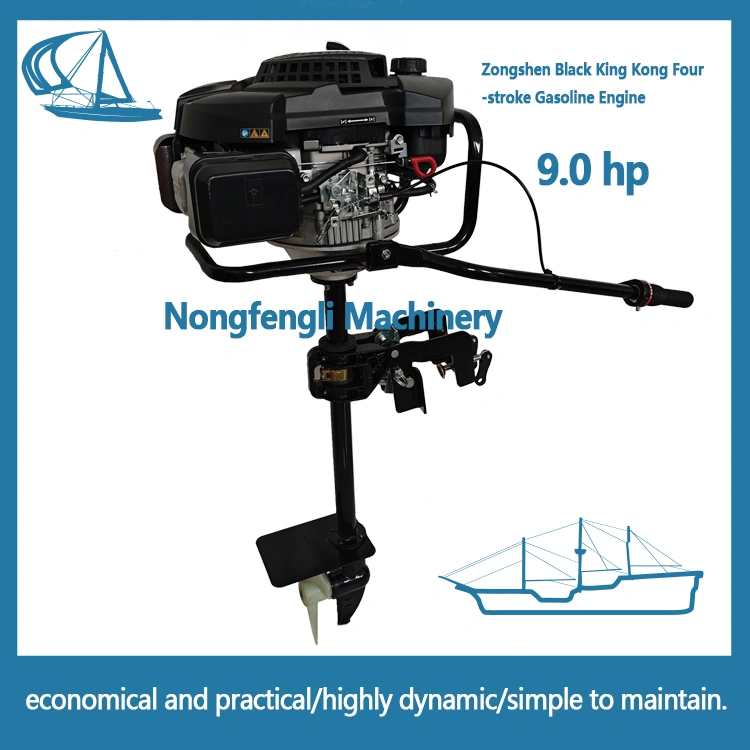

Brief Introduction to Outboard Motors
The small four-stroke air-cooled outboard motor is a lightweight and high-efficiency marine propulsion device specially designed for small vessels (such as plastic boats, wooden boats and fiberglass fishing boats). It adopts a four-stroke cycle engine (intake, compression, combustion, exhaust) combined with an air-cooled heat dissipation system, eliminating the need for water-cooling devices, and features a compact structure and easy installation.
Its working principle is based on power generated by fuel combustion: the piston completes four strokes inside the cylinder, and the ignited fuel mixture pushes the crankshaft to rotate, which in turn drives the propeller to propel the vessel. The air-cooled system achieves natural cooling through the heat sinks on the engine casing and airflow from the fan, avoiding the complex pipelines and water pumps of water-cooled systems, thus enabling simple maintenance and low risk of clogging.
The main advantages are as follows:
High Efficiency and Environmental Friendliness: The four-stroke design ensures high fuel utilization rate, saving 20–30% of fuel consumption compared with two-stroke models, and greatly reducing exhaust emissions, which is in line with the trend of green navigation.
Durable and Low-Maintenance: The air-cooled structure has no liquid cooling components, reducing the overall weight (the whole machine usually weighs 20–50 kg) and the risk of corrosion, making it suitable for long-term use in both freshwater and seawater environments.
Cost-Effective and Practical: It features low purchase cost and easy starting, making it ideal for individual users and small vessels.
