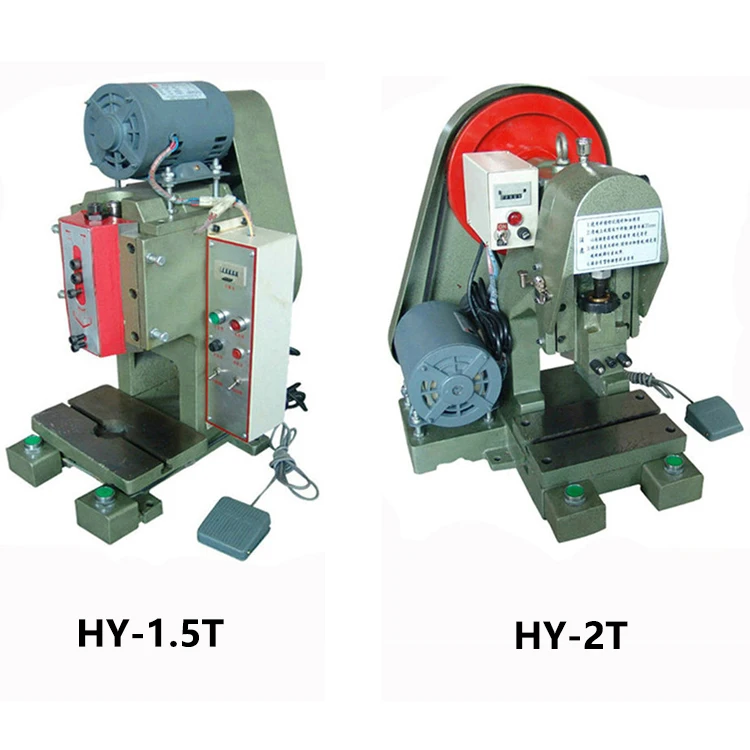

Help CenterDesktop Precision High-speed Punch Press | 2-ton Small Electric Punch Press for the Electronic Toy Industry
Related Products
-
Small Foot-operated 1.5-ton Precision Punch Press | Tabletop High-speed Punch Press EquipmentUS$ 4248 - 4398MOQ: 1 Unit -
HY-E02 EI Transformer Hand-cranked Silicon Steel Sheet Inserting MachineUS$ 318 - 386MOQ: 1 Unit
-
HY-J02 Magnetic Ring Inductance Lead Cutting and Shaping Processing EquipmentUS$ 682 - 776MOQ: 1 Unit
-
Digital Transformer Tester Machine Transformer Insulation Resistance Tester Transformer Winding Resistance Tester Transformer Turns Ratio TesterUS$ 918MOQ: 1 Combo
-
Transformer Dielectric Strength Testing Equipment Transformer Short Circuit Impedance Tester Transformer On-load Tap Changer TesterUS$ 918MOQ: 1 Combo
This punch press can be operated by hand or foot when firing single shots. For continuous firing, a feeder can be added if punching metal coils. Many functions are available.
Industry aliases: Benchtop punch press, also called tabletop punch press, small punch press, electric punch press, pneumatic punch press, small punch press, tabletop punch press, desktop punch press.

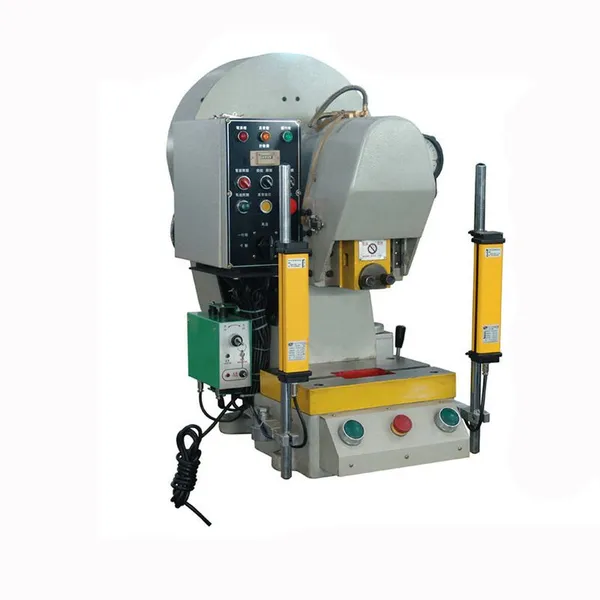

Optional accessories for small benchtop punch presses: photoelectric hand guard, frequency converter, feeder.
2. Easy-to-Adjust Press Stroke: Utilizing CAD computer-aided design, this press features an adjustable stroke for convenient operation, achieving multi-functionality.
3. High-Torque Composite Dry Clutch: Offers sensitive braking and clutch response, smooth engagement, low noise, and long service life.
4. Press Electrical System: Employs PLC programming centralized control with an independent electrical control box and photoelectric protection devices for safety and reliability.
5. Press Pneumatic System: Utilizes Japanese "MAC" brand safety solenoid valves and imported triple-unit air intakes.
| Model | HY-2T |
| Capacity | 2T |
| Adjustable stroke | 30mm |
| (Continuous) strokes/min | 150 |
| Slide bore diameter | 1*40mm |
| Table bore diameter | 75*75mm |
| Horsepower | 1/2HP*4P |
| Machine weight | 80kg |
| Mold mounting height | 165mm |
| Table dimensions (L*W) | 230*155mm |
| Machinery dimensions (L*W*H) mm | 440*450*590 |
| Slider travel | 50mm |
24 hour online technical support and 100% quality warranty for 12 months except consumable parts.
Our vision : created a century brand success for centuries
Our mission : to promote the progress and development of the most cost-effective automation technology
Our values : customer first, teamwork, loyalty, dedication, passion, dedication
Our business purpose : to satisfy customers, employees, businesses of both material and spiritual well-being
Our quality policy : quality is life, progress endless; service is fundamental, innovation to win
Our commitment : no excuses
Our two style : serious, fast
Our three thanksgiving : thanksgiving customers to create my performance,thanksgiving my career platform company, thanksgiving working with my colleagues
Dongguan Huiyue Automation Equipment Co., Ltd. FAQ:
Q: What is the power supply of the machine?
A: The standard power supply in china is 220v 50Hz. We also can customized accordingly.
Q: Our required parameter is not standard,can made to order?
A: Our machines can made to order according to customer’s requirement.
Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, etc
Q: What is the payment term?
A: T/T , L/C.
Q: What is the delivery time?
A: Normally the delivery time of the machine is 4-5 working days after receive payment.
Q: What is the warranty period of the machine?
A: The warranty period is one year.Lifetime Maintenance
