Home > Instruments & Meters > Automated Inspection Equipment > The External Clamp-on Ultrasonic Flowmeter BOS-3000B Wall-mounted Main Unit Can be Powered by 220V or 24VDC as an Option

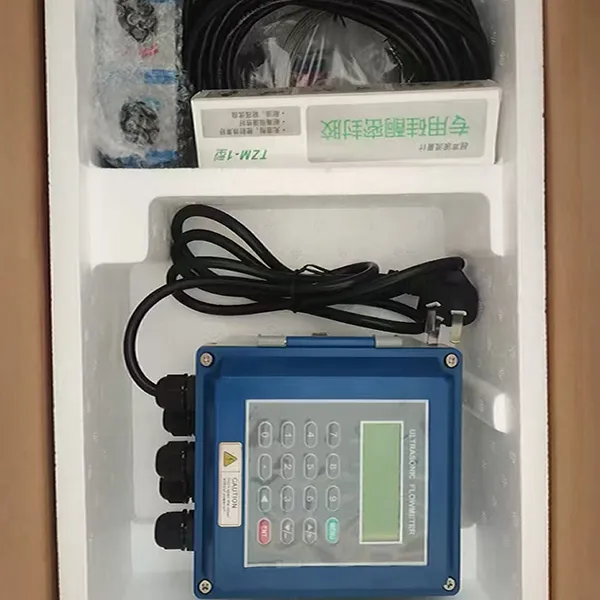

The External Clamp-on Ultrasonic Flowmeter BOS-3000B Wall-mounted Main Unit Can be Powered by 220V or 24VDC as an Option
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Intelligent Pressure Switch BOS-ZK03,24VDC,4-20mA+PNP(NPN), Produced by Qingdao HuaweiNegotiableMOQ: 10 Pieces -
Online Densitometer BOS-3051MD, Flange Installation Type, Produced by Qingdao Huawei BoshiNegotiableMOQ: 10 Pieces
-
Intelligent Differential Pressure Transmitter BOSMX2, Measuring Non-corrosive Gases, Small RangeNegotiableMOQ: 10 Pieces
-
Local Display, Battery-powered Turbine Liquid Flowmeter LWGY, Produced by Qingdao Huawei BoshiNegotiableMOQ: 10 Pieces
-
Wind Differential Pressure Transmitter, Gas Pressure/differential Pressure Transmitter, Produced by Qingdao Huawei BoshiNegotiableMOQ: 10 Pieces
Origin
CHINA
1. Introduction:
The ultrasonic flowmeter - fixed wall-mounted type is used for long-term online measurement of various liquids. The host and the sensor are installed separately. The sensor is installed on the pipeline to be measured, and the host and the sensor are connected with a special cable for ultrasonic flowmeters. It is currently the most widely used ultrasonic flowmeter.With an additional temperature sensor, it can also realize the heat (cold) quantity metering function and can monitor the heat (cold) quantity in real time.

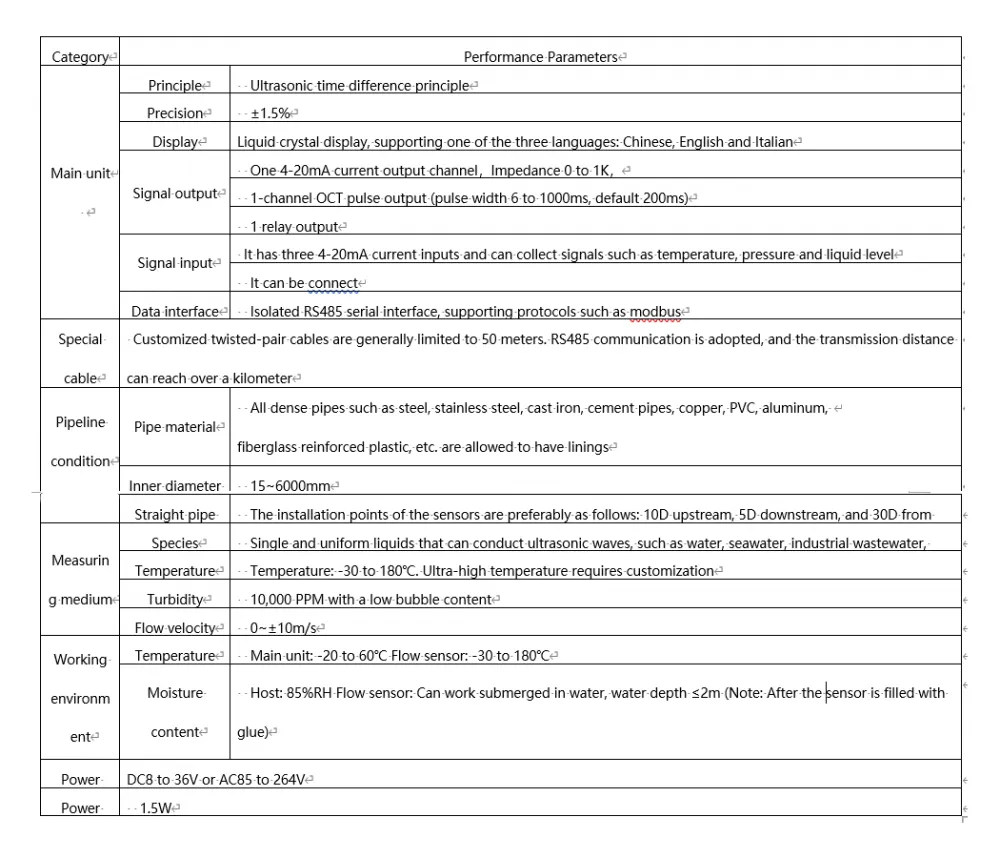

2. Technical parameters
3.Installation reference picture：
