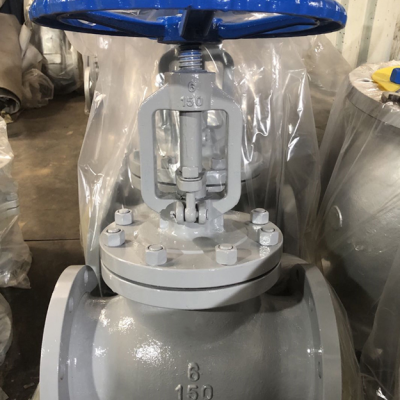

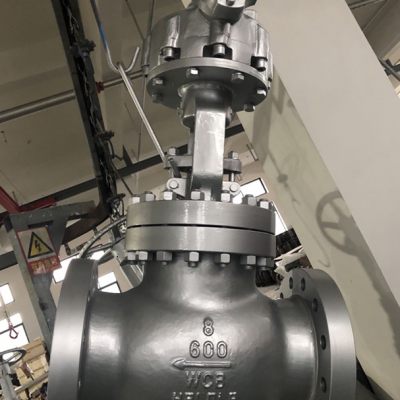

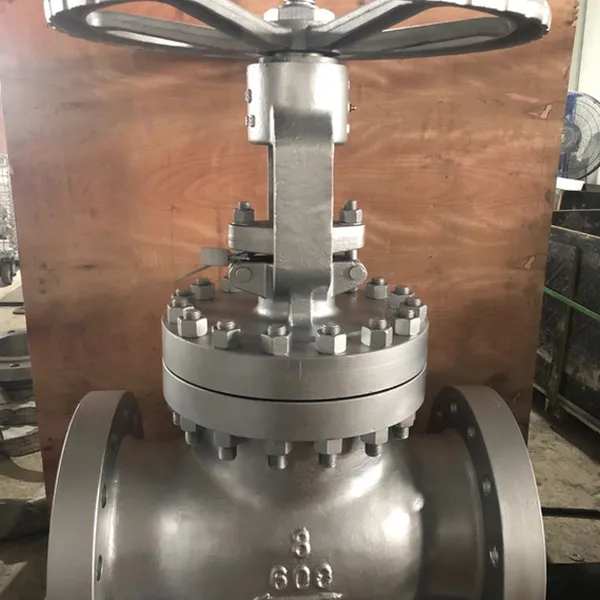

CLASS150 CLASS600 WCB ANSI Cast Steel Globe Valve
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Carbon Steel
Application:
Other
Structure:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
DIN Cast Steel GS-C25 Bellows Globe Valve Flanged ConnectionNegotiableMOQ: 1 Unit -
CLASS800 CLASS2500 Carbon Steel Stainless Steel ANSI Forged Globe ValveNegotiableMOQ: 1 Unit
-
PN40 GS-C25 DN200 DIN Cast Steel Bellows Globe ValveNegotiableMOQ: 1 Unit
-
DIN Non-rising Stem Gate Valve With Resilient Seated PN10 PN16 PN25NegotiableMOQ: 1 Unit
-
DIN Metal Seat F4 Gate Valve With Non-rising Stem From PAWOFUOU ValveNegotiableMOQ: 1 Unit
Material
Carbon Steel
Application
Other
Structure
Other
Standard
ANSI
Actuator
Manual
Sealing Form
Other
Stem Thread Position
Outside Screw Stem Globe Valve
Media
Oil
Temperature
High Temperature
Transport Package
wooden cases, pallets or as per customer request
Trademark
PVPT
Origin
CHINA
CLASS150 CLASS600 WCB ANSI cast steel globe valve
ANSI cast steel globe valve range:
1.Production Size:1/2"~12".DN15~DN300
2.Pressure:150LB,300LB,600LB,900LB
ANSI cast steel globe valve standard:
1.Design Standard:API600,API6D,BS1873
2.Face to Face:ASME B16.34
3.Flange Standard:ASME B16.5
4.Testing Standard:API 598
ANSI Cast steel Globe Valve Material of parts:
1.Body:ASTM A216 WCB
2.Bonnet:ASTM A216 WCB
3.Stem:2Cr13,SS304,SS316,Carbon Steel
4.Stem Nut:brass,Ductile iron
5.Disc:ASTM A216 WCB
6.Seat:13Cr13,Stellite
7.Hand wheel:ASTM A536 65-45-12
8.Bonnet bolt:ASTM A193 B7
9.Bonnet nut:ASTM A194 2H
10.Packing:Graphite

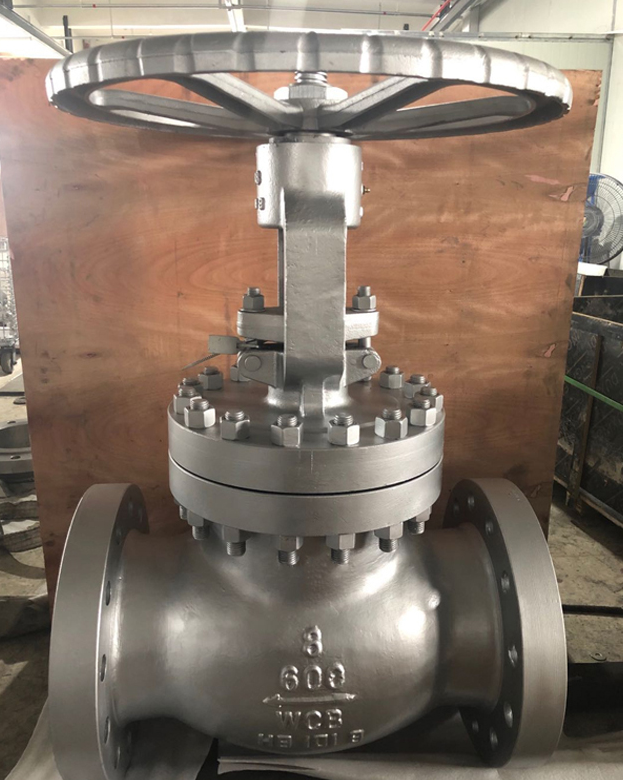

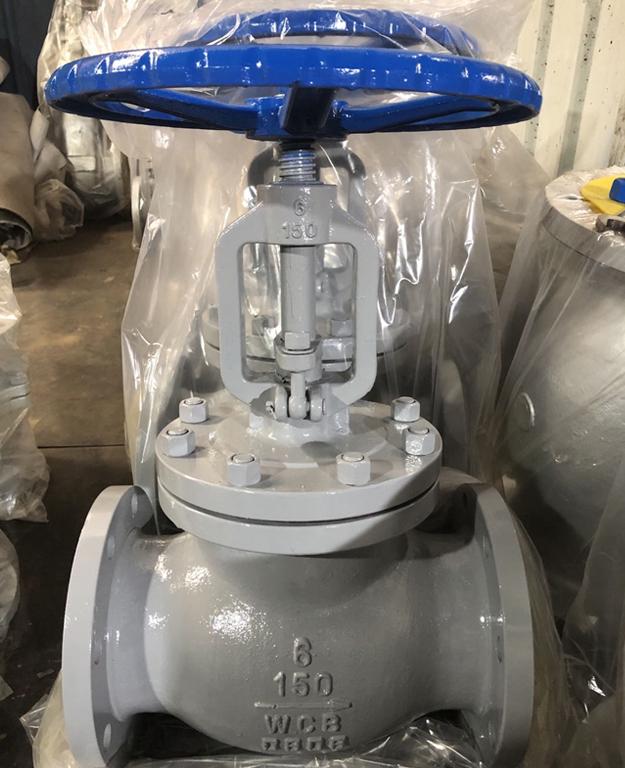

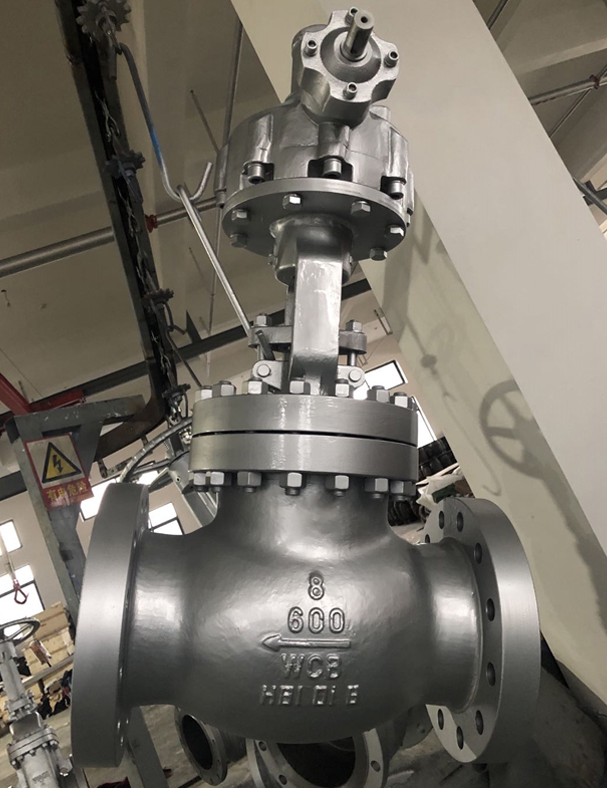

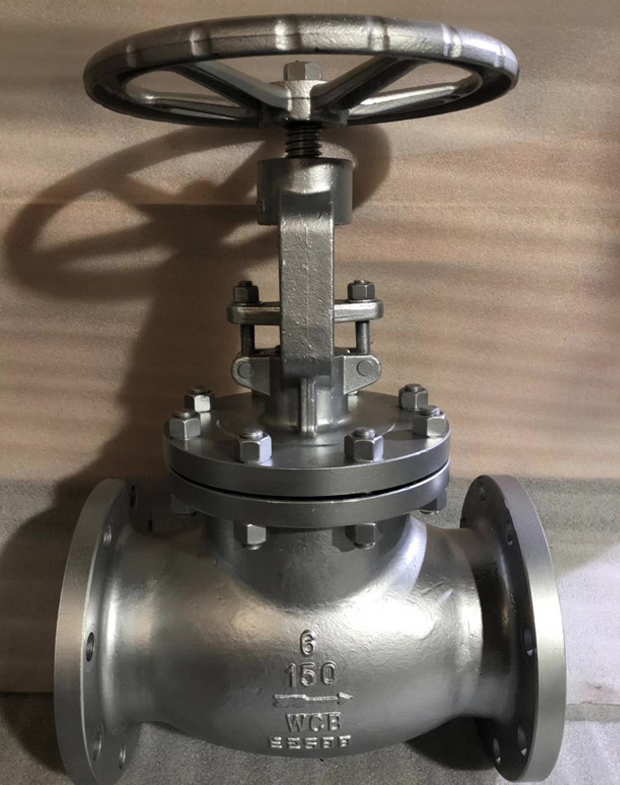

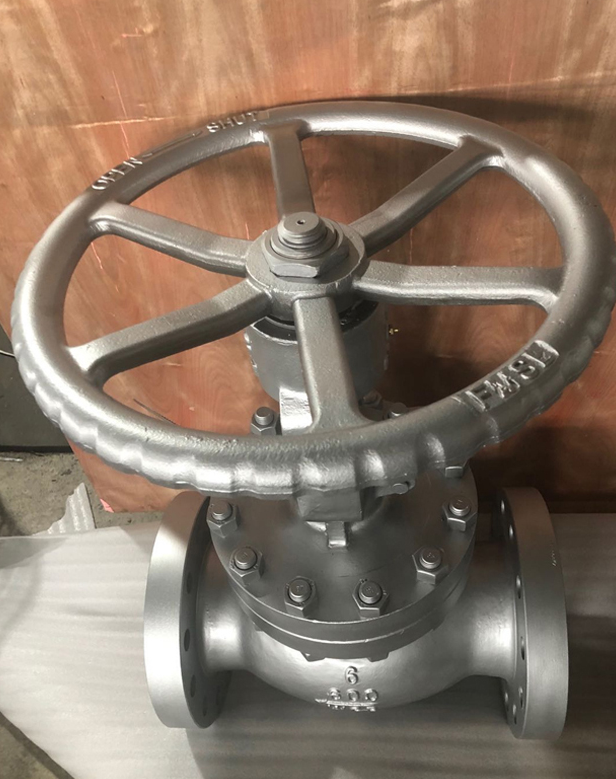

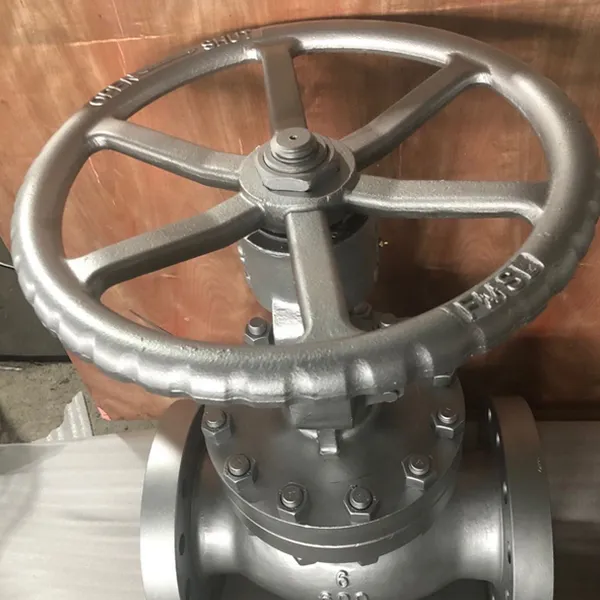

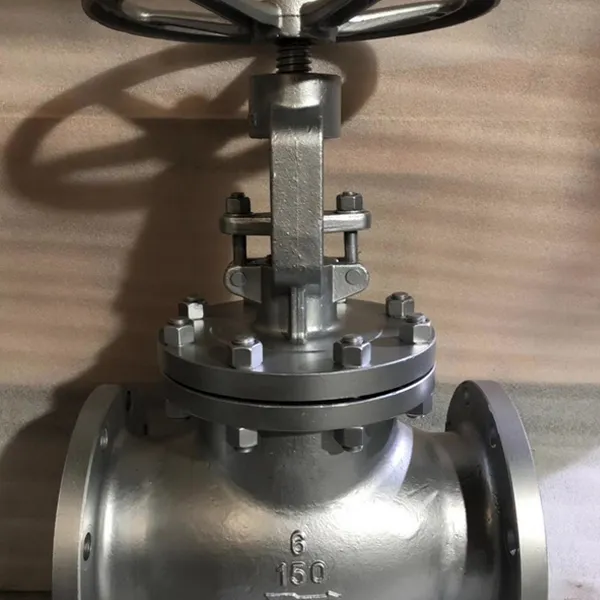

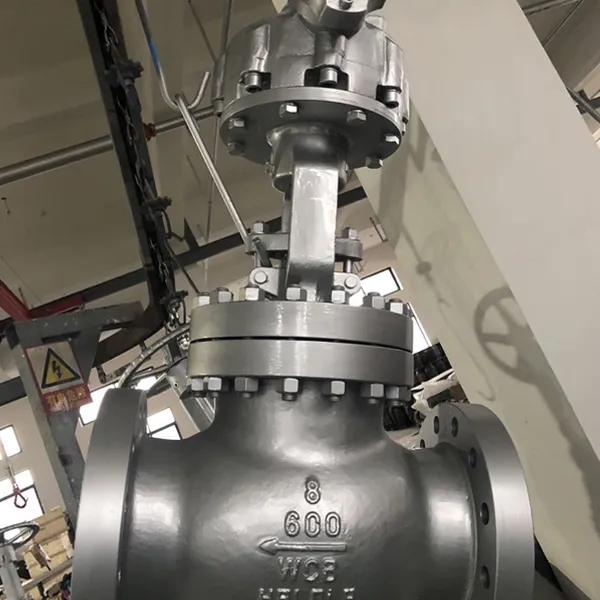

Product show
