Home > Industrial Equipment & Components > Valve > Gate Valve > DIN F5 Resilient Seal Gate Valve PN16 GGG50
DIN F5 Resilient Seal Gate Valve PN16 GGG50
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Cast Iron
Application:
Industrial Usage, Water Industrial Usage
Usage:
Safety, Flow Control
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
DIN Non-rising Stem Gate Valve With Resilient Seated PN10 PN16 PN25NegotiableMOQ: 1 Unit -
DIN Metal Seat F4 Gate Valve With Non-rising Stem From PAWOFUOU ValveNegotiableMOQ: 1 Unit
-
Face to Face F4 Resilient Seated DIN Gate Valve With Rising StemNegotiableMOQ: 1 Unit
-
ANSI Cast Steel Gate Valve With Rising Stem 150lb 300lb 600lbNegotiableMOQ: 1 Unit
-
DIN Cast Steel GS-C25 Bellows Globe Valve Flanged ConnectionNegotiableMOQ: 1 Unit
Material
Cast Iron
Application
Industrial Usage, Water Industrial Usage
Usage
Safety, Flow Control
Standard
DIN
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Inside Gate Valve
Media
Oil
Temperature
High Temperature
Pressure
Low Pressure
Connection Form
Flange
Transport Package
wooden cases, pallets or as per customer request
Trademark
PVPT
Origin
CHINA
DIN F5 resilient seal gate valve PN16 GGG50 range:
1.Production Size:DN50-DN600mm
2.Pressure range:PN10,PN16,PN25
DIN resilient seal Gate Valve Standard:
1.Design Standard:DIN3352
2.Face to Face:DIN3202 F5
3.Flange Standard:EN 1092
4.Testing Standard:EN12226
DIN resilient seal Gate Valve Main Material of parts:
1.Body:GGG45/GGG50
2.Bonnet:GGG45/GGG50
3.Stem:2Cr13/SS304/SS316/Carbon Steel
4.Stem Nut:brass
5.Disc:GGG45/GGG50
6.Seat:EPDM/NBR/PTFE
7.Hand wheel:GGG45/GGG50

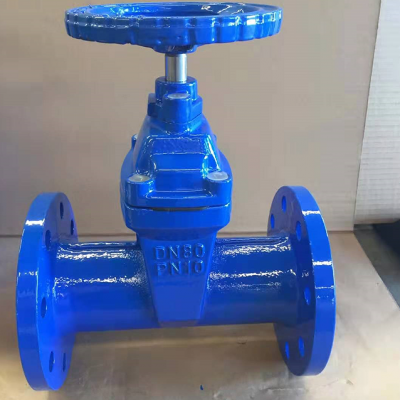

Product show
