Home > Industrial Equipment & Components > Valve > Gate Valve > ANSI Cast Steel Gate Valve With Rising Stem 150lb 300lb 600lb

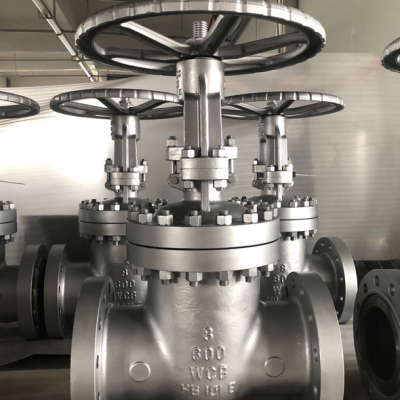

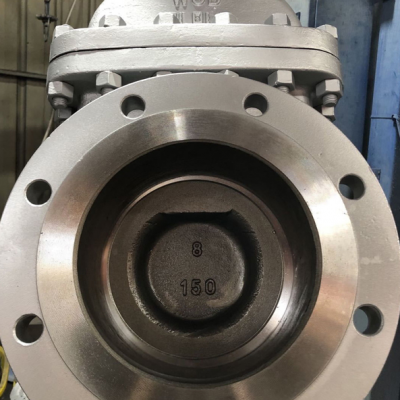

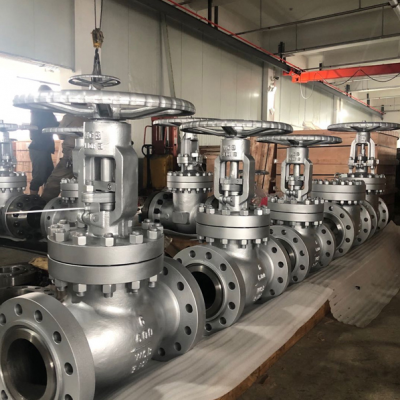

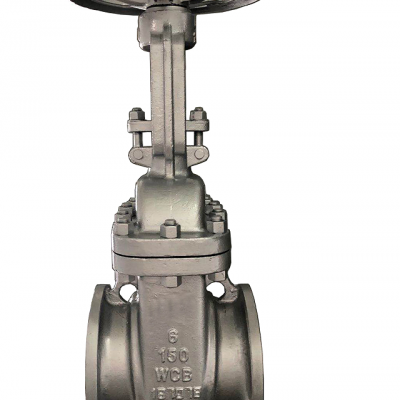

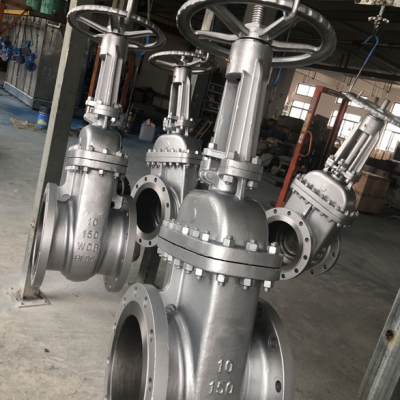

ANSI Cast Steel Gate Valve With Rising Stem 150lb 300lb 600lb
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Carbon Steel
Type:
Other
Application:
Industrial Usage, Water Industrial Usage
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
15 days
Related Products
-
DIN Cast Steel GS-C25 Bellows Globe Valve Flanged ConnectionNegotiableMOQ: 1 Unit -
CLASS800 CLASS2500 Carbon Steel Stainless Steel ANSI Forged Globe ValveNegotiableMOQ: 1 Unit
-
PN40 GS-C25 DN200 DIN Cast Steel Bellows Globe ValveNegotiableMOQ: 1 Unit
-
CLASS150 CLASS600 WCB ANSI Cast Steel Globe ValveNegotiableMOQ: 1 Unit
-
DIN Non-rising Stem Gate Valve With Resilient Seated PN10 PN16 PN25NegotiableMOQ: 1 Unit
Material
Carbon Steel
Type
Other
Application
Industrial Usage, Water Industrial Usage
Standard
ANSI
Actuator
Manual
Seal Surface
Wedge Gate Valve
Thread Position of Valve Rod
Outside Gate Valve
Media
Oil
Temperature
High Temperature
Pressure
Low Pressure
Connection Form
Flange
Transport Package
wooden cases, pallets or as per customer request
Trademark
PVPT
Origin
CHINA
ANSI cast steel gate valve with rising stem 150lb 300lb 600lb
1.Size :1"~24".(DN25~DN600)
2.Pressure:150LB,300LB,600LB,900LB,1500LB,2500LB
3.Design standard:API600,API6D
4.Face to face:ASME B16.34
5.Flange standard:ASME B16.10
6.Test standard:ASME B16.25
Main materials of parts:
1.Body:ASTM A216 WCB,A351 CF8,A351 CF8M
2.Bonnet: ASTM A216 WCB,A351 CF8,A351 CF8M
3.Stem:2Cr13,SS304,SS316,Carbon Steel
4.Stem nut:brass,Ductile iron
5.Disc:ASTM A216 WCB
6.Seat:13Cr13,Stellite
7.Handwheel:GGG45/GGG50
