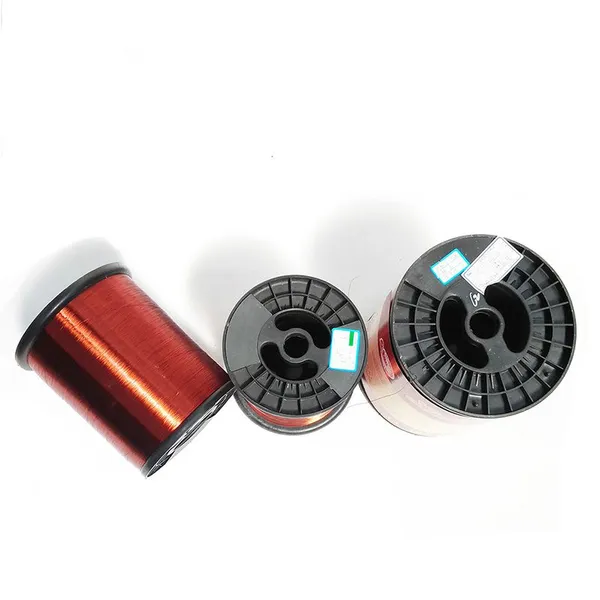

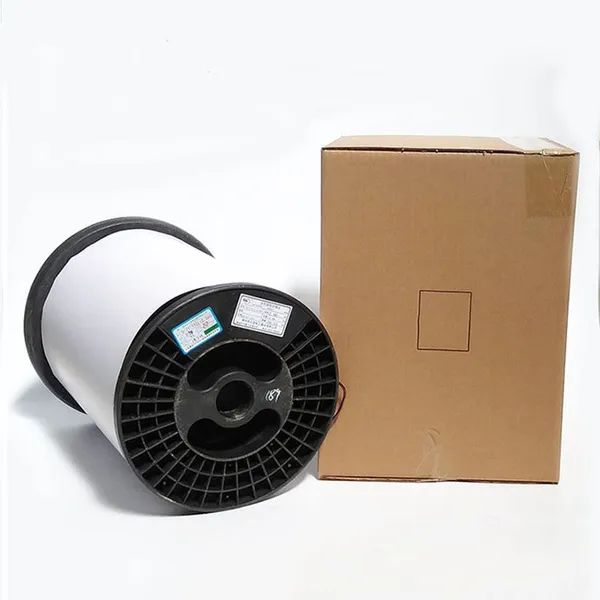

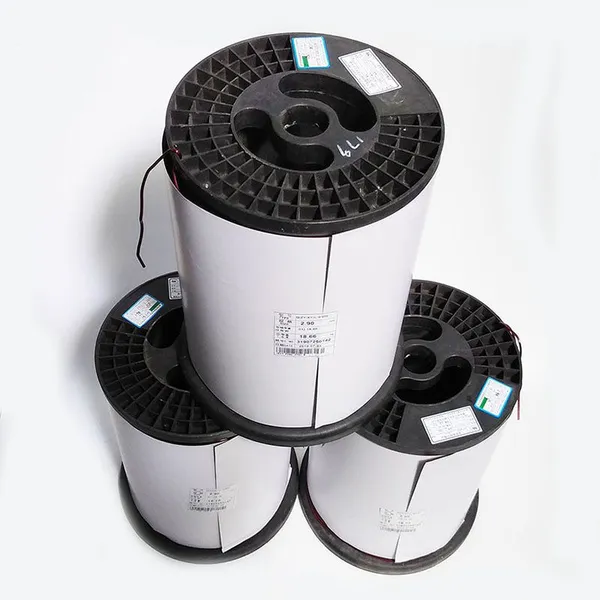

Enameled Wire IEC60317 Standard High Temperature Resistant Aluminum Round Winding Produced by Professional Equipment
US$ 3.88
500 - 4999 Kilograms
US$ 3.54
≥5000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
polyester-imide, Polyamide imide
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Enamelled Aluminium Wire Factory Direct Supply 180 Degree Factory SupplierUS$ 3 - 4.99MOQ: 1 Kilogram -
4.50 mm Aluminum Winding Wire for Transformers and Motors Factory SupplierUS$ 3 - 4.99MOQ: 1 Kilogram
-
20 Swg Enameled Copper Wire Magnetic WireUS$ 3 - 4.99MOQ: 1 Kilogram
-
QAN QZYN Self-Bonding Enameled Wire Solid Self-Soldering Polyurethane for Copper or Aluminum for Electrical WiringUS$ 9.70 - 9.85MOQ: 500 Kilograms
-
0.025mm-4.0mm Enameled Wire Wire Natural Solid Insulated Aluminum Copper Power Cable Wire ECCAUS$ 9.65 - 9.70MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY)-220
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
awg
Style:
Enameled Aluminum Wire
Shape:
Round
Heat-resisting class:
C class
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.20mm-5.00mm
Certification:
ULE234565 ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200 PT270
Conductor
Aluminum
Standard
IEC NEMA GB JIS
Product Description
Round Wire Diameter: 0.5mm-6.00mm (3awg-24awg/6swg-25swg) Magnetic wire swg
Product Name: AWG enameled aluminum wire /swg Magnetic wire
SWG AWG Gauge Class 130-220 Enameled Aluminum Round Wire Price for Rewinding of Motors
Product Name |
QZ(G)-155 |
QZ-180 |
Q(ZY/XY)-200 |
Q(ZY/XY)-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class N |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
0.20-5.00 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-8
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-13
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
