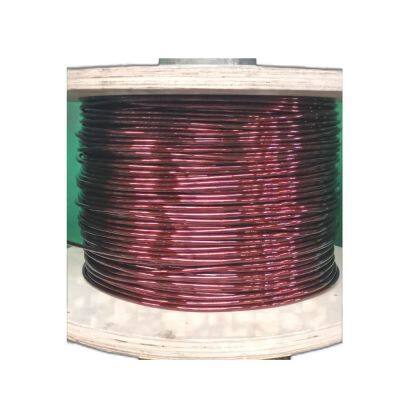

4.50 mm Aluminum Winding Wire for Transformers and Motors Factory Supplier
US$ 3 - 4.99
MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20 Swg Enameled Copper Wire Magnetic WireUS$ 3 - 4.99MOQ: 1 Kilogram -
QAN QZYN Self-Bonding Enameled Wire Solid Self-Soldering Polyurethane for Copper or Aluminum for Electrical WiringUS$ 9.70 - 9.85MOQ: 500 Kilograms
-
0.025mm-4.0mm Enameled Wire Wire Natural Solid Insulated Aluminum Copper Power Cable Wire ECCAUS$ 9.65 - 9.70MOQ: 500 Kilograms
-
China Factory Professional Manufacturer Electric Wires Aluminum Wire Varnish for UL Certification Solid Conductor AWG SWG PriceUS$ 3.50 - 3.95MOQ: 500 Kilograms
-
Transformer Winding Enameled Aluminum Magnet Wire Enameled Flat Aluminum Wire Shaped for Motor Inverter Enameled Aluminum Round WireUS$ 4.25 - 4.36MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
AI/EIW 200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
0.50-6.0mm
Style:
Enameled Aluminum Wire
Shape:
Round
Insulation Material:
polyester-imide, Polyamide imide
Bobbin:
PT25 PT30 PT60 PT200
Product Description
Product Name: 180 & 200 class enameled aluminium winding wire
Product Name |
QZ(G)L-155 |
QZYL-180 |
Q(ZY/XY)L-200 |
Q(ZY/XY)L-220 |
Thermal Class |
155, class F |
180, class H |
200, class C |
220, class N |
Coating Material |
PEW(G) |
EIW |
EI/AIW |
EI/AIW |
Cross Section Range (mm) |
0.6-6.0 |
0.6-6.0 |
0.6-6.0 |
0.6-6.0 |
Insulation Thickness (IEC) |
Grade 1
Grade 2
Grade 3
|
Grade 1
Grade 2
Grade 3
|
Grade 1 Grade 2 Grade 3 |
Grade 1 Grade 2 Grade 3 |
Standard |
GB/T6109.2
GB/T23312.4
IEC60317-3
|
GB/T6109.5
GB/T23312.5
IEC60317-25
NW30
|
GB/T6109.20
GB/T23312.7
IEC60317-15
NW35
|
GB/T6109.22
IEC60317-46
NW16
|
Product Details

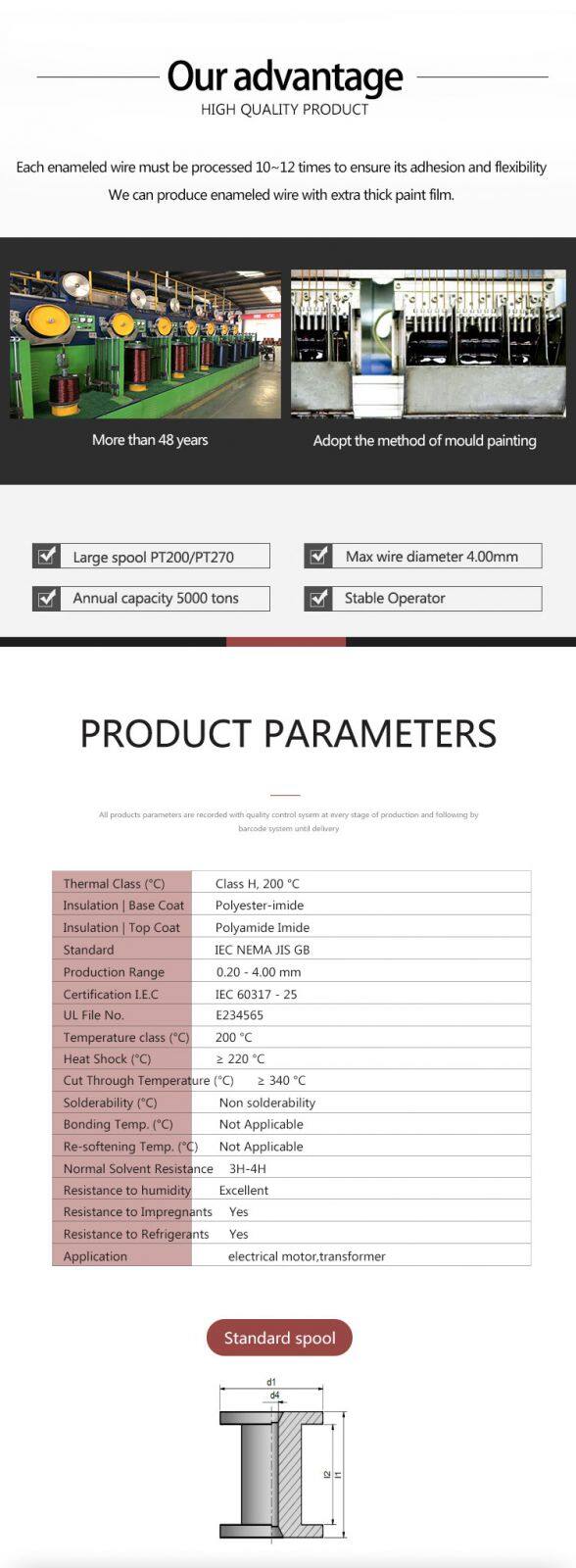

Advantage
Techinical Data
Why do enamelled aluminium wires fail to bond properly?
During the use of enameled aluminum wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled aluminum wire.
