Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > HuiLong 2 PEW /155 Super Wire Enameled Aluminum Wire Winding Wire HuiLong

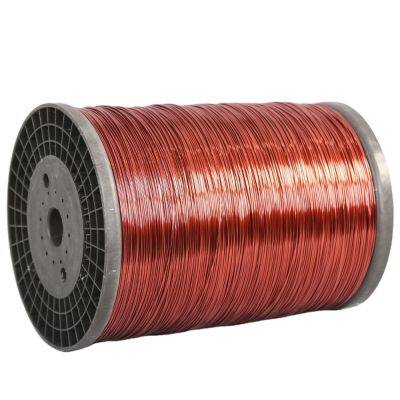

HuiLong 2 PEW /155 Super Wire Enameled Aluminum Wire Winding Wire HuiLong
US$ 3.80
500 - 4999 Kilograms
US$ 3.61
5000 - 17999 Kilograms
US$ 3.52
≥18000 Kilograms
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.5mm-6.0mm Insulated Electrical Enameled Aluminum Wire HuiLongUS$ 4 - 5MOQ: 1 Kilogram -
180/200 Class EI AIW Enameled Aluminium Winding Wire BrazilUS$ 3.70 - 4.00MOQ: 500 Kilograms
-
155 180 Class Enameled Aluminium Winding Wire PakistanUS$ 3.70 - 4.00MOQ: 500 Kilograms
-
2022 Thin 0.55 mm Magnet Wire Enameled Aluminum Wire UL WireUS$ 3.70 - 4.00MOQ: 500 Kilograms
-
High Heat Resistance Aluminum Enameling Magnet Wire for Electrical Motor 0.50-6.00 mm Aluminum Conductor PeruUS$ 3.96 - 4.36MOQ: 500 Kilograms
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
Q(ZY/XY )2 -200
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
0.60-6.0
Style:
Enameled Aluminum Wire
Shape:
Round
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.60mm-6.0mm
Certification:
ROHS REACH
Bobbin:
PT25 PT30 PT60 PT200
Product Description
Product Name: 2 PEW /155 Super wire enameled aluminum wire winding Wire
Product Name | QZ(G)L-155 | QZYL-180 | Q(ZY/XY)L-200 | Q(ZY/XY)L-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 | 0.6-6.0 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-25 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-15 NW35 | GB/T6109.22 IEC60317-46 NW16 |
Product Details
Advantage
Techinical Data
Why do enamelled aluminium wires fail to bond properly?
During the use of enameled aluminum wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled aluminum wire.
