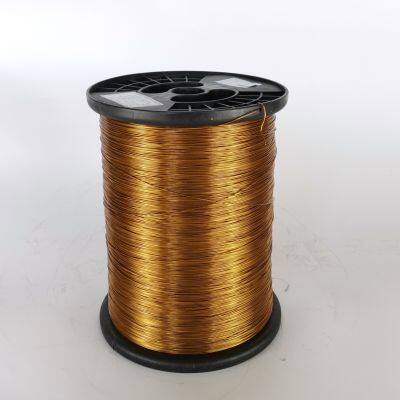

2021 New 200 Degree Aluminum Enameled Winding Wire HuiLong
US$ 4 - 6
MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
EI/AIW
Conductor Material:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Enameled Copper Wire 200 Degree Polyamideimide Size 1.0-2.0 mm StockUS$ 3 - 6MOQ: 1 Kilogram -
200 Degree Polymideimide Enameled Copper Wire UL WireUS$ 3 - 6MOQ: 1 Kilogram
-
EIW Winding Wire Aluminum Round Wire PakistanUS$ 3 - 5MOQ: 1 Kilogram
-
2022 Factory 6.0mm Enameled Aluminium Wire Manufacturers QatarUS$ 4 - 6MOQ: 1 Kilogram
-
AI EIW Insulated Wire 0.75 mm 1.0 mm 1.5 mm 2.5 mmUS$ 4 - 6MOQ: 1 Kilogram
Type
Insulated
Conductor Material
Aluminum
Conductor Type
Solid
Model Number
QZYL-180
Brand Name
YONGDONG
Place of Origin
Shandong, China(Mainland)
Diameter:
swg 19
Style:
Enameled Aluminum Wire
Shape:
Round
Insulation Material:
polyester-imide, Polyamide imide
Production Range:
0.50mm-6.0mm
Bobbin:
PT25 PT30 PT60 PT200
Product Description
Round Wire Diameter: 0.50mm -6.0mm
Scope: 5awg-32awg/7swg-35swg
Product Name: 2021 new 200 degree aluminum enameled winding wire
Product Name | QZ(G)-155 | QZ-180 | Q(ZY/XY)-200 | QY-220 |
Thermal Class | 155, class F | 180, class H | 200, class C | 220, class N |
Coating Material | PEW(G) | EIW | EI/AIW | EI/AIW |
Cross Section Range (mm) | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 | 0.2-4.5 |
Insulation Thickness (IEC) | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 | Grade 1 Grade 2 Grade 3 |
Standard | GB/T6109.2 GB/T23312.4 IEC60317-3 | GB/T6109.5 GB/T23312.5 IEC60317-8 NW30 | GB/T6109.20 GB/T23312.7 IEC60317-13 NW35 | GB/T6109.22 IEC60317-46 NW16 |
Product Details
Advantage
Techinical Data
Why do enamelled aluminium wires fail to bond properly?
During the use of enameled aluminum wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled aluminum wire.
Packing & Delivery
Certifications
Our Company
FAQ
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
1Yr
Business Type
Manufacturer
Year Established
1970
Factory Size
10,000-30,000 square meters
Annual Export Value
Above US$100 Million
