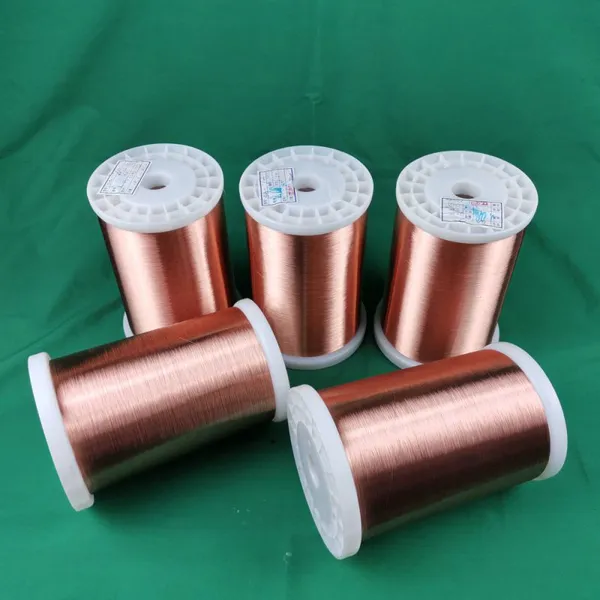

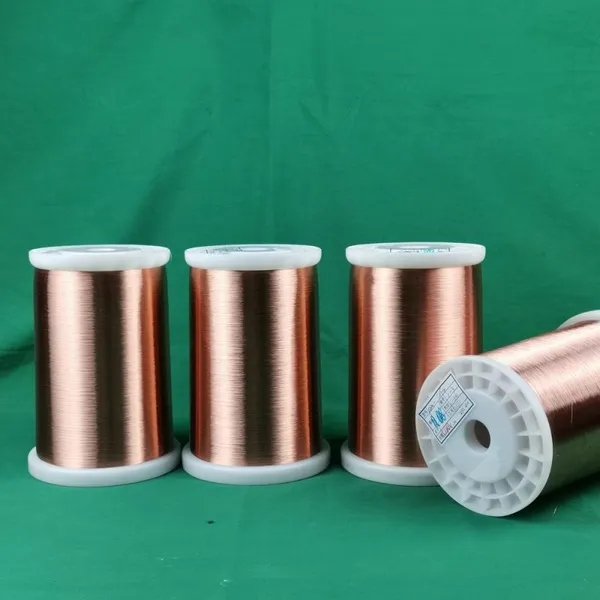

1. Grade: PEW 130 155
2. Size: 0.06mm--2.0mm
3. IEC 60317-20 DIN EN 60317-20
NEMA MW-79C
UL approved
RoHS compliant according to 2011/65 EC
Product Name |
suppliers of electrical copper wire 005MM |
Material |
Copper rod |
Color |
brown |
Standard |
GB IEC JIS NEMA |
Grade |
130class 155class |
Insulating paint |
polyurethane coating. |
Used |
Small motors and transformers • Magnetic coils • Testing and control devices. |
Applications
|
Suitable for automated soldering equipment used for manufacturing of small motors, transformers, relays and magnet coils. |
Insulation Coatings |
Polyurethane 130 155
0.16mm
|
Adhesion & elongation |
>30% |
Elongation at break |
≥ 19 %
|
Electric conductivity |
58.5 m/Ωmm2 |
Why do enamelled aluminium wires fail to bond properly?
During the use of enameled copper wire, cracking, patent leather or cracking may occur, it collectively referred to as adhesion problems for the following reasons:
1. The first coat of paint is too thin
2. The thickness of the paint is not uniform, one side is thick, the other side is thin.
3. Paint film thickness uneven at different courses.
4. The speed of the machine is not suitable, resulting in insufficient curing or over curing
5. The material problem of the insulating paint itself.
6.The diameter of enameled aluminum wire is not round.
That is all the reasons we often meet with the unqualified adhesion of enameled copper wire.
Free sample
Our company provides free samples.
Visit Our factory
Welcome to our company to visit and inspect the factory.
Best price
Our company can provide high quality quotation for customers' reference. Our company can provide non-national standard line number.
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
1. Different size spools
2. Prevent bumping sponge paper
3. Thickened carton
4. Wooden tray that does not require fumigation
5.Fixed container
6. Our products
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
