1. Grade: Polyurethane 180
2. Size:0.80mm
3. Standard: IEC NEMA JIS GB

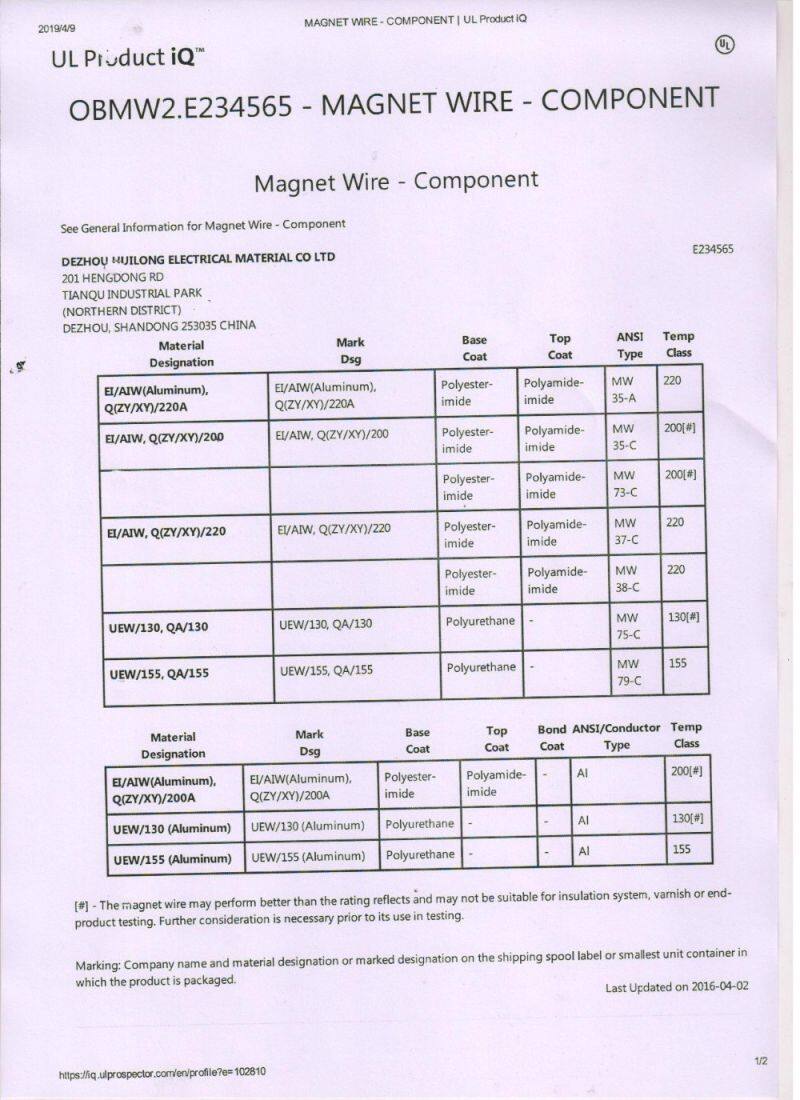

4. Certification: ISO9001, SGS, ULE234565, ROHS
Product Name | 13 procedures to ensure that the inspection of paint wrapped copper wire |
Material | Copper rod |
Color | brown |
Standard | GB IEC JIS NEMA |
Grade | 130/155/180/200/220 |
Insulating paint | Polyester/Polyurethane/Polyamideimide |
Used | Micro motor, micro transformer,electromagnetic coil, transformer, motor, reactor |
Applications | Suitable for automated soldering equipment used for production/manufacturing of small motors, transformers, relays and magnet coils. |
Insulation Coatings | Polyurethane 180 |
Elongation | >30% |
Springiness | <50 |
Resistance to Abrasion | >67.75N |
Breakdown Voltage | 5KV |
Temperature Index | 180 |
Cut through | 2min ≥ 230°C |
Heat Shock | 1d, 1/2 h ≥ 200°C |
Solderability | 390° |
Electrical Resistivity @ 20°C | 0.017241Ωmm²/m |
Ultimate Tensile Strength | 22 – 30 kg/mm² |
Primary Insulation Colour | Transparent / Natural |
High quality
Our company provides free samples.
High quality
Welcome to our company to visit and inspect the factory.
High quality
Our company can provide high quality quotation for customers' reference. Our company can provide non-national standard line number.
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
1. Different size spools
2. Prevent bumping sponge paper
3. Thickened carton
4. Wooden tray that does not require fumigation
5.Fixed container
6. Our products
Favorable Comment
Brazilian friends came to our company to visit, visit our laboratory and praised the quality of our company's products.
Favorable Comment
Italian friends came to visit our factory, visited our workshops and laboratories, and praised our on-site management and product inspection.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
