SGS Certification Class 155 180 200 Enamelled Round Copper Wire as per IEC 60317

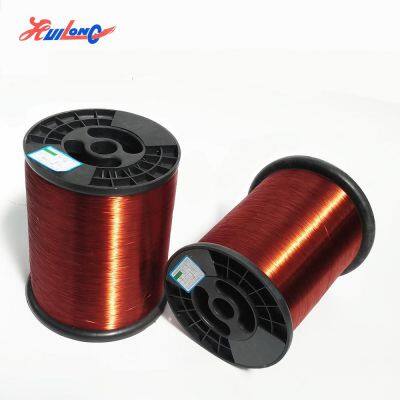

SGS Certification Class 155 180 200 Enamelled Round Copper Wire as per IEC 60317 photo-1
SGS Certification Class 155 180 200 Enamelled Round Copper Wire as per IEC 60317 photo-2

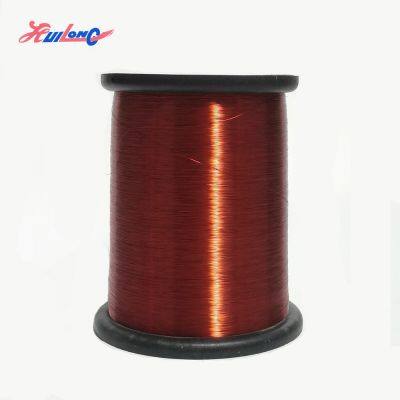

SGS Certification Class 155 180 200 Enamelled Round Copper Wire as per IEC 60317 photo-3
SGS Certification Class 155 180 200 Enamelled Round Copper Wire as per IEC 60317 photo-4

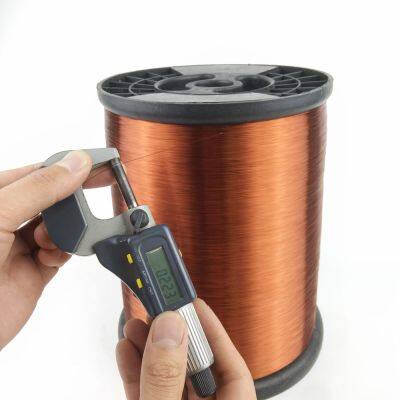

SGS Certification Class 155 180 200 Enamelled Round Copper Wire as per IEC 60317 photo-5
SGS Certification Class 155 180 200 Enamelled Round Copper Wire as per IEC 60317 photo-6
US$ 5.8 - 10.2 MOQ: 1 Kilogram
Key Specifications
Get Latest Price
Type:
Insulated
Insulation Material:
Polyesterimide/Polyamidimide
Conductor Material:
Copper
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Type Insulated
Conductor Material Copper
Conductor Type Solid
Model Number EI/AIW 180 200
Brand Name yongdong
Place of Origin Shandong, China
Product name enameled copper wire
Color Brown
Conductor copper
Insulation Polyesterimide/Polyamidimide
Material 99.9% Pure Copper
Standard IEC NEMA GB JIS
Rated Voltage >5000v
Name Copper Magnet Wire
Packing Carton
Product Description

1. Grade: Polyamideimide 130/155/180/200

2. SizeAWG  gauge magnet wire

3. Standard: IEC NEMA JIS GB

4. Certification: ISO9001, SGS, ULE234565, ROHS

What is an enameled wire?
The conductor (copper/aluminum) is deformed by stretching to form a corresponding specification, and the conductor is coated with an insulated wire made of insulating material. Used for motor transformer coils.
Product Name
130 class copper wire , windings using Enameled copper Wire
Material
Copper rod
Color
brown
Standard
GB IEC JIS NEMA
Grade
130/155/180/200/220
Insulating paint
Polyester/Polyurethane/Polyamideimide
Used
Micro motor, micro transformer,electromagnetic coil, transformer, motor, reactor
Applications
Suitable for automated soldering equipment used for production/manufacturing of small motors, transformers, relays and magnet coils.
Insulation Coatings
Polyurethane 180
Elongation
>30%
Springiness
<50
Resistance to Abrasion
>67.75N
Breakdown Voltage
5KV
Temperature Index
180
Cut through
2min ≥ 230°C
Heat Shock
1d, 1/2 h ≥ 200°C
Solderability
 390°
Electrical Resistivity @ 20°C
0.017241Ωmm²/m
Ultimate Tensile Strength
22 – 30 kg/mm²
Primary Insulation Colour
Transparent / Natural
Products Show
Our Service

High quality

Our company provides free samples.

High quality

Welcome to our company to visit and inspect the factory.

High quality

Our company can provide high quality quotation for customers' reference. Our company can provide non-national standard line number.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details  : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

1. Different size spools
2. Prevent bumping sponge paper
3. Thickened carton
4. Wooden tray that does not require fumigation
5.Fixed container
6. Our products
Our Certifications
Customer Photo

Favorable Comment

Brazilian friends came to our company to visit, visit our laboratory and praised the quality of our company's products.

Favorable Comment

Italian friends came to visit our factory, visited our workshops and laboratories, and praised our on-site management and product inspection.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
